• Model NO.：TU312 Mixer
• Certification：Msha
• Condition：New
• Color：White
• Transport Package：Container
• Specification：4~6 cube
• Trademark：TMG
• Origin：Qingdao
• Production Capacity：200 Units,Year

Basic Info.

Model NO. TU312 Mixer Certification Msha Condition New Color White Transport Package Container Specification 4~6 cube Trademark TMG Origin Qingdao Production Capacity 200 Units/Year

Product Description

1. Main Configuration:

Engine:

1. 1. 1. 1. Manufacturer:  DEUTZ
         2. Model:  BF6L914
         3. Type:  Air-cooled Diesel
         4. Rated Power:  112KW/2300RPM
         5. Max Torque:  550NM@ 1600RPM


Converter:

1. 1. 1. 1. Manufacturer:  CLARK
         2. Model:  C273
         3. Type:  Single-stage, two elements, hydraulic pump drive

Transmission:

1. 1. 1. 1. Manufacturer:  CLARK
         2. Model:   RT32000
         3. Type:  Power shift
         4. Gear:  3 gears ( forward 3, reverse 3)

Axles:

1. 1. 1. 1.
         2. Type:  Rigid planetary axle

Brake System:

1. 1. 1. 1. Service brake:  Full hydraulic wet multi-disc on each wheel, spring brake, hydraulic release
         2. Park brake:  Controlled by park brake button in cabin
         3. Emergency brake:  has the same theory as park brake; difference is when it's applied, a solenoid valve will work and make the engine stop.

Hydraulic System:

1. 1. 1. 1. Type:  Servicing system, steering system
         2. Memo:  all main elements are imported, such as pumps, valves, replenishing valve etc.

Mixer  Parameter:

Model	Agitator drum transmission capacity	Agitator drum geometrical capacity	Stowage	Feeding speed	Discharge speed
HXYJG-3	3cube	4.5cube	67%	≥3cube/min	≥1cube/min
Discharge waste	Agitator rotating speed	Feeding height	Min discharge height	Axial ray angle of inclination	Overall dimension
≤1%	0-12r/min	3.2m	1m	16±0.5°	3.9*1.7*2.4

3. Main Technical Parameters:


Full loading speed (km/h)	1 gear: 5.8;  2 gear: 11.1;  3gear: 28
Max Traction	120 KN
Max admissible gradient	15°
Service brake	Posi-stop, hydraulic release
Park brake	Park brake button
Emergency brake	Park brake button, together with a solenoid valve
Tyre	12.00 x 24-28PLY
Tyre inflation pressure
Steering angle	±40°
Max systematic pressure	21Mpa
Fuel tank volume	212 L
Exhaust purifier	Platinum catalysis
Ground clearance	285mm
Inner turnng radius	3450±150mm
Out turning radius	7850±150mm

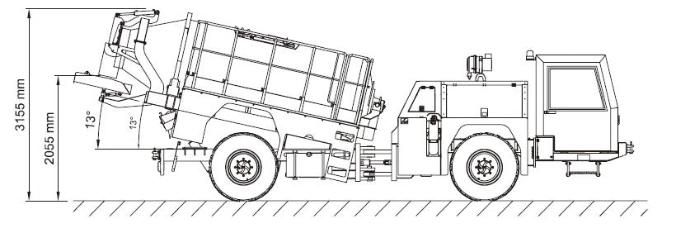

Dump height	3200mm
Dump angle	15°
Front axle swing angle	± 8°
Trackwidth	1533mm
Wheelbase	4100mm
Working voltage	24 V

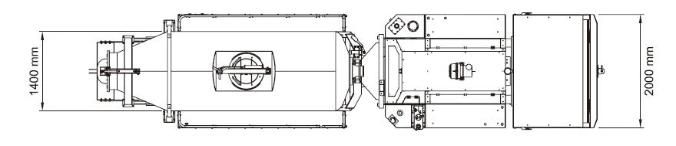

Overall dimension	L: 7411mm; W: 1840~2200mm; H: 2269mm
Weight:	13000KGS
