• Transport Package：in Pallet
• Trademark：UT
• Origin：China

Basic Info.

Transport Package in Pallet Trademark UT Origin China

Product Description

Features :

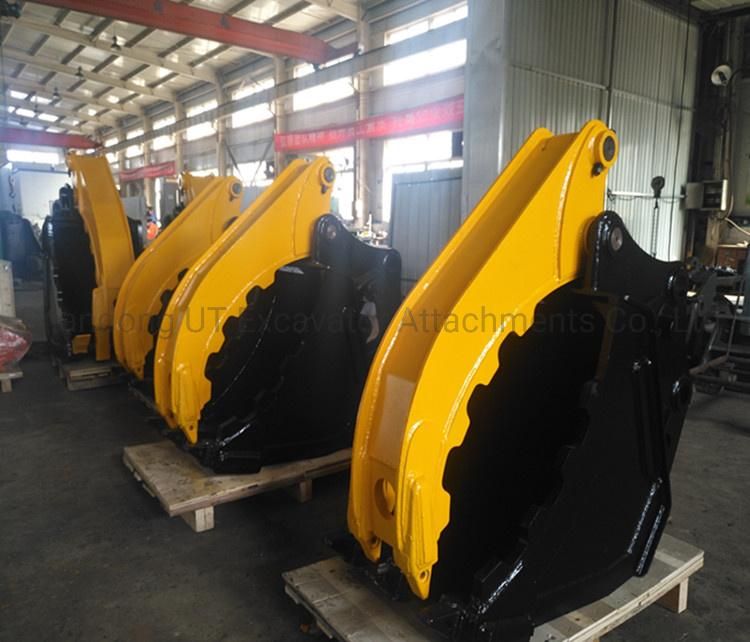

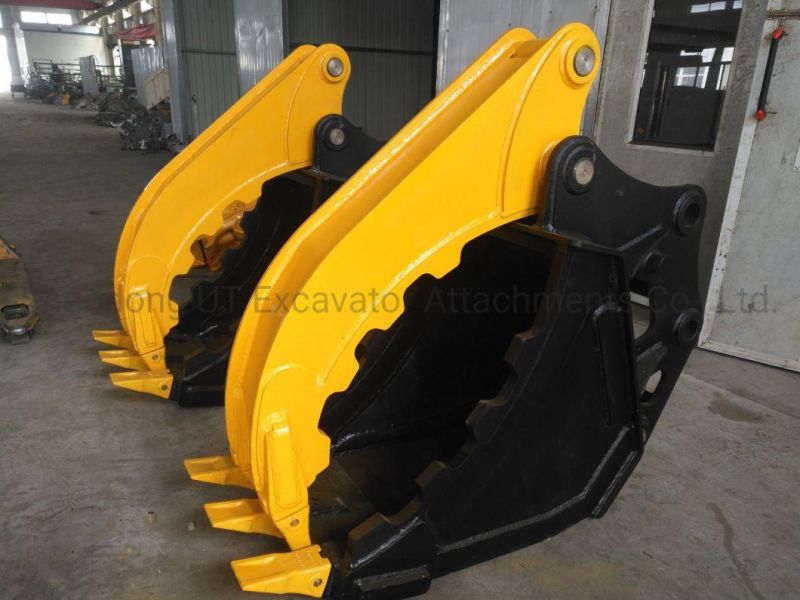

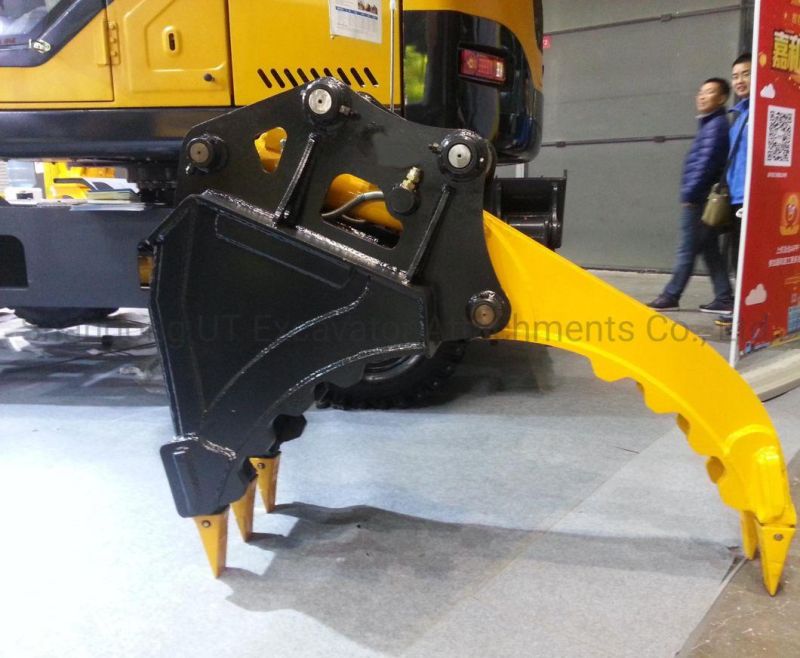

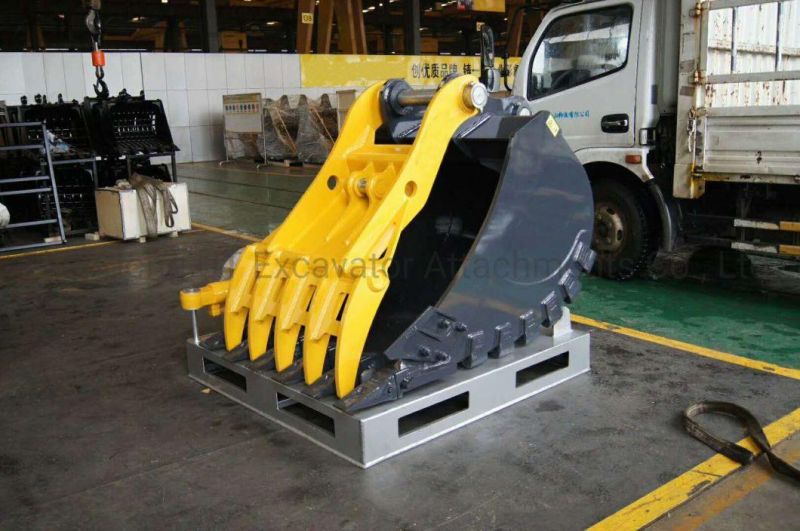

1.The first generation multifunction bucket clamp is developed based on the bucket. It can be installed in excavator of 1.2-40 tons. The operator can have flexible choices
,1.2~40,
2. With all functions of bucket, it can load/unload and delivery shrub, wood, stone, waste, iron tools and pipe
3.The cylinder is equipped with non-return valve, more safety for grabbing
4.One machine has multiple applications and higher efficiency
5.Big cylinder is used to make sure strong clamping power



Item/Model/	Unit	UT-FGB02	UT-HGB03	UT-HGB04	UT-HGB06	UT-HGB08	UT-HGB10	UT-HGB17	UT-HGB20
Weight	kg	110	260	290	690	1190	1780	2100	2400
Max jaw opening	Mm	827	1300	1400	1800	2300	2500	2500	2700
Oil Pressure	Kg/cm2	100-130	110-140	120-160	150-170	160-180	160-180	180-200	180-200
Set up pressure	Kg/cm2	157	170	180	190	200	210	220	250
Operating Flux	L/Min	15-40	30-55	50-100	90-110	100-140	130-170	180-250	250-320
Cylinder volume	L	4	5.4	5.4	8.2	10	12	14	15
Suitable Excavator	Ton	2-3	4-6	7-11	12-16	17-23	24-30	31-40	41-50

, ,.
The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
