Rock Hammer for 30-40 Ton Excavator

Yantai Wangyuan Hydraulic Co., Ltd.
  • Transport Package:Processed Wooden Package
  • Origin:China

Base Info

  • Model NO.:SB130
  • HS Code:8412210090
  • Production Capacity:50000 Sets Per Year

Description

Basic Info.

Model NO. SB130 HS Code 8412210090 Production Capacity 50000 Sets Per Year

Product Description

 STB/WYB Hydraulic Breaker Features:

• Available for 0.8 - 55 Ton any brand excavators.

• Simplicity in construction, easy to use and maintain

• Most advanced processing equipment and technology

• One to two-year warranty

• Long service life

• 24 hours online after-sales service
•  Application

   Mining------------Mining,Second-time breaking
   Metallurgy-------Clearing slag,Demolition of furnace and foundation

   Road------------- Repairing,Breaking,Foundation work(asphalt road)
   Railway----------Tunneling,Demolition of bridge
   Construction----Demolition of building and reinforced concrete
   Ship repairing--Clearing clam and rust from the hull
   Others----------- Breaking frozen mud


Hydraulic Rock Breaker Types:

Generally,we have 3 types of hydraulic breaker, side type installation rock breakers, top type installation hydraulic rock breaker and silent type rock breaker.Please choose the type you like, we'll try to meet all of your requirements.

Side Type Breaker

1.Reducing total-length
2.More easier to handle
   the breaking objects
3. low maintenance.

   Top Type Breaker

   1.Easy-operating to achieve excavation work
   2.Without side weight, reducing the rate of chisel breakage
   3.longer total-length and heavier total-weight.

     Silence Box Type Breaker

     1.Low noise level
     2.Full-closed bracket protects
         main body from damage.

Our breaker can be customized to fit varisized excavators, pls contact us for the more information.

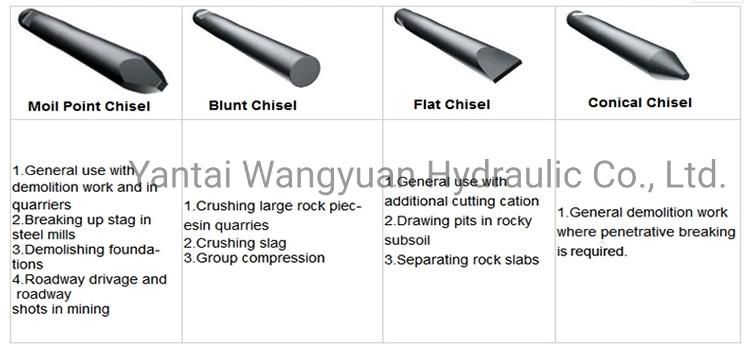

How To Choose Suitable Chisel:

Rock Hammer for 30-40 Ton Excavator

What is the difference among side type,box type and top type rock breakers?
For Side type, the installation pins are on the side of the breaker.
For Top type , the installation pins are on the top of the rock breaker.
And for box type, the rock breaker bracket is full sealed like a box,and it equiped with rubber cushion inside of the bracket to keep lower noise. So it is also called silence type rock breaker.The installation pins are also on the top for silent type rock breaker, same as top type installation way on the excavtors. Both side type and top type breakers are with opening bracket, which is easy for maintenance and parts exchanging. But for box type rock breaker, it has to open the box and move out the main body to do maintenance job.

How is the quality?

We are offering OEM service for some famous brands from Italy, Germany,Turkey .South Korea etc.who are selling our hydraulic breakers with their brands all over the world.

How is the price?
Factory direct price, Not the lowest,but reasonable and acceptable,so we are manufacturing and selling and shipping in a very large quantity .
You are welcome to visit our grand factory.


Rock Hammer for 30-40 Ton Excavator

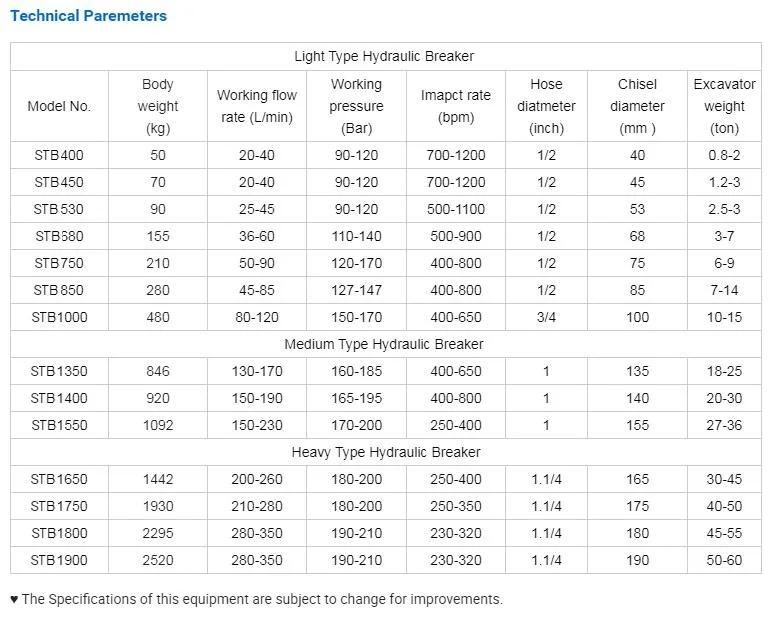

Technology Parameters:

1) SB series hydraulic hammers

Rock Hammer for 30-40 Ton Excavator
2)Furukawa HB series hydraulic hammers

Model No.Chisel diameterWeight(kg)Working flow(l/min)Impact rate(bmp)Hose diameter(inch)TonsApplicabel excavator
HB20G135mm20001250-150400-800118-25any brand
HB30G150mm2800150-190300-750125-30any brand
HB40G160mm3500190-250250-5005/435-45any brand

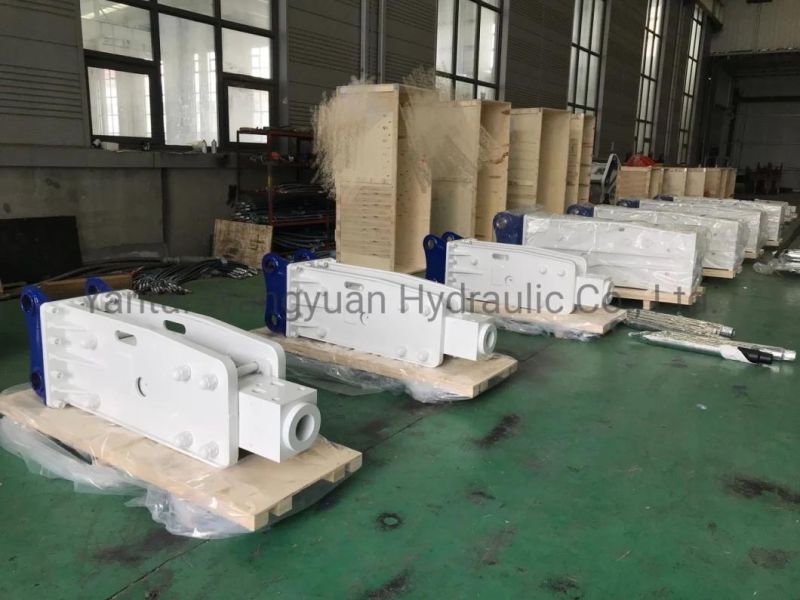

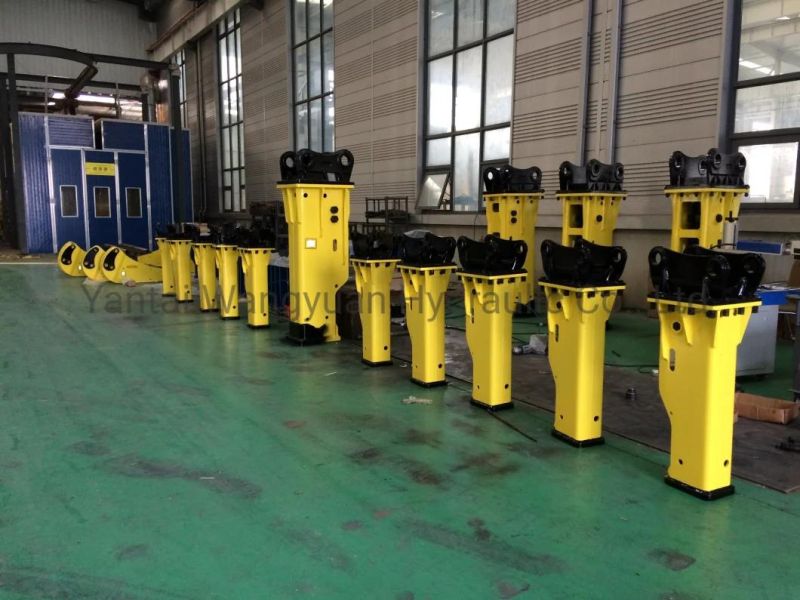

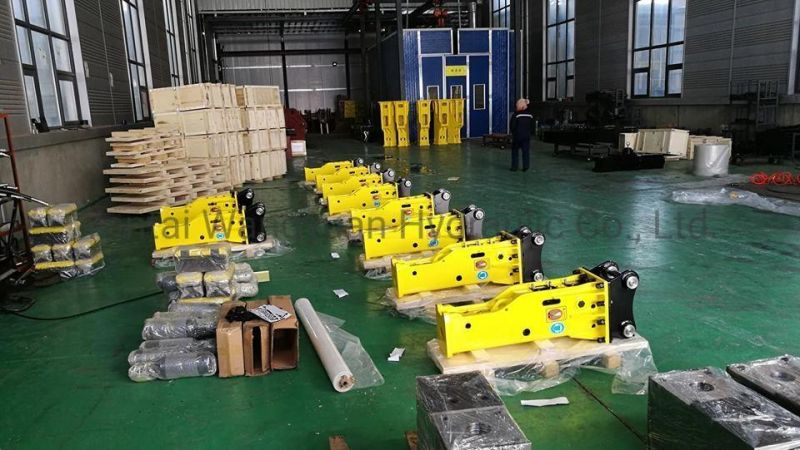

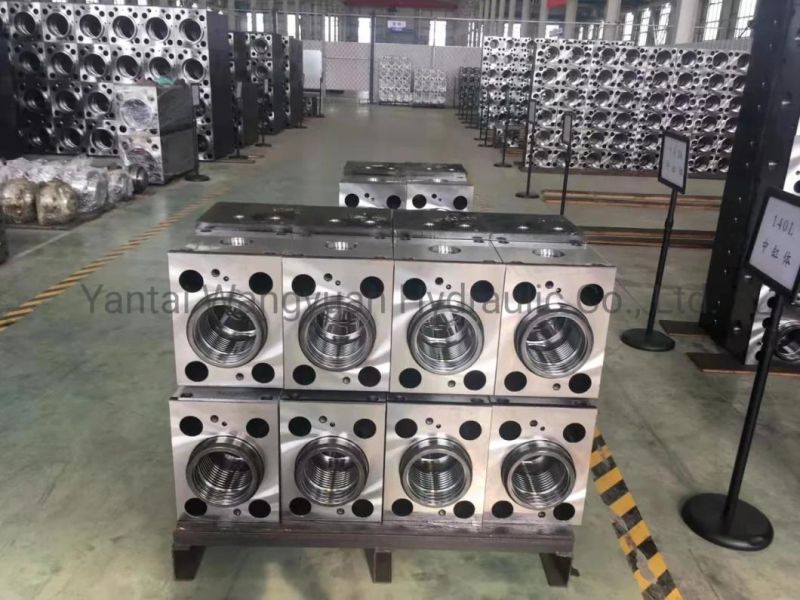

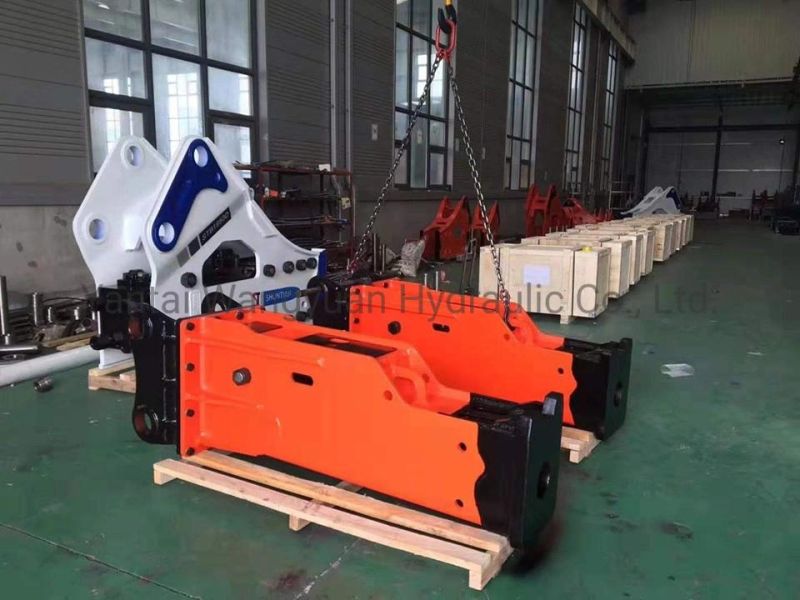

PICTURES

Rock Hammer for 30-40 Ton Excavator
Rock Hammer for 30-40 Ton Excavator
Rock Hammer for 30-40 Ton ExcavatorRock Hammer for 30-40 Ton ExcavatorRock Hammer for 30-40 Ton Excavator

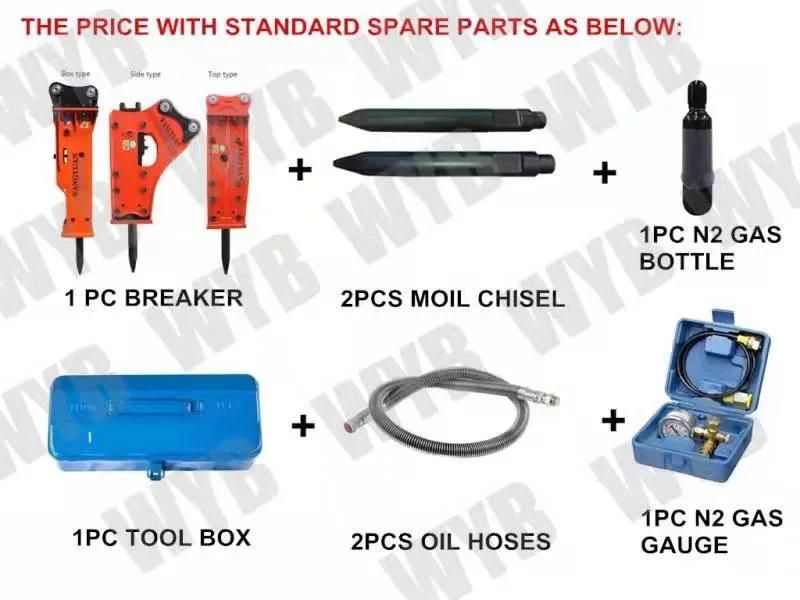

What accessories come together with the hydraulic breaker?
1). 2 pcs in/out hydraulic hoses
2). 2 pcs moil type chisel tools.(Using 42crmo good material, 2-3 times longer life than normal)
3). 1 pc nitrogen gas bottle.
4). 1 sets nitrogen charge guage kits.
5). 1 set tool box.(including the maintenance tool)
6). 1 set product brochure,hydraulic breaker manual book and parts book

ALL THE PRICE WITH SPARE PARTS ABOVE

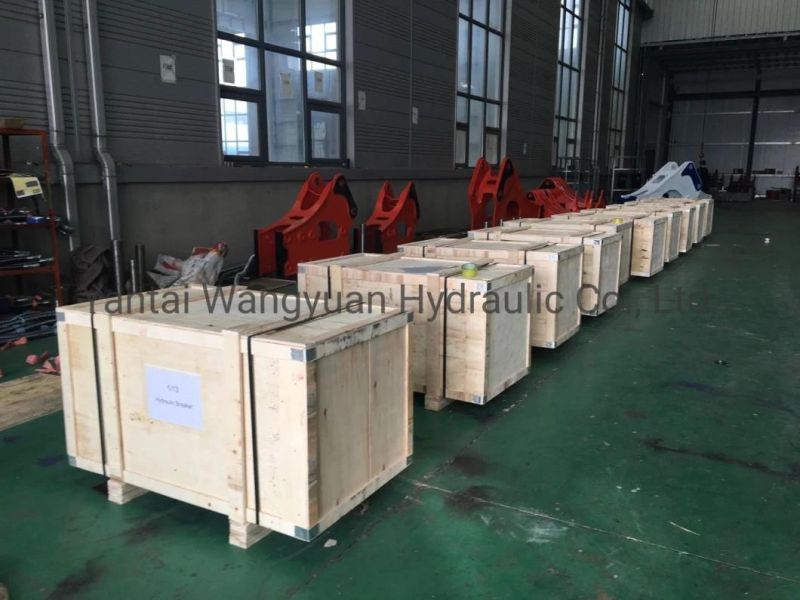

Packing and delivery time
1)Inner is stretch film or breaker coat, outside is export wooden case or pallets as customer's request
2).Delivery time:Usually 3-7days (1-5sets) after down payment and drawing confirmation.
3).We can arrange ocean or air transportation according to your request from any port of China.

Rock Hammer for 30-40 Ton Excavator
HOW TO CHOOSE OUR BREAKER ?
1. PLEASE LET US KNOW YOUR EXCAVATOR MODEL NUMBER OR WEIGHT OF MACHINE.
2.PLEASE LET US KNOW WHAT COLOR DO YOU NEED FOR BREAKER .

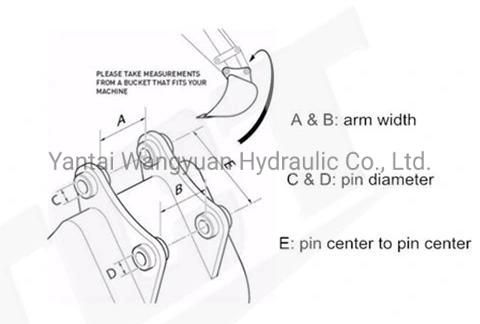

3.PLEASE CHECK THE" A B C D E "SIZE AS FOLLOWING FOR US:ARM EAR WIDTH ,PIN DIAMETER AND PIN CENTER TO PIN CENTER SIZE .Rock Hammer for 30-40 Ton Excavator

How to install the breaker to excavators?
If you want to install hydraulic breaker to your excavator, you need to check some dimensions of your excavator. We will make the breaker dimensions matching to your excavators, so that you can install immediately while you get the breaker from us.
Please check the above dimensions in the picture. Pin Hole Diameters: C D ;Arm and Link Width: A B ;
Note: To most of excavators A=B, C=D but some excavators or backhoes have different A,B,C,D If you want to add quick coupler to exchange the attachments quickly.You aslo need to check the pins distance too.Please check the above picture.
Pins Distance E.



FAQ:
1. Do you offer hydraulic breaker repair or rebuilding service?
Yes, We can offer above service including the special parts producing and supplying.


2.What is your hydraulic breaker price?
Please contact us for quotations, but generally our price is very competitive than you get locally.Quality and material depend on the price.Any price we could do for our factory,but we suggest best one .

3.Can we be your reseller in our area?
Yes, we are recuriting dealers in your area. you can buy our hydraulic breaker for sale.

4.Do you have hydraulic breaker for skid steer loaders?

Yes, we have hydraulic breaker for varisized machine, like mini excavators, medium and heavy excavators, mini diggers, skid steer loaders,backhoes and wheel loaders too.

5.Do you have concrete breaker?
Yes, we have concrete hydraulic breaker for sale


6.How long it can work for its whole life?
It depends on the objects material and the frequency it was used. Genrally speaking it won't have problem within 10 years except the wearing parts changing.
