• Model NO.：JBC35
• Vibrating Amplitude：2.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Blue
• Transport Package：Nude
• Specification：8225x3016x3515
• Trademark：Oriemac
• Origin：China
• Production Capacity：350units,Month

Basic Info.

Model NO. JBC35 Vibrating Amplitude 2.0mm Certification ISO9001: 2000, CE Condition New Color Blue Transport Package Nude Specification 8225x3016x3515 Trademark Oriemac Origin China Production Capacity 350units/Month

Product Description

High Quality Hot Sale 3.5cbm Self Load Concrete Mixer JBC35
Contact Person: Vicky Zhu

Product Specifications

IESEL ENGINE

Model: YCD4J22G
Total displacement, no Cylinders: 4330cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 85Kw(116Hp)
Max. torque: 390Nm@2800rpm

ELECTRIC SYSTEM

Alternator:28V--1500Wa  (53.5A)
Battery: 2×12V--100AH (453A)
Road light system, rear working lights.

STEERING

Articulated Steering by two cylinders move alternately.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".

4X4 FOUR-WHEEL DRIVE

hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears               2 reverse gears
       Ist 0 - 7.0 Km/h               0 - 7.0 Km/h
       IInd 7-20 Km/h               7 - 20 Km/h

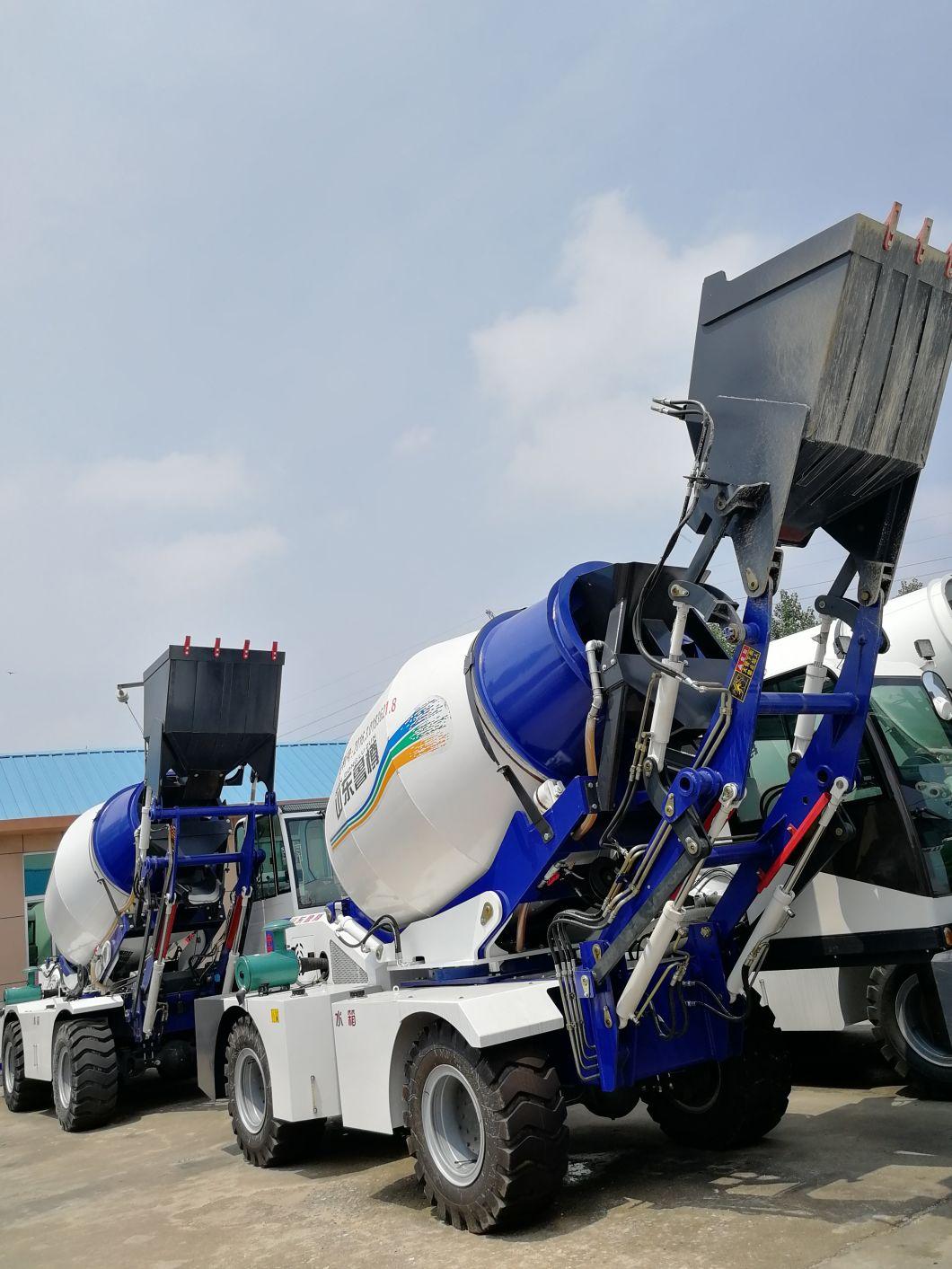

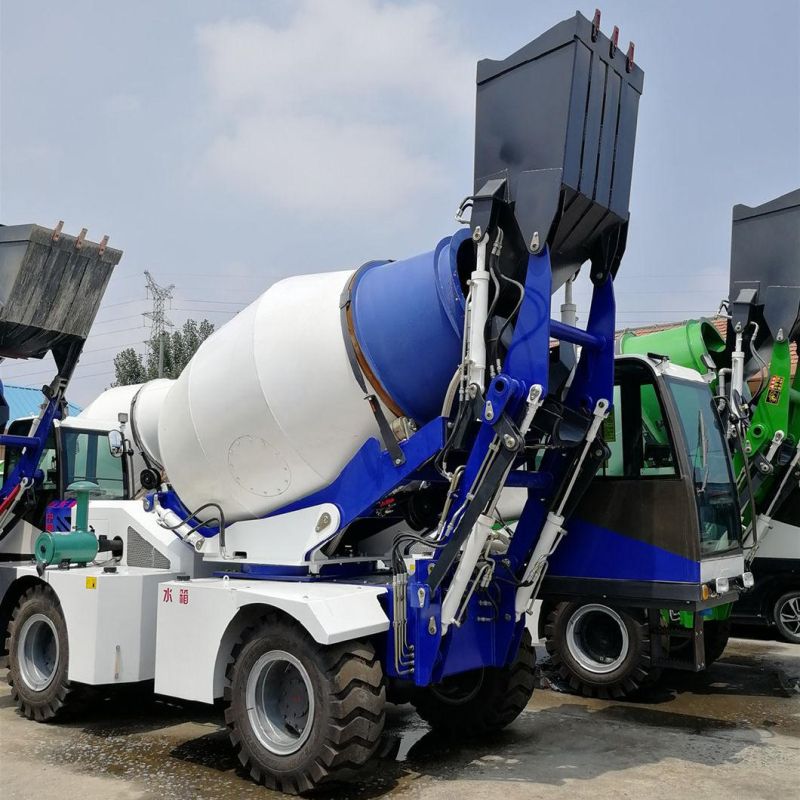

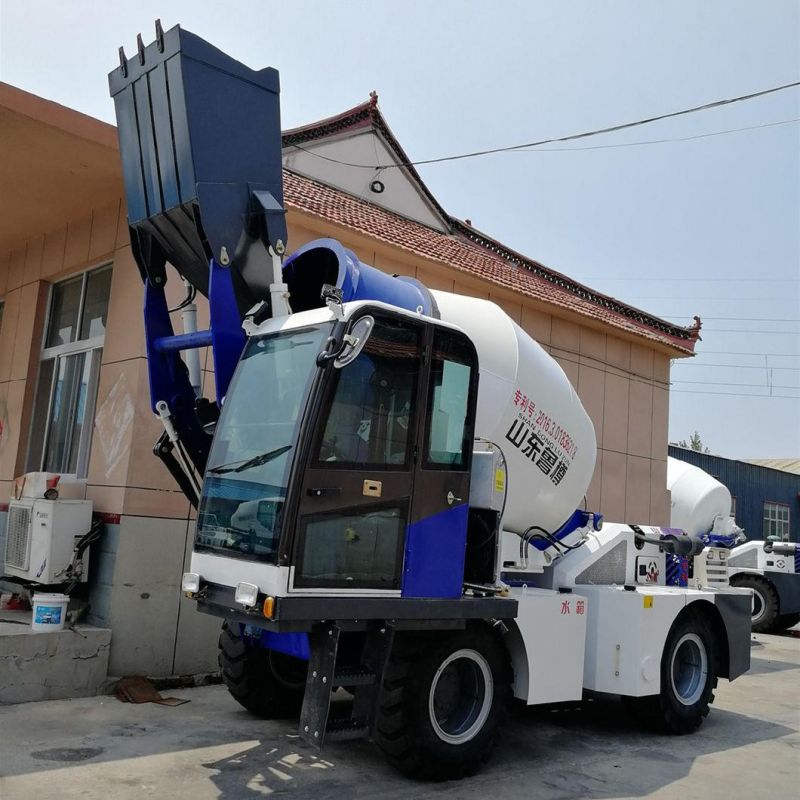

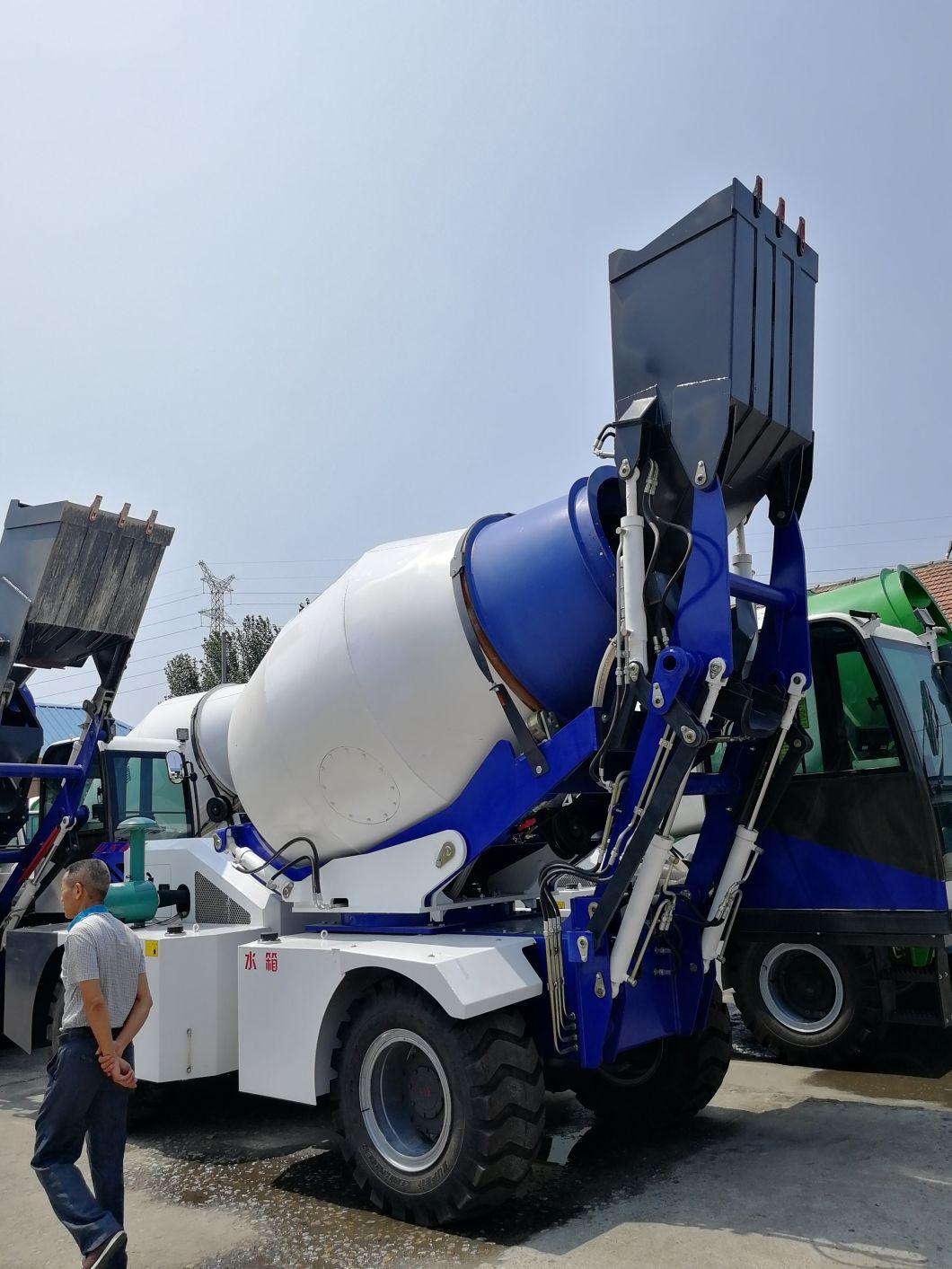

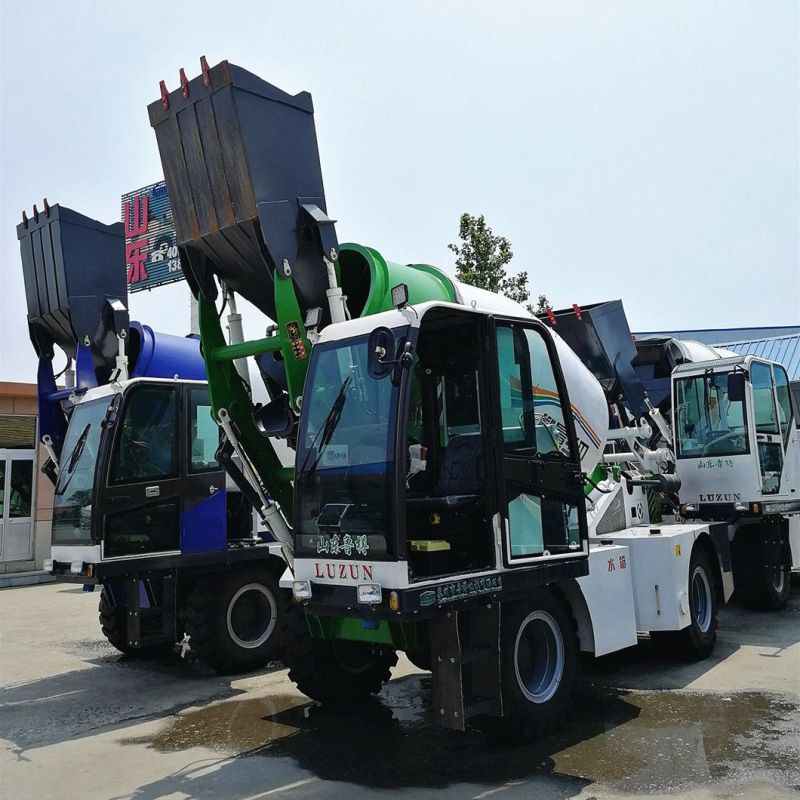

Product Show
