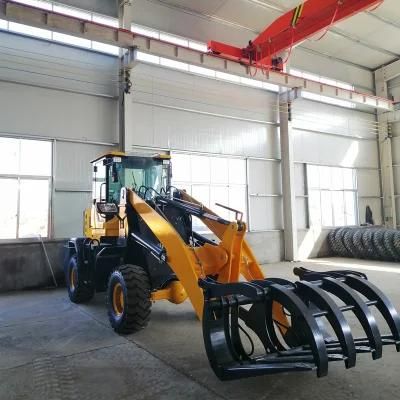

• Model NO.：Yn926g Zl20 2 Ton Wheel Loader 1.1CBM
• Bucket Capacity：1.1m3
• Dumping Height：2750mm
• Max. Breakout Force：55kn
• Max. Drawing Force：45kn
• Rated Power：60kw,2400rpm
• Tyre：16,17-20
• Overall Dimensions：5880× 2060× 2750
• Operating Weight：6000kg
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Color：Yellow
• Engine Power：60kw
• Transport Package：1 Piece Disassembled, Naked Within 1 X 20gp Contai
• Specification：CE approved
• Trademark：YN series
• Origin：Shandong Yineng Heavy Industry Co., Ltd
• HS Code：84295400
• Production Capacity：3000PCS Every Year

Basic Info.

Model NO. Yn926g Zl20 2 Ton Wheel Loader 1.1CBM Bucket Capacity 1.1m3 Dumping Height 2750mm Max. Breakout Force 55kn Max. Drawing Force 45kn Rated Power 60kw/2400rpm Tyre 16/17-20 Overall Dimensions 5880× 2060× 2750 Operating Weight 6000kg Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Color Yellow Engine Power 60kw Transport Package 1 Piece Disassembled, Naked Within 1 X 20gp Contai Specification CE approved Trademark YN series Origin Shandong Yineng Heavy Industry Co., Ltd HS Code 84295400 Production Capacity 3000PCS Every Year

Product Description

FEATURES:
YTO diesel engine is adopted, with strong power.
Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.
Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24° Awl and O ring of international standard, avoiding oil leakage;
Load sensing fully hydraulic steering system makes operation easy.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically leveling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.

OPTIONAL:
Original Cummins engine.
(Model: B3.3TAA-C80, Euro III emission)
Cummins engine
(Model 4BTA3.9-C100, from Dongfeng Cummins Co. )
Lovol Engine, with Perkins Technology
(Model: 1004-4L06, From Tianjin Lovol Engine Co. )
Electric controlled gear-shift.
Air Condition
Joystick
Quick Hitch (Fork)
ROPS Cabin

CE Approved.
Obtained the certificate of ISO9001: 2000;
Manufacturing license number: TS2510025-2009.

Item	Specifications	Item	Specifications
Bucket capacity	1.1 m 3	Min. turning radius (outside of rear wheels)	4600mm
Rated load	2000 kg	Steering angle	Each direction 35º
Dumping height	2750 mm	Min. ground clearance	320mm
Dumping reach	920 mm	Wheel base	2350mm
Boom lifting time	5 S	Tread	1500mm
Total cycling time	9 S	Engine model	YTO LR4018G
Max. speed	25km/h	Rated power	60kW/2400rpm
Max. breakout force	55 kN	Tyre	16/70-20
Max. drawing force	45 kN	Overall dimensions	5880*2060*2750mm
Max. Gradeability	30°	Operating weight	6000kg
