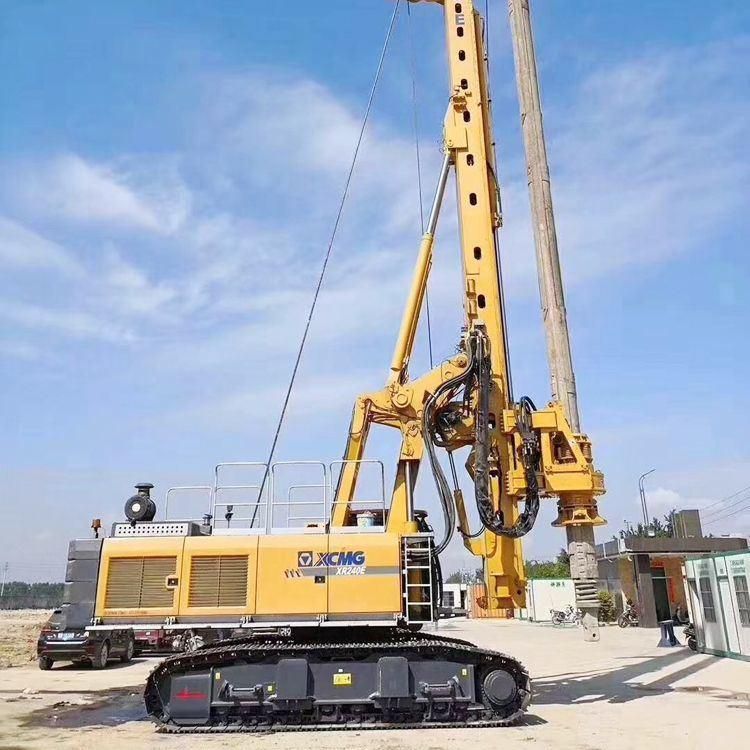

220kn Rotary Drilling Rig Hydraulic Drill Machine (XR220DII)
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Provided
- Warranty：Provided
- Type：Drill
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
Base Info
- Model NO.：XR220DII
- Motor Power：150kw
- Noise：Without Noise
- Certification：CE, ISO 9001:2000
- Condition：New
- Transport Package：Seaworthy Packing
- Specification：CE, ISO
- Trademark：EVANGEL
- Origin：China
- HS Code：8430509000
- Production Capacity：20sets, Month
Description
EngineModel Rated Power Rotary Dvive Max. output torque Rotary speed Max. Drilling Diameter With casing Without casing Max. Drilling Depth Pull-Down Cylinder Max. pull-down piston push Max. pull-down piston pull Max. pull-down piston stroke Main Winch Max. pulling force Max. pulling speed Auxiliary Winch Max. pulling force Max. pulling speed Mast Rake Side/forwards/backwards Undercarrige Max. traveling speed Max. grade ability Min. Clearance Track shoe width Distance between tracks Hydraulic Systerm Working pressue Overall Drilling Weight Dimension Working condition Transportation condition
CUMINS M11-C330
KW/rpm
246/2100
kN·m
220
r/min
7~22
mm
1500
mm
2000
m
65,52
KN
180
KN
180
m
5.0
KN
200
m/min
≥65
KN
80
m/min
≥60
±8°/5°/15°
KM/h
1.5
%
40
mm
468
mm
800
mm
3500~4400
Mpa
32
t
70
mm
10200×4400×21700
mm
16120×3500×3378
