Vibratory Concrete Frame Truss Screed with Honda Engine
Ningbo Max Machinery Co., Ltd.- Type：Concrete Finishing Machine
- Shotcrete Type：Semi-Dry
- Machining Process：Welded Molding Machine
- Structure：Cylinder Type
- Productivity：180m²,h
- Feeding Height：1400mm
Base Info
- Vibrating Amplitude：1.4mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Stainless Steel
- Blade Length：3meter -18meter
- Vibrating Frequency Vpm：5500rmp
- Engine Type：Honda Gasoline
- Transport Package：Carton
- Specification：0.14 cbm
- Trademark：MAXMACH
- Origin：Ningbo, China
- HS Code：8430610000
- Production Capacity：1000sets Per Month
Description
Model
STS-600
Power section
STS30
Length (m
3.1
Beam width (mm)
355
Height(mm)
475
Weight (kg)
92
Engine type
Honda GX270
Max. output (kw)
7
Max. speed (rpm)
3600
Fuel Tank ( liter )
2.9(4.0) 3.0(4.0)
Max. speed ( rpm)
3600 3600
Fuel Tank ( liter )
6
Center section
HC 15
Length (m)
1.5
Beam width (mm)
355
Height (mm)
475
Weight ( kg)
26
End section
HE 15
Length (m)
1.5
Beam width (mm)
355
Height (mm)
475
Weight ( kg)
30

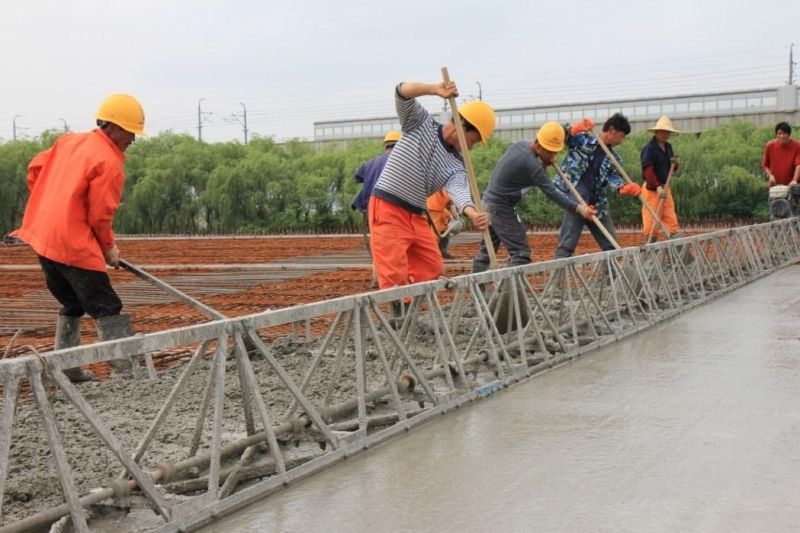

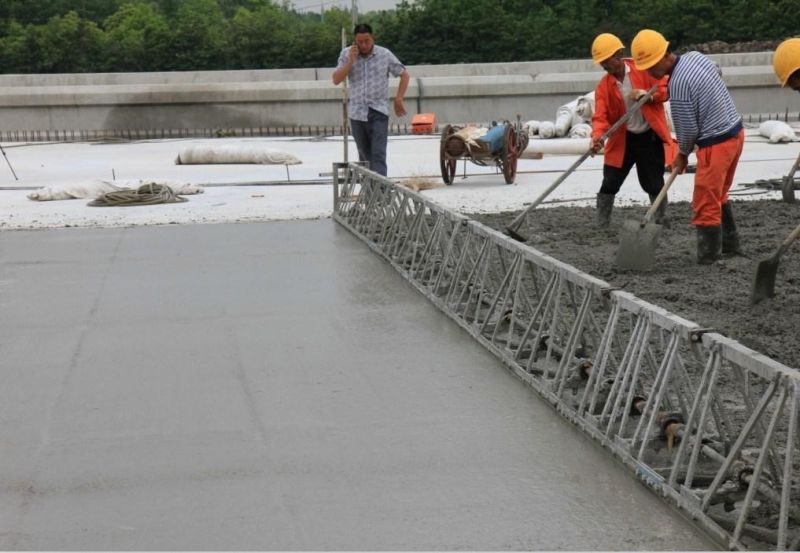

3. Products Show
