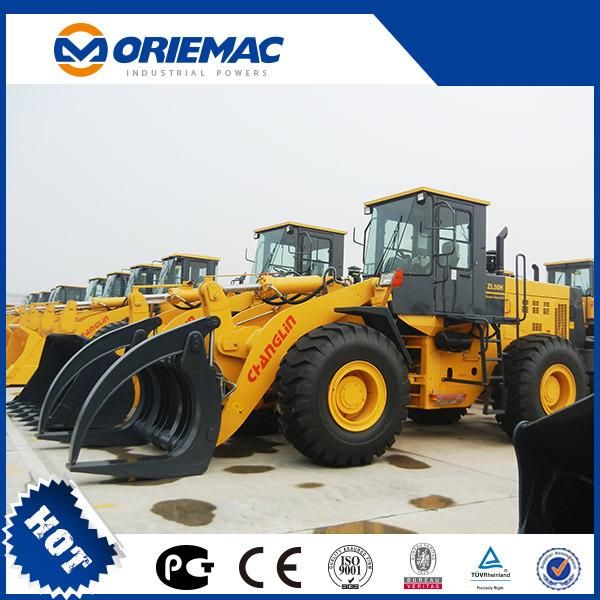

Changlin Wheel Loader 957h 5ton Front End Wheel Loader in Stock
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification:TUV, UL, ISO, RoHS, CE, ISO9001: 2000
- Condition:New
- Rated Load:3-6t
- Transmission:Hydraulic
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
Base Info
- Model NO.:957H
- Type:Medium-sized Loader
- Usage:Universal Type
- Scraper Type:Pull Scraper
- Load and Unload Method:Front Discharge
- Engine Power:74~147kw
- Color:Yellow
- Transport Package:Nude Package
- Specification:CE, ISO, GHOST
- Trademark:Changlin
- Origin:Jiangsu, China
- HS Code:84295100
- Production Capacity:5000sets, Month
Description
Overall Dimension
1
Length(with bucket on ground)
8130(mm)
2
Width(to outside of wheels)
2800(mm)
3
Bucket width
2946(mm)
4
Height(To the top of the cab)
3450(mm)
5
Wheel base
3200(mm)
6
Tread
2200(mm)
7
Min. ground clearance
450(mm)
Main Technical Specification
1
Rated load
5000(Kg)
2
Operating weight
16700KG
3
Rated bucket capacity
3.0(m 160kN
5
Max. traction force
150kN
6
Max. dump clearance
3100(mm)
7
Dump reach
1150(mm)
8
Dump angle at any position
≥45 Digging depth(with bucket bottom horizontal)
165(mm)
10
Min. turning radius
(1) Outside of bucket
6735(mm)
(2) Outside of front wheel
6098(mm)
11
Pivot angle frame
380
12
Oscillating angle of rear axle
+13 ≤5.6(sec.)
14
Lowering time of bucket
≤3.7(sec.)
15
Dumping time
≤1.7(sec.)
16
Traveling speed(Km/h),3 forward and 3 reverse
(1) 1st gear
7.05/9.0
(2) 2nd gear
11.7/16.0
(3) 3rd gear
34.6/38.24
Diesel engine
1
Model
ShangChai SC11CB220G2B1
2
Type
Direct injection. Turbocharge. Water cooling
3
Rated output
162(Kw)
4
Inter-bore of cylinder/stroke
121/152(mm)
5
Total exhaust of cylinder
10.5(L)
6
Model of starting motor
KB-24V
7
Power of start motor
7.5(KW)
8
Voltage of starting motor
24(V)
9
Rated speed
2200(r/min.)
10
Max. Torque
843±6%(N.m)/(1400r/min)
11
Starting type
Electric
12
Min. specific fuel consumption
230(g/Kw.h)
13
Engine specific oil consumption
0.95-1.77(g/Kw.h)
14
Net weight
960(Kg)
