Product Description

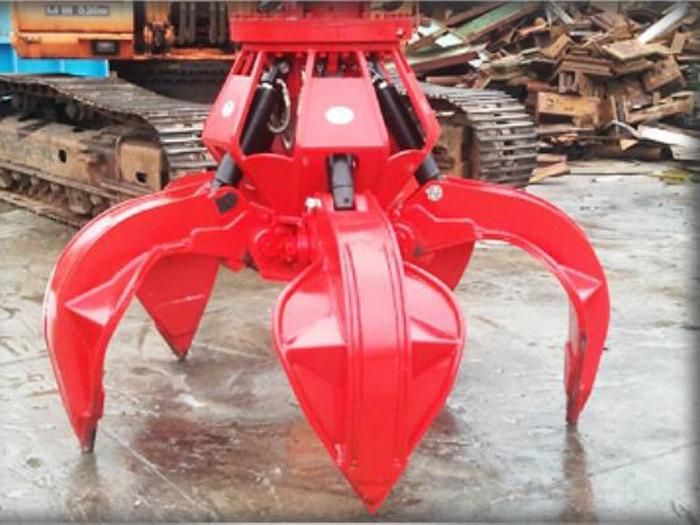

Orange Peel Grapple

Features :
1.Special steel material with high ductility and high resistance
2.Imported balance valve motor with buffering and braking kinetic energy
3.The cylinder is equipped with non-return valve, more safety for grabbing
4.High strength rotating support device, the operator can manipulates the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise
5.With soft tube in the high pressure cylinder, the soft tube is under protection
6.The product can also be designed with no swinging rotation in accordance with customers' different requirements
7.Widely used in sand plant, stone-crushing plant, dock, industries like renewable resources and coal recycle, auto decomposition and waste transfer.
8.It can be installed in excavator. One machine has multiple applications and higher efficiency.



Item/Model /	Unit	UTOPG04	UTOPG06	UTOPG08	UTOPG10
Weight	kg	510	1200	1560	1800
Max jaw opening	mm	1750	1780	1950	2180
Height of closed grapple	mm	1440	1540	1650	1860
Set up pressure	bar	260	260	260	260
Operating flux	lpm	20-70	60-120	60-120	60-120
Cylinder volume	litre	400	600	800	1000
No.of jaw	piece	5-6	5-6	5-6	5-6
Suitable excavator	ton	5-11	12-18	18-25	26-35

The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
