China New Small Digger 6 Ton Mini Crawler Excavator
Shanding Machinery (Shandong) Group Co., Ltd.- After-sales Service：Have
- Warranty：1 Year
- Type：Wheel Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：SD90W-9T
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Mode：Steering Wheel
- Operating Weight：9000kg
- Bucket Capacity：0.5cbm
- Bucket Width：700mm (Any Size Can Be Customized)
- Valve：Eaton Cmj8jb4n400c ( USA )
- Walking Motor：Jk Is0291900 (Germany)
- Cylinder：Four Cylinder, Water Cooling
- Walking Speed：35km,H
- Transport Package：Wooden Packing
- Specification：5880kg
- Trademark：SHANDING
- Origin：Shandong, China
- HS Code：8429521100
- Production Capacity：10pieces Per Week
Description

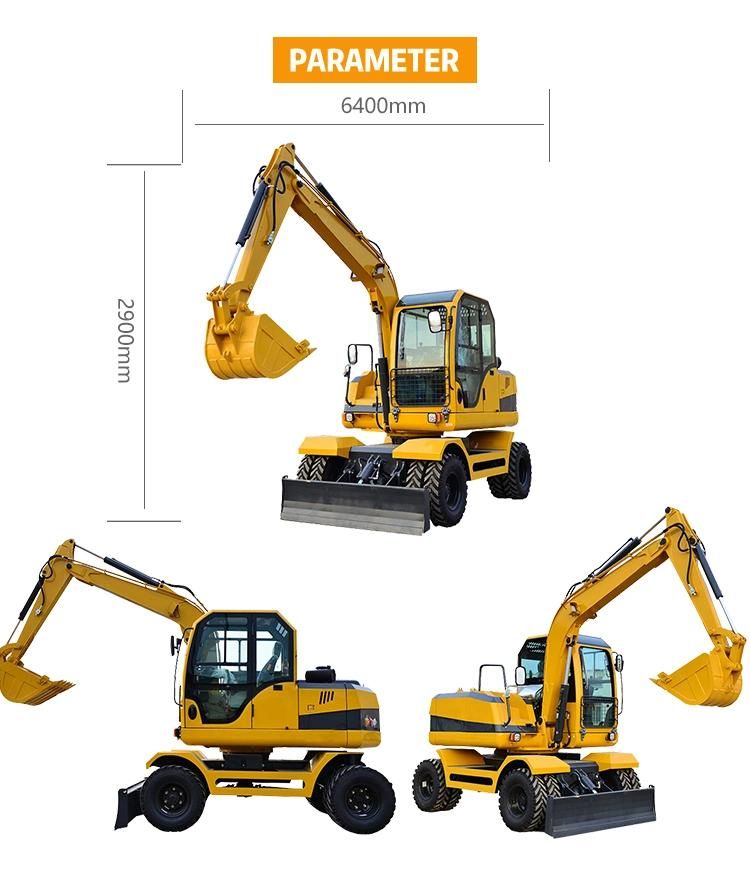

Working RangeMax.digging depth 4360 mm Maximum vertical digging depth 3905 mm Max.digging height 6536 mm Max.digging radius 6550 mm Min. radius of gyration 4030 mm
Q: Are you a manufacturer / factory?
A: Yes, we are the manufacturer. Welcome to visit shanding. We can provide much more cost-effective attachments for construction machinery. Our principle is top-class equipment make best products. You can find kinds of top quality attachments to fit all type of excavators, bulldozers and loaders. We have exported the products to all over the world, based on our best quality and excellent service. We are sure you will be satisfied with our best after-sale service.
Q: Do you accept OEM?
A: Yes, OEM & customized manufacturing are available. Please send us the drawings, we can produce the products as your request.
Q: Can I have some samples?
A: Of course, sample order is available. Lead time: 3-7 days. Customized samples: About 7-10 days.
| Model | SD10S | SD12S(HOT) | SD15D(HOT) | SD20U |
| Total Weight | 760 kg | 1000kg | 1013/1035 kg | 2000 kg |
| Rated Power | 7.6KW | 8.6KW | 10.2kw | 14.7kw |
| Engine | Koop192F | Koop 192FA | Koop 192FA | Laidong LD385 |
| Bucket Capacity | 0.02 m³ | 0.028 m³ | 0.025 m³ | 0.06 m³ |
| Maximum digging distance | 2280 mm | 2950 mm | 3072mm | 3600mm |
| Max. Digging Depth | 1300 mm | 1650 mm | 1336 mm | 1800 mm |
| Max. Digging Height | 2350 mm | 2650 mm | 2637mm | 3400mm |
| Gradeability | 35° | 25/30° | 35° | 35° |
| Overall Width | 860 mm | 925mm | 930 mm | 1100-1300 mm |
| Model | SD17B | SD25U(HOT) | SD30U(HOT) | SD40B |
| Total Weight | 1600 kg | 2500kg | 2870kg | 3650 kg |
| Rated Power | 14.8KW | 14.7KW | 14.7kw | 34w |
| Engine | laidong/yanmar | perKins403d-11 | yanmar3Tnv88 | changchai490 |
| Bucket Capacity | 0.06 m³ | 0.1 m³ | 0.075 m³ | 0.2 m³ |
| Maximum digging distance | 3600 mm | 4150 mm | 4375mm | 4730mm |
| Max. Digging Depth | 1950 mm | 2550mm | 2560mm | 3100 mm |
| Max. Digging Height | 3300 mm | 2530 mm | 3856mm | 4500mm |
| Gradeability | 35° | 35° | 35° | 35° |
| Overall Width | 860 mm | 925mm | 1540 mm | 1700 mm |
Q: Are you a manufacturer / factory? A: Yes, we are the manufacturer. Welcome to visit shanding. We can provide much more cost-effective attachments for construction machinery. Our principle is top-class equipment make best products. You can find kinds of top quality attachments to fit all type of excavators, bulldozers and loaders. We have exported the products to all over the world, based on our best quality and excellent service. We are sure you will be satisfied with our best after-sale service.
Q: Do you accept OEM?
A: Yes, OEM & customized manufacturing are available. Please send us the drawings, we can produce the products as your request.
Q: Can I have some samples?
A: Of course, sample order is available. Lead time: 3-7 days. Customized samples: About 7-10 days.
