• Model NO.：DH17
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Orange
• Transport Package：Nude
• Specification：6790x3725x3480mm
• Trademark：CCC ISO9001
• Origin：China
• HS Code：8429119000
• Production Capacity：100unit,Month

Ground pressure(Mpa)0.065Min. Turning radius(mm)3300Gradeablity (°)30Engine ModelChongfa  NT855-C280S10Rated horsepower(Kw)162Torque ConverterTorque converter 3-element 1stage 1phaseTransmissionPlanetary gear, multi disc clutch hydraulically connected forced lubuicationForward(km/h)1st 0-3.6 2nd 0-6.5 3rd 0-11.2Reverse(km/h)1st 0-3.6 2nd 0-6.5 3rd 0-11.2Carrier rollers2 each sideTrack rollers6 each sideTrack typeAssembled single -grouserWidth of track shoes(mm)560Maximum pressure(MPa)14Dozing capacity (m³)6.4Blade height(mm)1315Max. Drop below ground(mm)540Ripper type3-shank ripperMax. Digging depth (mm)666Overall dimensions(mm)6790*3725*3480
II. Selling Points
1. Chongfa NT855-C280S10 engine features strong power and high efficiency and energy-saving.
2. The high-reliability power shift transmission, stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.
3. The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating.

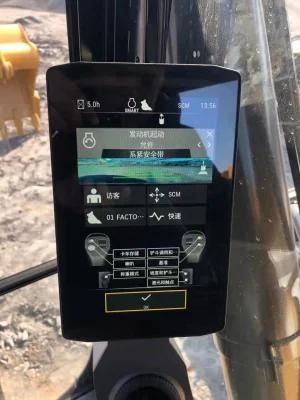

4. It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.
5. The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
6. The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.
7. The ergonomically designed driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side with the adoption of flexible shaft structure. The working device controls are arranged on the right side with adoption of servo control system to achieve lighter and more flexible operations and relieve the operating fatigue.
8. The standard straight tilting blade features powerful cutting force to handle diversified severe working environments and the large single-shank ripper of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.
