Road Grader Machine 170HP 14.7 Ton Motor Grader with Spare Parts (STG170C-8S)
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：I Year
- Certification：CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：STG170C-8
- Walking Mode：Wheeled
- Type：Small Grader
- Transport Package：Nude
- Specification：8580*2740*3310mm
- Trademark：Oriemac
- Origin：China
- HS Code：8429521200
- Production Capacity：350units,Month
Description
Model
STG140C-8S
STG170C-8S
STG190C-8S
Engine Model
6BTA5.9-C150-
WP6G180E330
WP6G200E330
Rated Power
112kW
132.5kW
147kW
Peak Torque
655NM
750NM
900NM
Overall Dimensions
8765×2460×3310mm
8775×2740×3348mm
9265×2740×3348mm
Operating Weight
13000kg
14730kg
15800kg
Forward Speed
5/8/12/19/28/41km/h
5/8/10/18/26/40km/h
6/10/13/21/27/42km/h
Reverse Speed
5/12/28km/h
5/10/26km/h
6/13/27km/h
Min. Turning Radius
/m
/m
/m
Length of Blade
3660 (12ft)mm
3660 (12ft)mm
3660 (12ft)mm
Height of Blade
620mm
620mm
620mm
Max. Lift Above Ground
420mm
480mm
480mm
Max. Depth of Cut
630mm
630mm
630mm

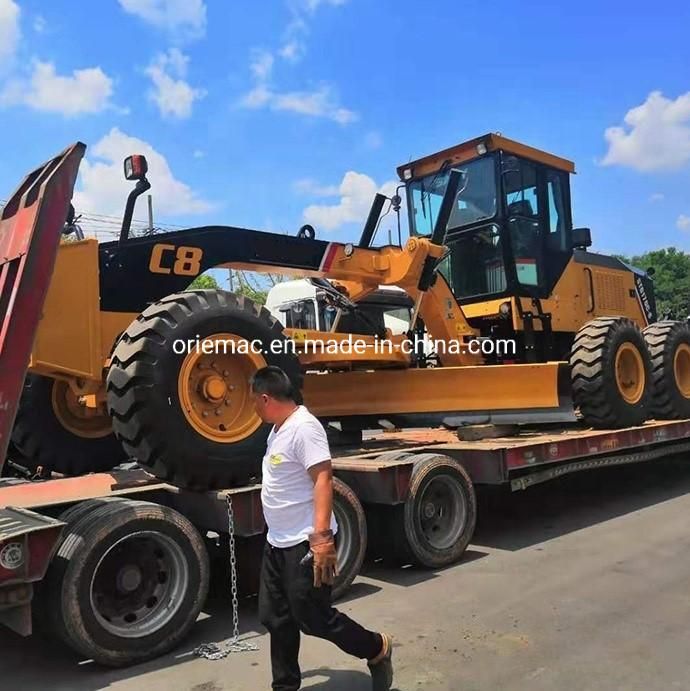

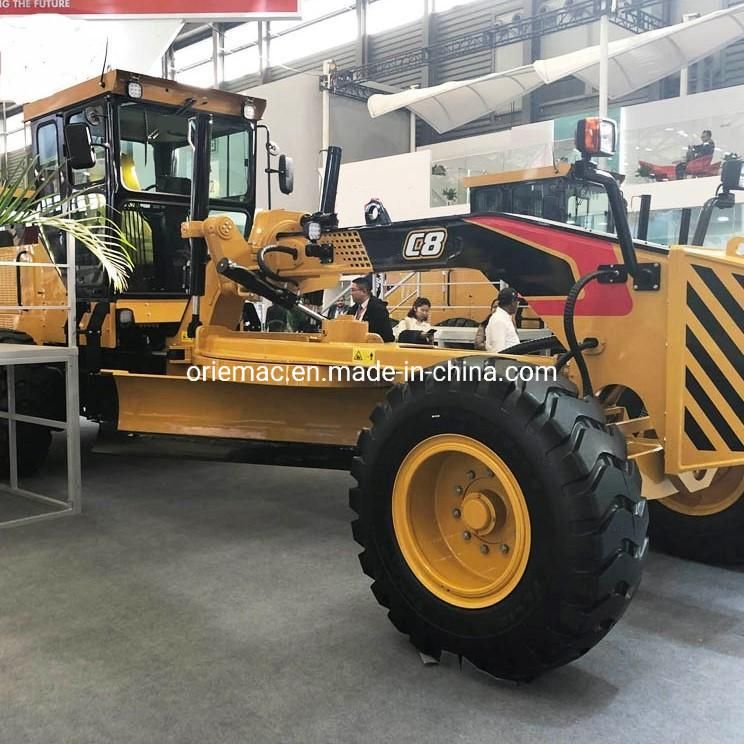

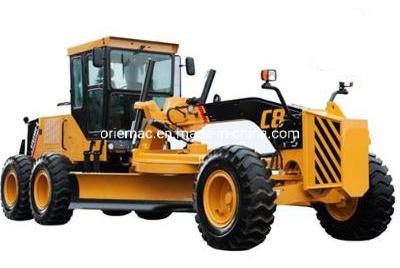

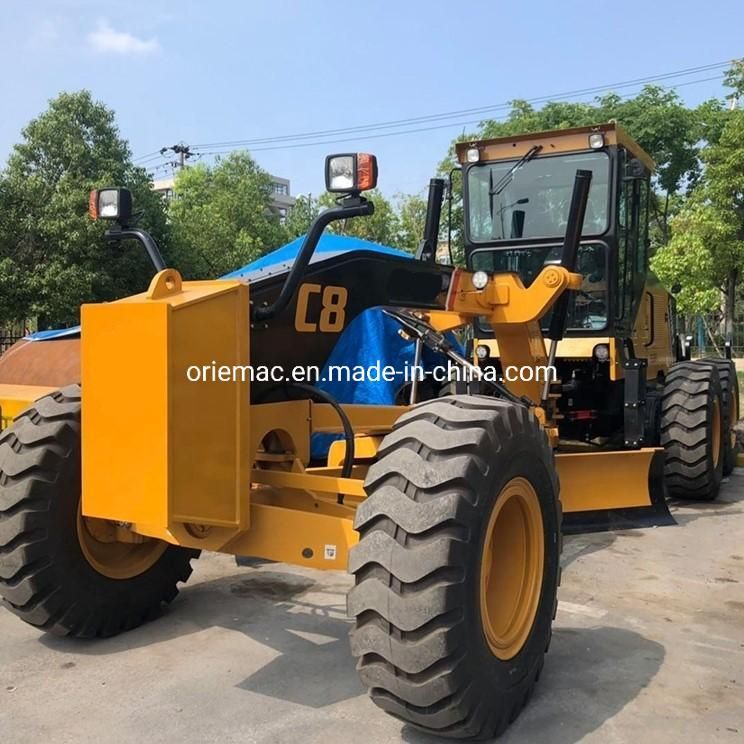

Product Show
