• Model NO.：Xt740
• Type：Small Loader
• Transport Package：Dismantle in The 40hq Container
• Specification：3270*1807*1970mm
• Origin：China

Basic Info.

Model NO. Xt740 Type Small Loader Transport Package Dismantle in The 40hq Container Specification 3270*1807*1970mm Origin China

Product Description

Top quality  Official XC740K  mini skid steer loader 3140kg in hot sale



Product Description

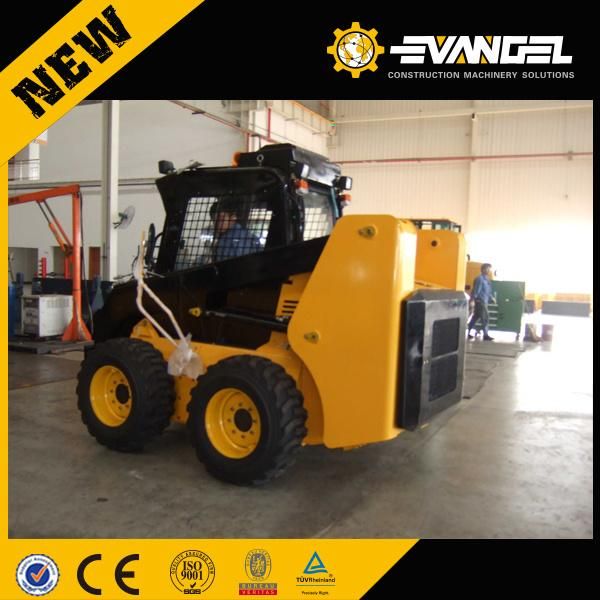

XC740K Skid Steer Loader

With strong power and rich attachments, the XG skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.

Strong and Efficient Power Transmission System

The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.

The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.

The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

Solid and Reliable Design

The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.

The international first-class quality hydraulic units adopted feature high reliability, energy-saving, and high efficiency.

Flexible Operations

Compact structure, low turning radius, and strong site adaptability.

The quick-change coupling equipped can change attachments rapidly in the construction site.

The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.

Incomparable Multi-Functionalities

The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

Safe and Comfortable Operating Environment

The ROPS&FOPS cab and the seat belt, bumper, fire extinguisher, and safety hammer equipped guarantee the personal safety of the operator. The cab features large space, adjustable seats, and com fortable operations.

The joysticks and the instrument panel are arranged in accordance with ergonomic principles so that the driver can always maintain the best comfort to make operations easier.

The standard double-accelerator control model can use the pedal accelerator or work at preset constant power to save the operation labor.

Convenient Maintenances

The cab can be tilted backward for a large angle to make the repair and maintenance portions more accessible.

The rear hood and upper hood can be opened conveniently and all units and pipelines are easily accessible to save the repair and maintenance labor and time.



SPECIFICATIONS FOR Construction Skid Steer Loader XC740K

Item	Parameter	Unit
Overall dimensions(LxWxH)	3310×1800×1950	mm
Bucket capacity	0.45	m3
Operating weight	3140	kg
Engine Model	ZHEJIANG XINCHAI
Rated power/speed	36.8/2500	kW/rpm
Max.travel speed	14.3	km/h
Dumping clearance	2375	mm
Dumping reach	575	mm
Front turning radius without bucket	1183	mm
Front turning radius with bucket	2066	mm
Ground clearance	185	mm
Diesel fuel tank capacity	80	L
Tire model	10-16.5
