• Model NO.：BY800

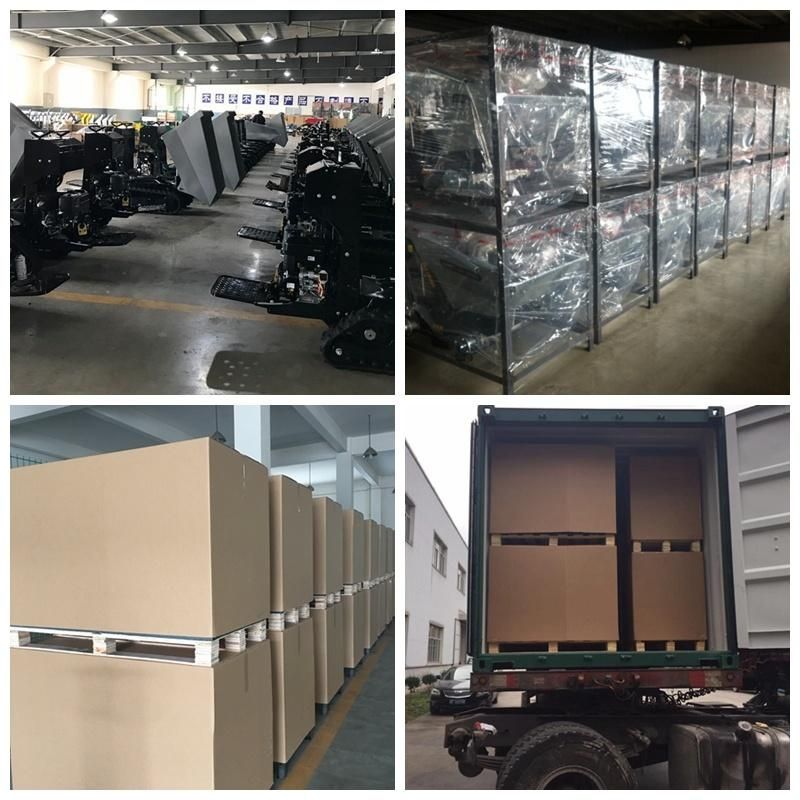

• Transport Package：Retort Stand or Plywood Case
• Specification：CE
• Trademark：ANT
• Origin：Nantong City, Jiangsu Province, China
• HS Code：842890
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. BY800 Transport Package Retort Stand or Plywood Case Specification CE Trademark ANT Origin Nantong City, Jiangsu Province, China HS Code 842890 Production Capacity 1000PCS/Year

Product Description

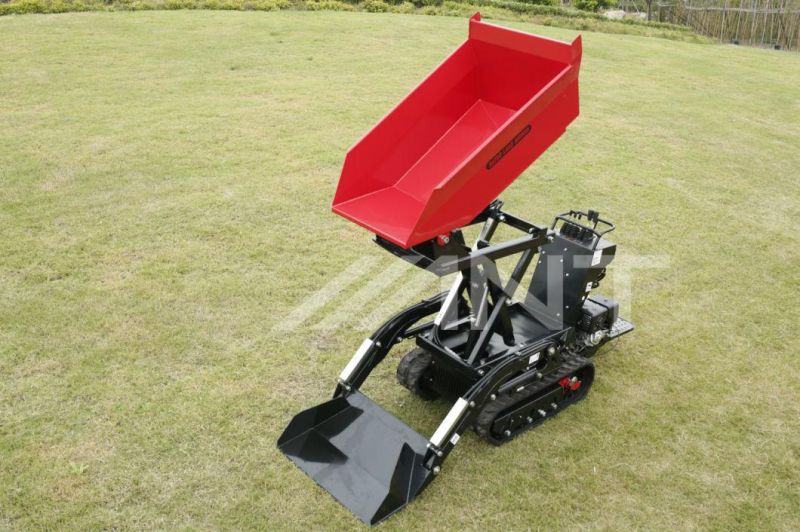

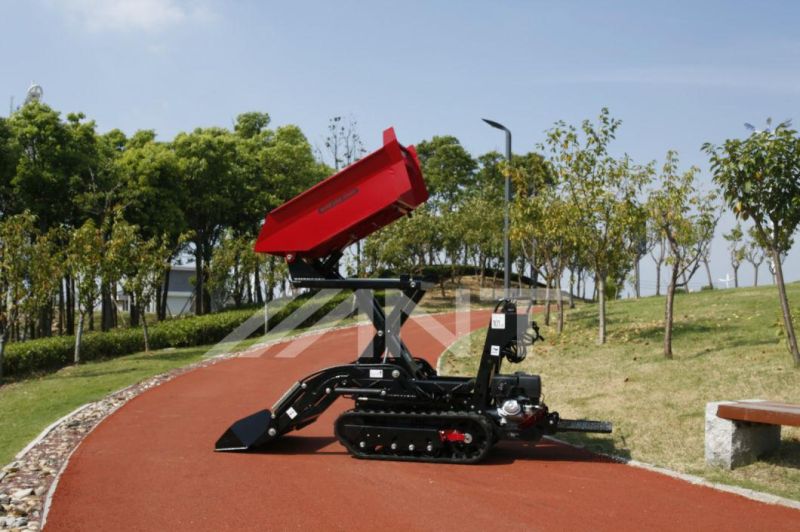

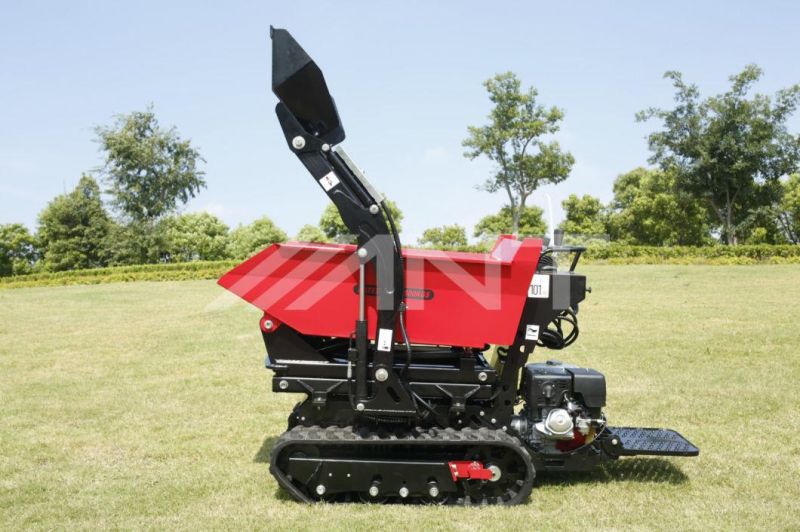

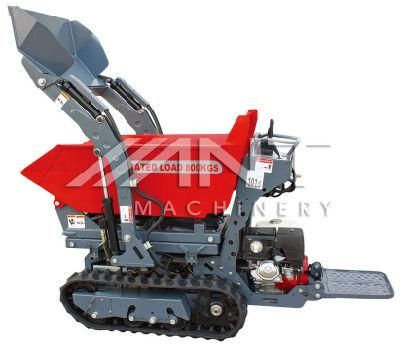

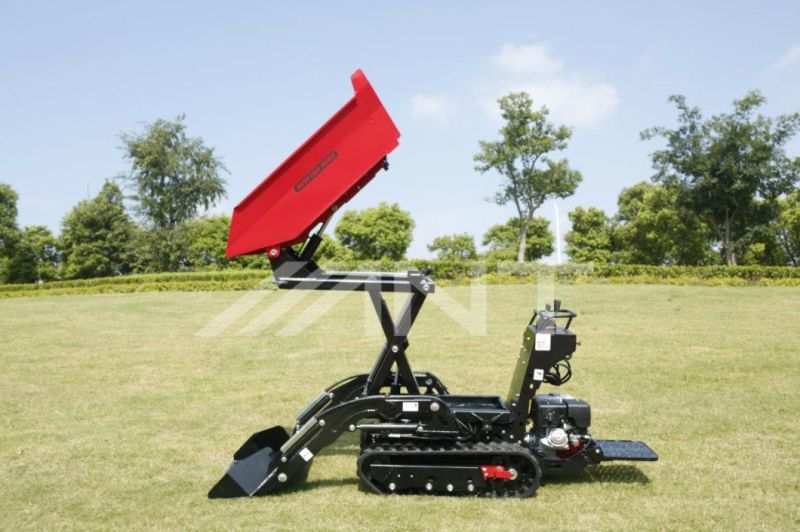

It is very powerful and can load up to 0.8 tonne, it is safe and convenient to operate and suitable for carrying almost everything including brick, cement, sand, stone and so on.

Model	BY800
Engine	Honda GX390 13HP gasoline
Type	Hydra-static
Operative weight              kgs(lbs)	800 (1762)
Max travel speed              km/h(mph)	0-4.8(0-3.0)
Transmission
Hydraulic pump	2 x variable displ.
Flow                                  Vmin(gpm)	2 x 32.4 (2 x 8.5)
Hydraulic motors	2 x orbital
Brake parking	Mechanical
Hydraulic systerm
Hydrauliac pump	Gear pump
Flow                                Vmin(gpm)	1 x 13.5 (1 x 3.5)
Hi-flow                            Vmin(gpm)	1 x 22 (1 x 3.5)
Max pressure                    bar(psi)	150 (2180)
Main valve	2-3 way
Cooled systerm	air-cooled
Skip tipping systerm	Hydraulic
Tracks
Standard track width        mm(in)	180 (7.1)
Track roller	3
Rocking rollers	Yes
Track tensioning	Yes
