• Model NO.：HZS180V
• Productivity：180m²,h
• Feeding Height：1390mm
• Vibrating Amplitude：2.2mm
• Certification：ISO9001: 2000
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Specification：ISO
• Trademark：DFAC
• Origin：China
• Production Capacity：1, 000units,Month

Basic Info.

Model NO. HZS180V Productivity 180m²/h Feeding Height 1390mm Vibrating Amplitude 2.2mm Certification ISO9001: 2000 Condition New Color Yellow Transport Package Nude Specification ISO Trademark DFAC Origin China Production Capacity 1, 000units/Month

Product Description

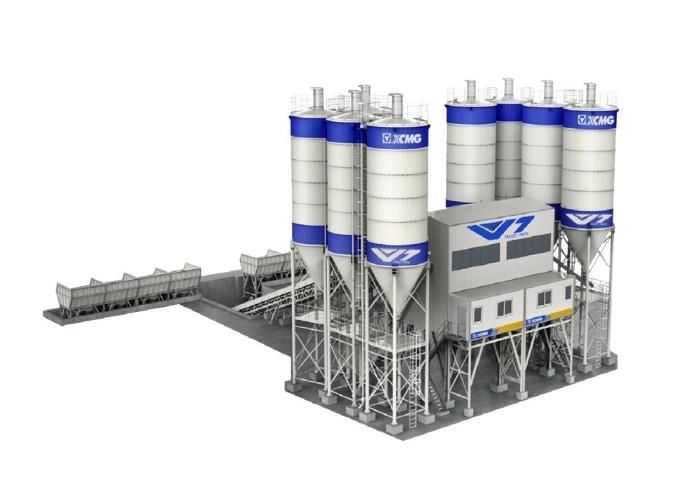

cement mixer concrete machine Concrete Mixing Plant Concrete Batching Plant for sale HZS180V

PRODUCT FEATURE
Concrete batching plant is a kind of periodical forced mixing equipment. It mainly consists of aggregate burdening delivery system, powder storage supplying system, liquid storage supplying system, weighing system, mixing system, electric control system and main tower framework, etc. It is a kind of automation equipment that automatically weighs multiple raw materials (aggregate, cement, coal ash, water and additive) as per a formula, mixes through forced mixer and produces finished concrete meeting requirements. The plant features high weighing precision and reliable continual running. It is applied to large-scale construction projects and building that demands for high quality concrete, such as high-speed railway, large-scale bridge, nuclear power plant and water conservancy and hydropower engineering.PARAMETERS

MODEL	UNIT	HZS180V
Theoretical production rate	M³/h	180
Discharge height	m	4
Mixer type		JS3000
Mixer power	kW	2×55
Nominal volume of mixer	L	3000
Production period	S	60
Max. diameter of aggregate	mm	≤80
Volume of aggregate silo	m³	4×25
Volume of powder silo (optional)	t	4×200
Capability of batching plant	L/Silo	4800
Capability of inclined belt conveyer	t/h	700
Productivity of cement spiral conveyer	t/h	110
Productivity of flyash spiral conveyer	t/h	90
Standard installed capacity	kW	270
Weighing range and accuracy of sand and stone	kg	(1080~3600)±2%
Weighing range and accuracy  of cement	kg	(540~1800)±1%
Weighing range and accuracy  of flyash	kg	(240~800)±1%
Weighing range and accuracy of water	kg	(240~800)±1%
Weighing range and accuracy of additive	kg	(20~60)±1%
