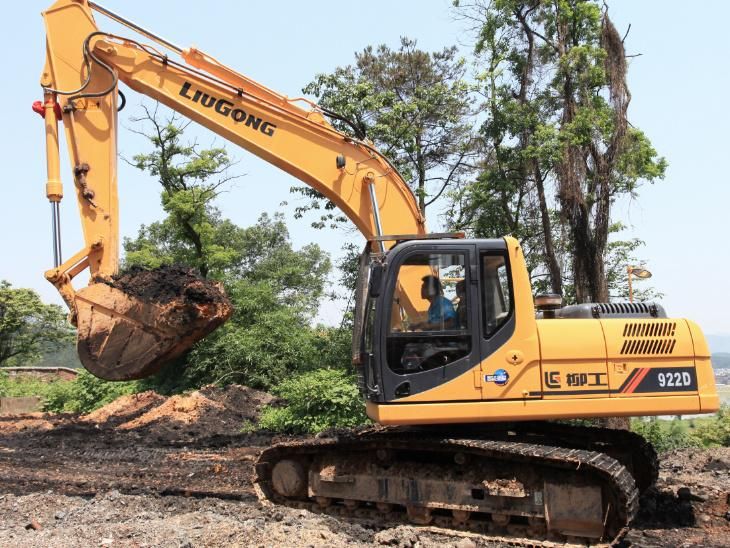

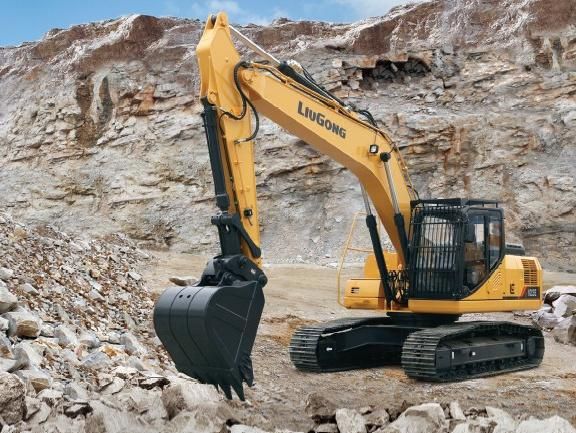

| Model | 922E Stage II / DCEC | 922E Stage IIIA / QSB7 | 922E Stage IV / Tier 4F | 925E-Stage II | 925E-Stage II Long Reach Arm | 925E-Stage IIIA | 925E-Stage III Long Reach Arm | 925E-Stage IV /
Tier 4F |
| Operating weight with cab | 22000 kg | 22000 kg | 22800 kg | 25500 kg | 28000 kg | 25500 kg | 28000 kg | 25500 kg |
| Engine power | 112 kW (150 hp) @ 1950 rpm | 124 kW (166 hp/168.6 ps)
@ 2050 rpm | 129 kW (173 hp)
@ 2100 rpm | 133kW (178 hp / 181 ps)
@ 2,000 rpm | 133 kW (178 hp / 181 ps)
@ 2,000 rpm | 140 kW (188 hp / 190ps)
@ 2,050 rpm | 140 kW (188 hp / 190 ps)
@ 2,050 rpm | 142 kW (190 hp)
@ 2000 rpm |
| Bucket capacity | 0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³ | 0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³ | 0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³ | 1.0 / 1.1 / 1.2 / 1.3 m³ | 0.4 m³ | 1.0 / 1.1 / 1.2 / 1.3 m³ | 0.4 m³ | 1.0 / 1.1 / 1.2 / 1.3 m³ |
| Maximum travel speed (High) | 5.7 km/h | 5.3 km/h | 5.6 km/h | 5.8 km/h | / | 5.5 km/h | 5.5 km/h | 6.0 km/h |
| Maximum travel speed (Low) | 3.3 km/h | 3.0 km/h | 3.3 km/h | 3.5 km/h | 5.8 km/h | 3.3 km/h | 3.3 km/h | 3.5 km/h |
| Maximum swing speed | 12.5 rpm | 10.5 rpm | 11.4 rpm | 12 rpm | 12 rpm | 10.5 rpm | 10.5 rpm | 11.6 rpm |
| Arm breakout force | 97 kN | 97 kN | 97 kN | 124 kN | / | 124 kN | / | 124 kN |
| Arm breakout force Power boost | 105 kN | 105 kN | 105 kN | 134 kN | / | 134 kN | / | 134 kN |
| Bucket breakout force | 140 kN | 140 kN | 140 kN | 165 kN | / | 165 kN | / | 165 kN |
| Bucket breakout force Power boost | 152.5 kN | 152.5 kN | 152.5 kN | 179 kN | / | 179 kN | / | 179 kN |
| Shipping length | 9540 mm | 9570 mm | 9570 mm | 10220 mm | 14652 mm | 10220 mm | 14625 mm | 10220 mm |
| Shipping width | 2990 mm | 2990 mm | 2990 mm | 3190 mm | 3390 mm | 3190 mm | 3390 mm | 3190 mm |
| Shipping height | 3140 mm | 3140 mm | 3140 mm | 3400 mm | 3550 mm | 3200 mm | 3550 mm | 3400 mm |
| Track shoe width (std) | 600 mm | 600 mm | 600 mm | 600 mm | 800 mm | 600 mm | 800 mm | 600 mm |
| Boom | 5710 mm | 5710 mm | 5710 mm | 6000 mm | 10350 mm | 6000 mm | 10350 mm | 6000 mm |
| Arm | 2915 mm | 2915 mm | 2915 mm | 2980 mm | 8000 mm | 2980 mm | 8000 mm | 2980 mm |
| Digging reach | 9870 mm. | 9870 mm | 9870 mm | 10340 mm | 18365 mm | 10340 mm | 18365 mm | 10340 mm |
| Digging reach on ground | 9685 mm | 9685 mm | 9685 mm | 10150 mm | 18265 mm | 10150 mm | 18265 mm | 10150 mm |
| Digging depth | 6562 mm | 6562 mm | 6562 mm | 6925 mm | 14815 mm | 6925 mm | 14815 mm | 6925 mm |
| Vertical wall digging depth | 5080 mm | 5080 mm | 5080 mm | 5795 mm | 14600 mm | 5795 mm | 12675 mm | 5795 mm |
| Cutting height | 9945 mm | 9945 mm | 9945 mm | 9865 mm | 14030 mm | 9865 mm | 14030 mm | 9940 mm |
| Dumping height | 7170 mm | 7170 mm | 7170 mm | 6920 mm | 11925 mm | 6920 mm | 11925 mm | 6920 mm |
| Minimum front swing radius | 3090 mm | 3090 mm | 3090 mm | 3695 mm | 5970 mm | 3700 mm | 5970 mm | 3695 mm |
