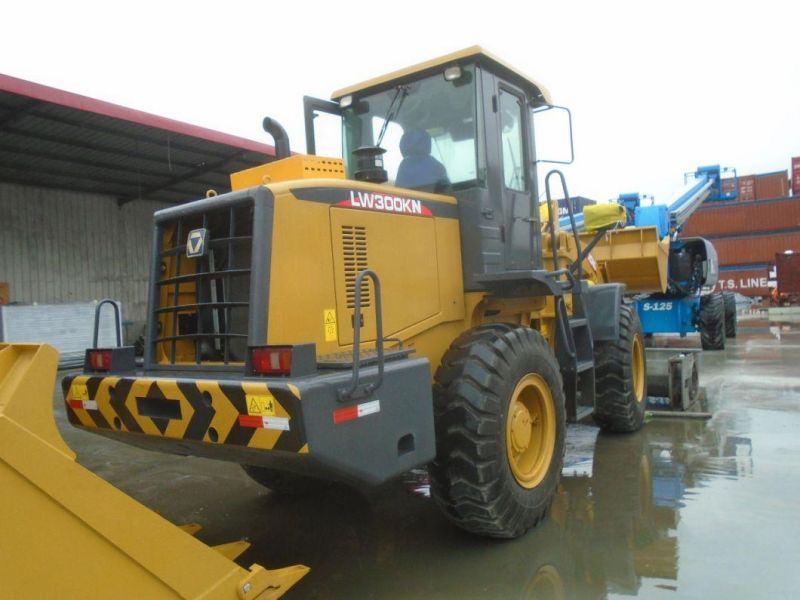

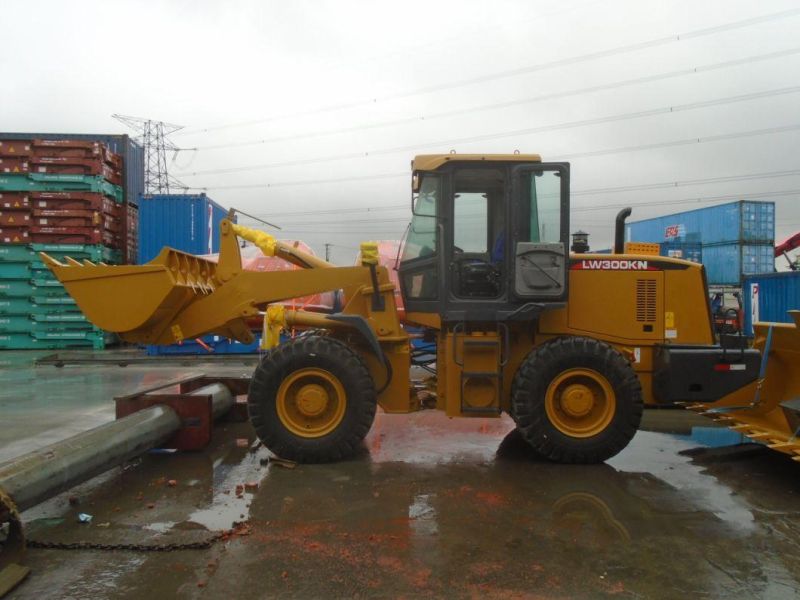

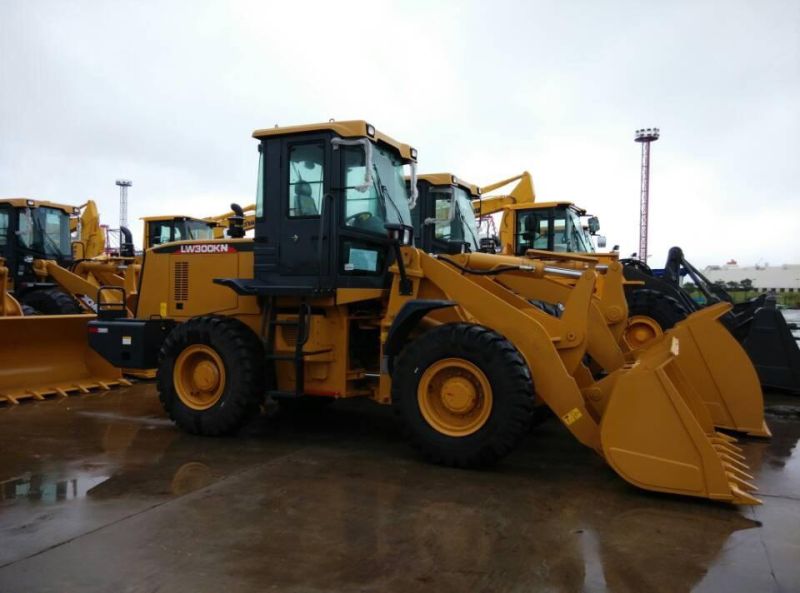

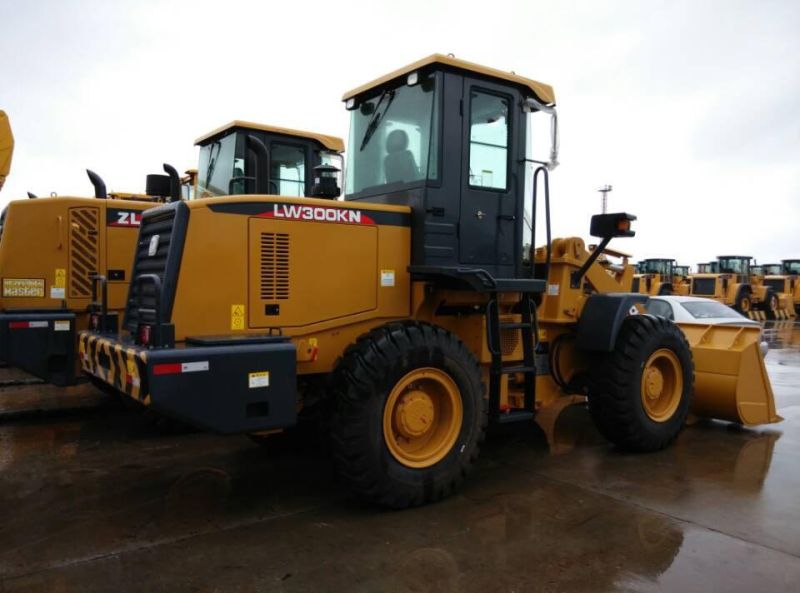

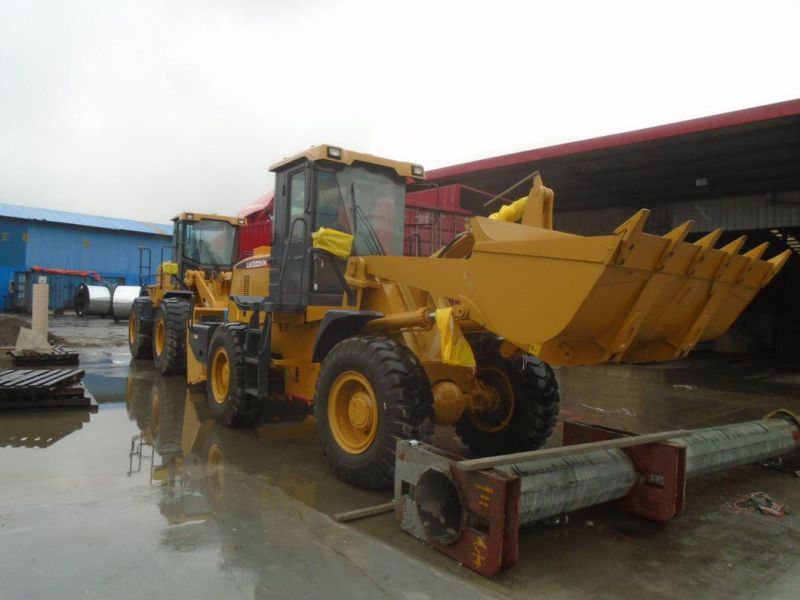

Construction Equipment 3 Ton 5 Ton Compact Wheel Loader Lw300kn for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE, ISO9001: 2000
- Condition：New
- Rated Load：3000kg
- Transmission：Hydraulic - Mechanical Transmission
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：LW300KN
- Type：Small Loader
- Transport Package：in Nude
- Specification：ISO; CE
- Trademark：oriemac
- Origin：Jiangsu, China
- Production Capacity：3000
Description
LW300KN wheel loader is a super heavy-load 3t-level model released by recently. Featuring strong power, high operation comfort, high efficienty and reliability, economic
[Product Parameter]
| Ltem | Specifications | Unit | |
| Rated load | 3000 | Kg | |
| Rated bucket capacity | 1.9 | M³ | |
| Operation mass | 11000 | Kg | |
| Dumping height(from ground to main blade plate) | 2930 | ||
| Dumping distance(from the front wheel to main blade plate) | 1010 | ||
| Maximum breakout force | 130 | KN | |
| Maximum traction force | 100 | KN | |
| Lifting time of swing arm | 5.6 | S | |
| Total cycling time | 9.8 | S | |
| Minimum turning radius(outer edge of bucket) | 6020 | ||
| Minimum turning radius(tire center) | 5170 | ||
| Articulated angle | 38 | ° | |
| Gradeability | 28 | ° | |
| Tire size | 17.5-25-12PR | ||
| Overall demension of machine(L×W×H) | 7250×2482×3290 | ||
| Engine model | YC6J125Z-T22 | ||
| Rated power/rotate speed | 92/2000 | KW/r/min | |
| Travel speed | Gear I(F/R) | 0~15/20 | Km/h |
| Gear II(F) | 0~40 | Km/h | |

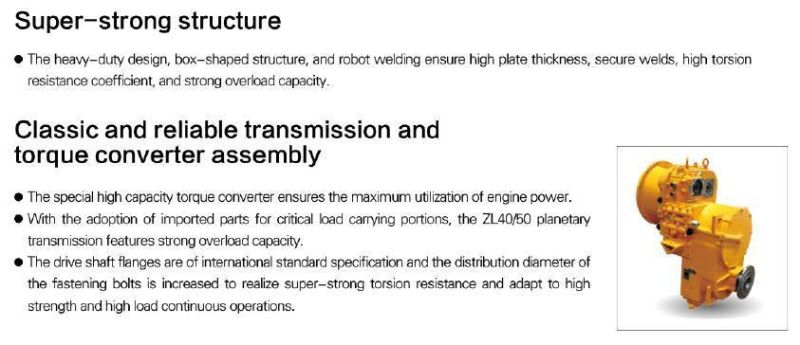

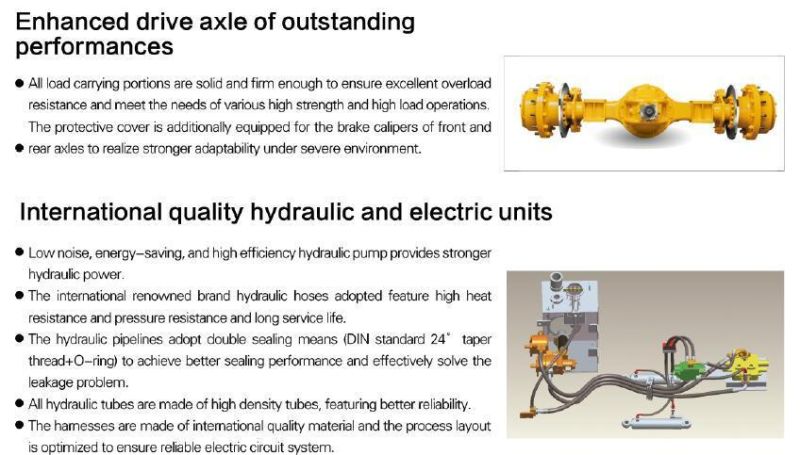

--Heavy-Duty design eusures high firmness and reliability
