• Model NO.：SR20M
• Compaction Depth：40cm
• Engine Type：Diesel Engine
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Transport Package：Nude Package
• Specification：6229*2345*3180 mm
• Trademark：Acntruck
• Origin：China
• Production Capacity：50 Unit Per Month

Basic Info.

Model NO. SR20M Compaction Depth 40cm Engine Type Diesel Engine Travel Speed 40cm/s Centrifugal Force 40KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package Nude Package Specification 6229*2345*3180 mm Trademark Acntruck Origin China Production Capacity 50 Unit Per Month

Product Description

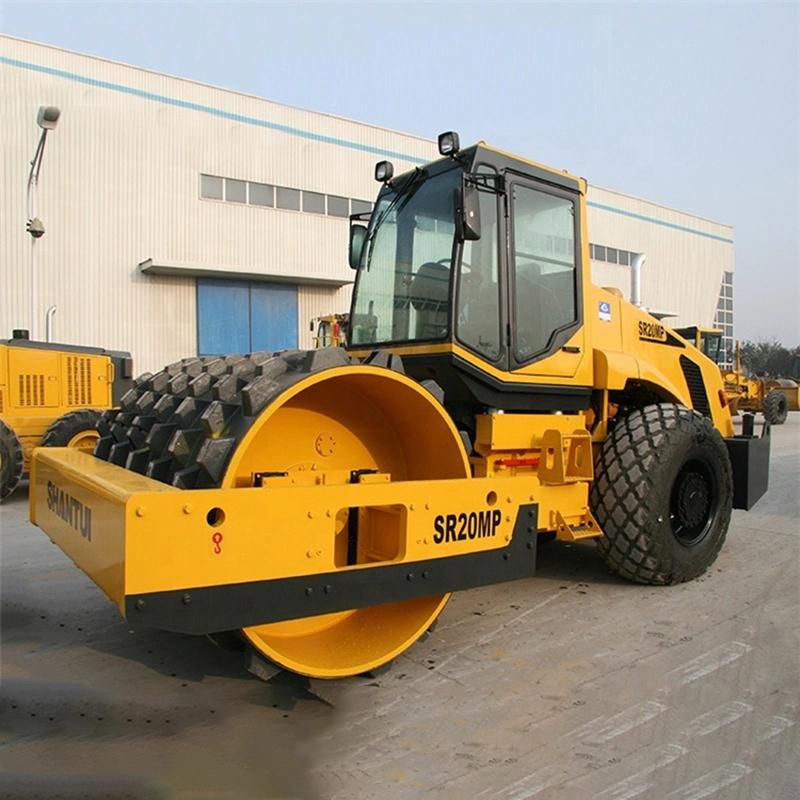

Vibratory Acntruck SR20M New Single Drum Road Roller Compactor

Description

Driving/Riding Environment
1, The mechanical drive system with three-speed regulation and flexible steering adapts to diversified working conditions.

2, The traveling system is controlled by electronic control joystick to realize accurate control by low operating force, featuring low operating force, flexible and handy operations, and high operating comfort and working efficiency.

3, The hand accelerator is located on the control box, featuring high operating comfort and handy operations.

Working performance
1, The closed-loop hydraulic vibrating system is applied. With double-frequency and double-amplitude, its scientifically reasonable static linear load and exciting force configuration guarantees the effective compacting for the materials of diversified types and the pavements of diversified thicknesses.

2, The imported heavy-duty variable displacement plunger pump is applied for the vibrating pump and the vibrating system is electronically controlled to realize simple operations and guarantee the reliability and flexibility of vibrating system.
High maintenance convenience
1, The hood of large opening angle eases the maintenances of engine and hydraulic system.

2, The modular structure eases the disassembling of parts and ensures low maintenance cost and easy maintainability.

3, Less malfunctions and convenient maintenances.

Parameter name	SR20MA (Standard version)	SR20MA
Performance parameters
Operating weight (Kg)	20000	20000
Exciting force (KN)	380/280	380/280
Vibration frequency (Hz)	29/35	29/35
Nominal amplitude (mm)	-	2/1.0
Ground pressure (KPa)	-	-
Gradeability (%)	-	30
Engine
Engine model	WP6	SC8D175.2G2B1
Rated power/rated speed (kW/rpm)	129/1800	128/1800
Overall dimensions
Overall dimensions of machine (mm)	6229*2345*3180	6229*2345*3180
Driving performance
Forward speed (km/h)	2.84/5.58/9.1	F1: 2.84,F2: 5.58,F3: 9.1
Reversing speed (km/h)	2.84/5.58/9.1	R1:2.84,R2:5.58,R3:9.1
Chassis System
Wheelbase (mm)	-	-
Tank capacity
Fuel tank (L)	300	300
Working device
Compacting width(mm)	2140	2140
