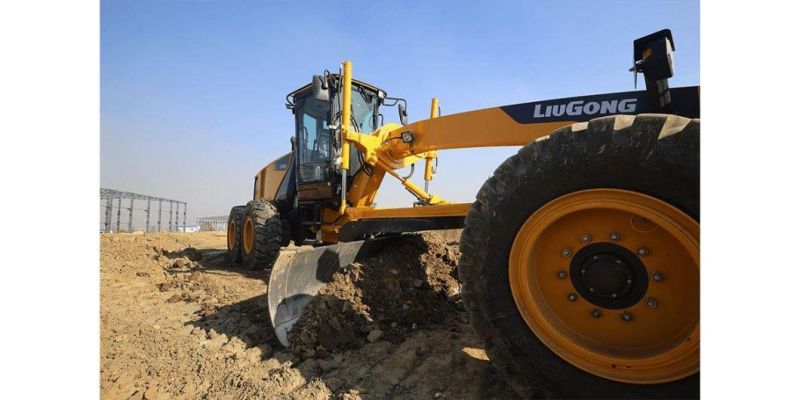

Liugong Clg4180d 180HP 200HP Motor Grader with 3 Teeth Ripper
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：1years
- Warranty：1years
- Certification：TUV, UL, ISO, RoHS
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic - Mechanical
Base Info
- Model NO.：CLG4180D
- Walking Mode：Wheeled
- Type：Small Grader
- Transport Package：Nude
- Specification：8970*2625*3470mm
- Trademark：LIUGONG
- Origin：China
- Production Capacity：1000PCS,Set
Description
Product Description
Our Company
- Fuel Efficient Imported Engine.

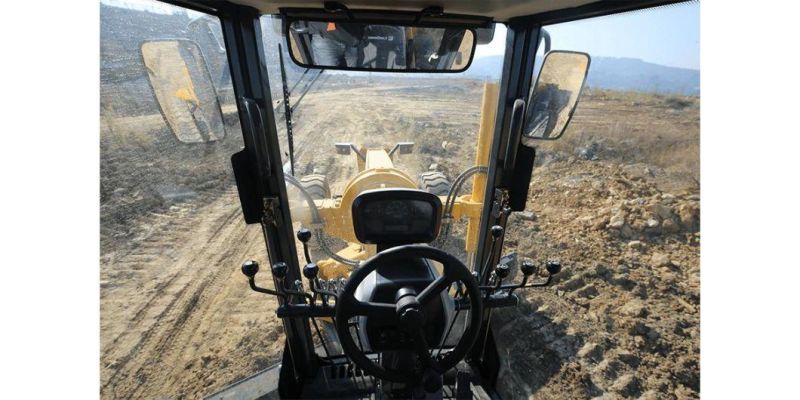

- Low Vibration, Noise, Dust +UV Resistant cab
- Meritor wet axle with "no-spin" differential lock as standard
- Balance box enables the 4 rear wheels to swing up and down by +/- 15°
Operating weight
15500 kg
Weight on front wheels
4650 kg
Weight on rear tandem
10850 kg
Drawbar pull
86 kN
Model
Imported 6BTAA5.9-C190
Emission regulation
Tier 2 / Stage II
Rated power
142 kW (190 hp) @ 2200 rpm
Net power
115 kW (172 hp) @ 2200 rpm
Type
Power shift
Speeds
6f / 3r
Maximum travel speed, forward
42 km/h
Maximum travel speed, reverse
26.2 km/h
Turning radius
7200 mm
Articulation angle
±27º
Maximum overall height
3380 mm
Width over tires
2600 mm
Blade width
3960 mm
Overall length
9090 mm
