• Model NO.：BHW35-8
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Operationg Weigth：34ton
• Power/Rated Speed：169kw,1900rpm
• Capacity with Clamshell Grab：2.0-3.0m3
• Transport Package：Export Pakage
• Trademark：BONNY
• Origin：China
• HS Code：8429521200
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. BHW35-8 Size Medium-Sized Certification ISO9001: 2000 Condition New Operationg Weigth 34ton Power/Rated Speed 169kw/1900rpm Capacity with Clamshell Grab 2.0-3.0m3 Transport Package Export Pakage Trademark BONNY Origin China HS Code 8429521200 Production Capacity 100PCS Per Month

Product Description

Features & Advantages

1. Engine emmissions conform to the latest environmental regulations. It is equipped with the world famous brand hydraulic components.

2. Wheel material handler of Bonny has the advantage of fast travelling speed which can realize the operation needs of rapid transfer, at the same time, it has strong operation stability, larger operation range, larger grabbing force and higher work efficiency.

3.  Applicable for loading, unloading, stacking, transferring and packing in scrap steel yards, wharf yards, railway yards, garbage disposal plant, as well as light material industry.

4. The following advanced systems can be selected individually or in combination as required: Monitoring system with displayer, electronic weighing system, radiation detection system, automatic central lubricating system, rubber track, tools applicable (Orange-peel grab, Clamshell grab, Wood grab, Scrap metal shears, Hydraulic pliers etc.).


Specifications


Item	Unit	Data
Machine weight	t	34
Diesel engine power	kW	169
Rated speed	rpm	1900
Max. flow	L/min	2×266
Max. operation pressure	MPa	32
Swing speed	rpm	8.0
Travel speed	km/h	5.3/20.0
Working attachment		Data
Boom length	mm	8000
Stick length	mm	6000
Capacity with clamshell grab	m3	2.0-3.0
Max. grabbing reach	mm	14882
Max. grabbing height	mm	13441
Max. grabbing depth	mm	6082

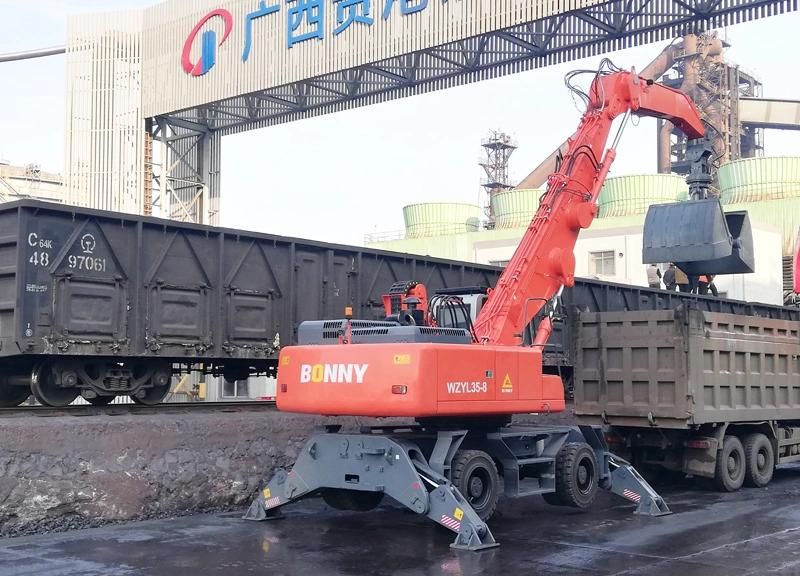

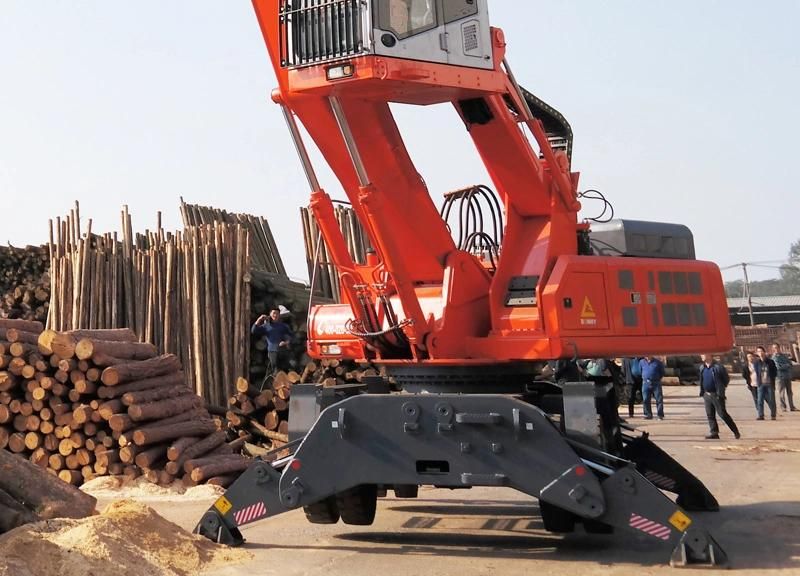

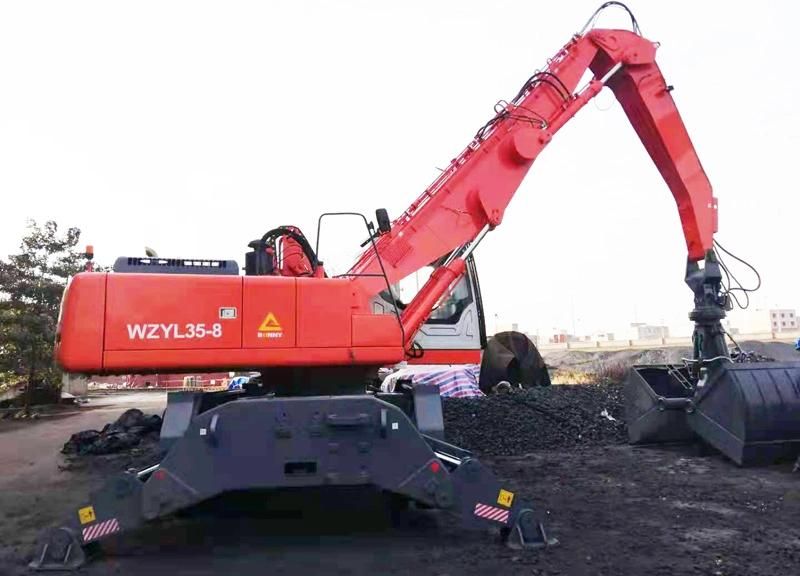

Product Show



Certificate

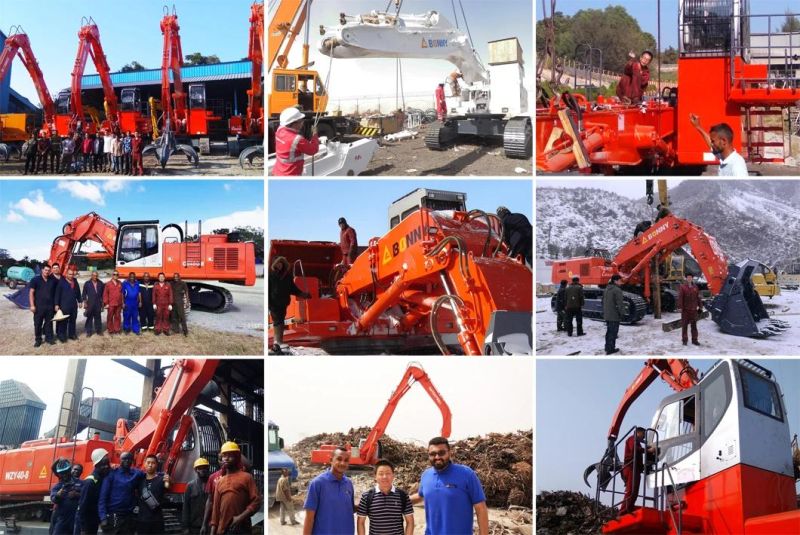

Service on Site

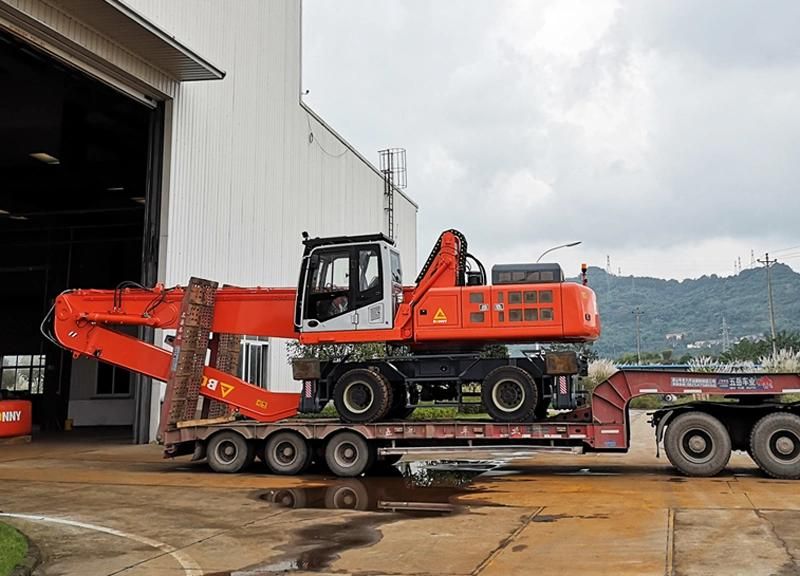

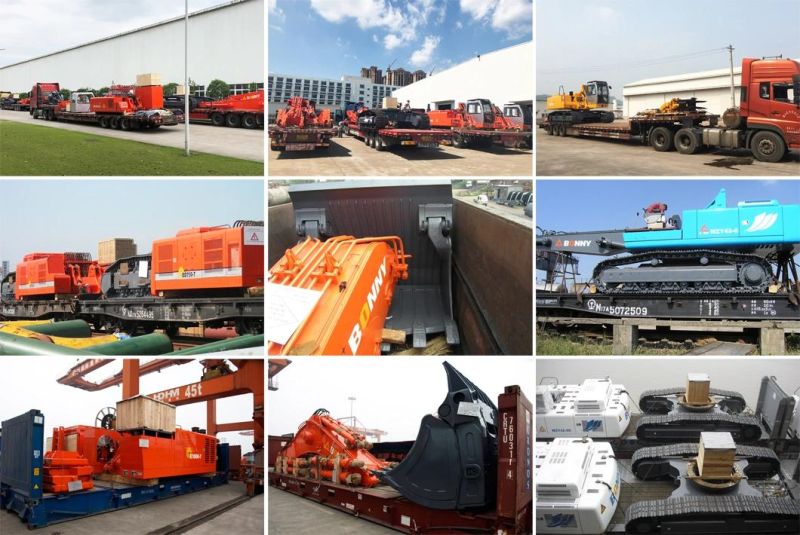

Packing & Shipping



FAQ

1: What about the delivery time?
A: It depends on the type of machine. In general circumstance, it will take more than from 60 days to 90 days to produce the ordered machine after receiving the deposit. But we can reduce to 10 working days if the machine areinstock.

2: Which payment terms can be accepted?
A: Normally our payment term is based on by T/T (30% down payment, 70% before shipment) or irrevocable Letter of Credit at sight. But if you prefer other payment terms please contact us for further information.

3: What is the warranty time?
A: The warranty period shall be 15 months counted from goods arrival in Chinese port, or 1 year (12 months) or 2000 operating hours since handover (after assembling and commissioning) on operation site, whichever comes earlier.

4: How soon can you respond client inquires?
A: Our team is consisted of a group of diligent and dynamin people, working 24/7 to respond clinent inquires and questions all time, most of them can be solved within 12 hours.

5: What kind of logistic service do you supply?
A: We can ship construction machinery by various transportation ways including by road, railway and container. For light spare parts in urgent demand, we can send it by international express service, such as DHL, TNT, UPS, FedEx, or by Air.

6. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
