• Model NO.：wheel loader
• Type：Medium-sized Loader
• Transport Package：in Nude
• Trademark：Oriemac
• Origin：China

Basic Info.

Model NO. wheel loader Type Medium-sized Loader Transport Package in Nude Trademark Oriemac Origin China

Product Description

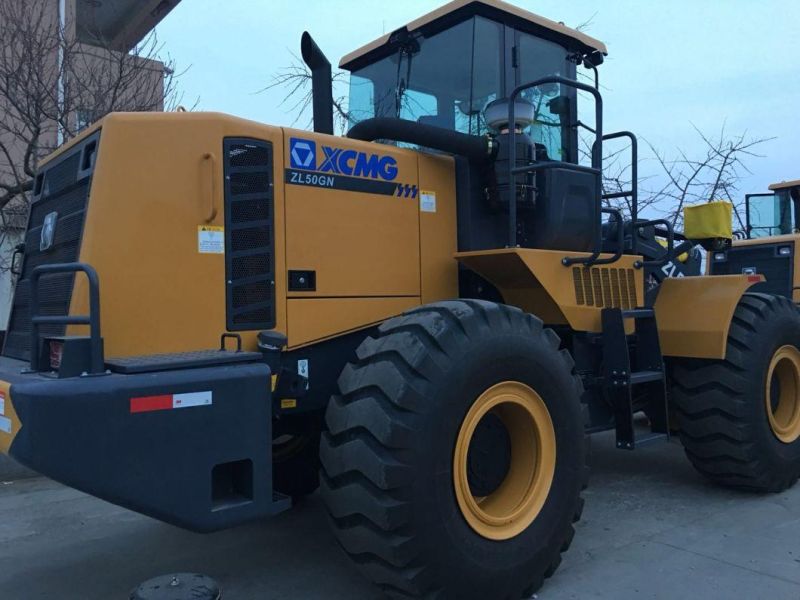

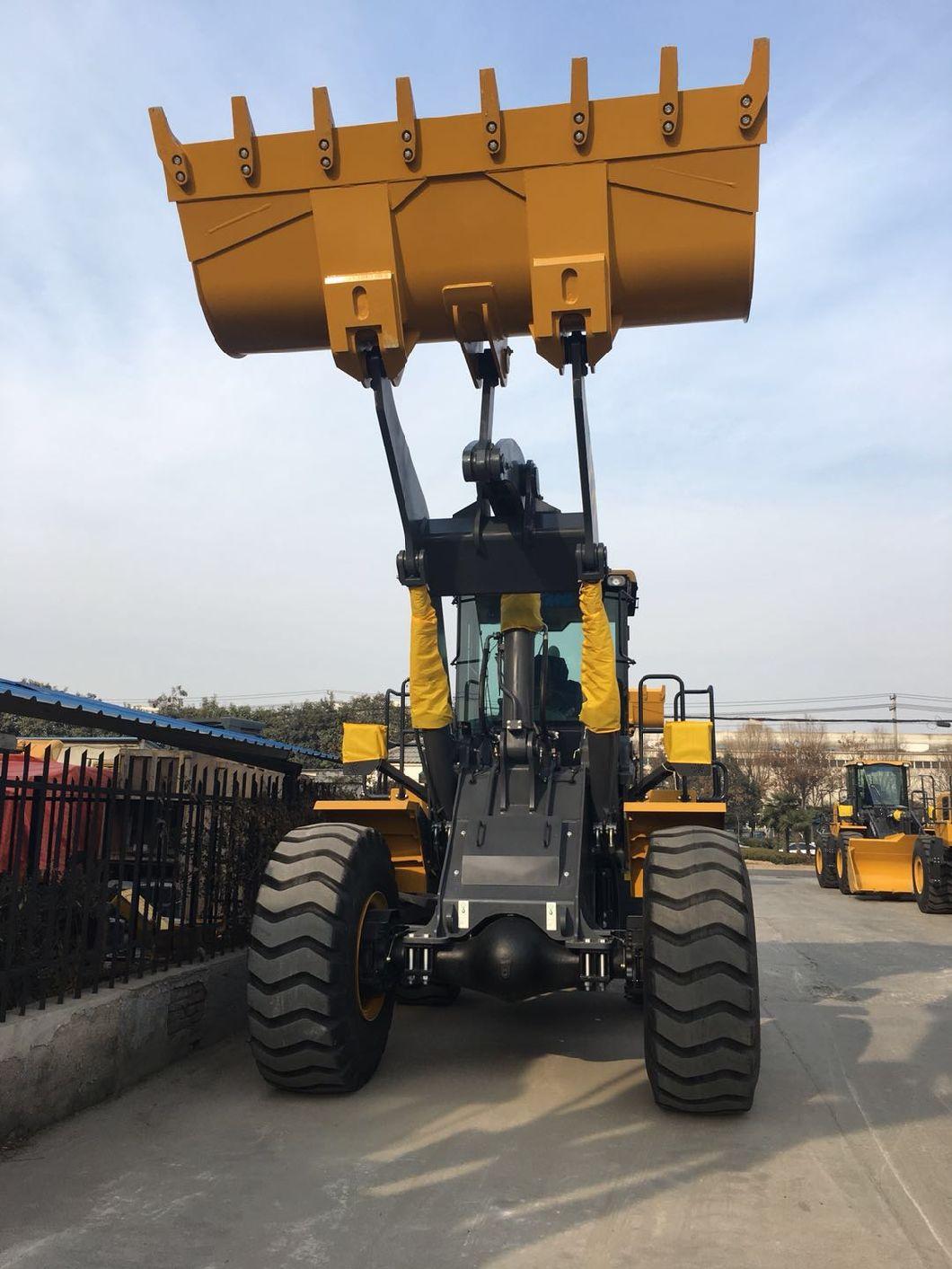

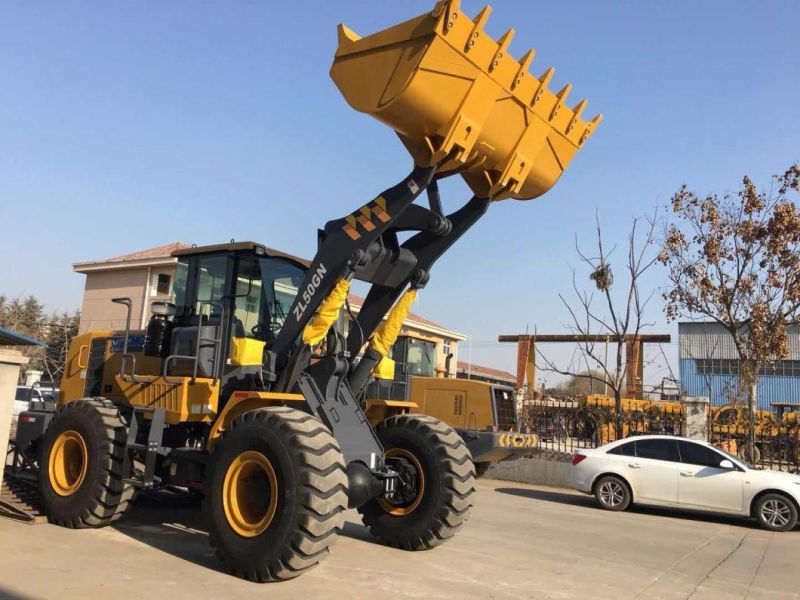

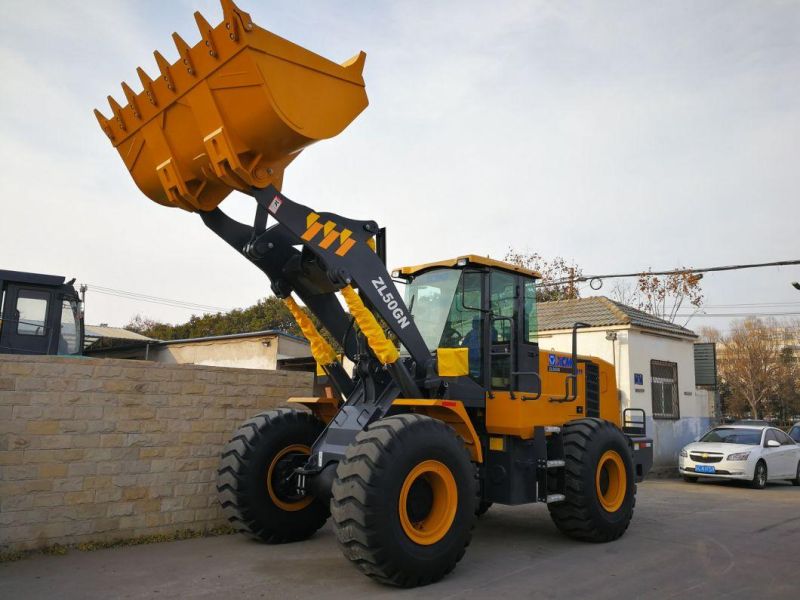

Construction Machinery Oriemac brand Zl50GN Wheel Loaders

Wheel Loader is a kind of earthwork construction machinery widely used in highway, railway, construction, hydropower, port, mine and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime, coal, etc. It can also be used for slight shoveling and excavation of ores, hard soil, etc. Different auxiliary working devices can also be used for bulldozing, lifting and loading and unloading of other materials such as wood.

Advantage:

♠ Fast operation and high efficiency

♠ Good maneuverability

♠ Simple and portable operation



Rated parameters:

ltem	Parameters	Unit
Rated load	5000	kg
Rated bucket capacity	3	m³
Total weight	17500	kg
Dumping height(from ground to main blade plste)	3090	mm
Dumping distance(from the front wheel to main blade plate)	1130	mm
Maximum breakout force	170	KN
Max.tractive force	165	KN
Lifting time of swing arm	≤6.5	s
Total cycling time	≤11	s
Minimum turning radiu	7300	mm
Maximum turning radi	6400	mm
Articulated angle	35	°
Gradeability	30	°
tire size	23.5-25
Overall demension of machine(L×W×H)	8165×3016×3485	mm
Engine model	WD10G220E23
Rated power/rotate speed	162/2000	kW/r/min

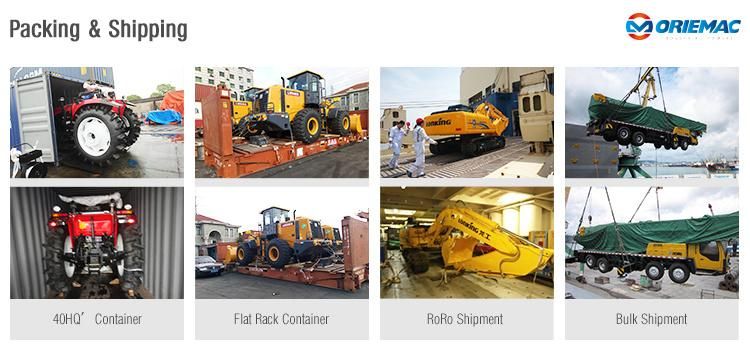

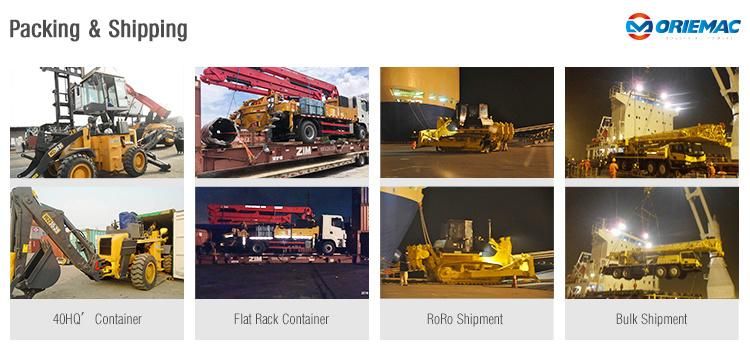

Packaging & Shipping

We have been engaged in foreign trade for more than ten years, and have very rich experience in sea transportation. According to past cases, each of our goods is intact and delivered to customers on schedule.
