• Model NO.：XGH460
• Transport Package：Comply with Export Packaging Requirements
• Specification：9.15*3.42*3.45 m
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Basic Info.

Model NO. XGH460 Transport Package Comply with Export Packaging Requirements Specification 9.15*3.42*3.45 m Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per Year

Product Description

Description

XCMG earth compactor machine XGH460 Crawler dynamic compactor

XGH460 crawler type dynamic tamping machine is my company to meet the airport, industrial area, reclamation, fried mountain reclamation project, collapsible less area and soft clay area of the ground treatment and development of professional strength tamping machine. With the following significant advantages: the maximum working conditions of the gantry can reach 1200 t m; full load lifting speed: the standard conditions full load lifting speed of 30m / min; industry's first installation guide device, so that the mast can be automatically positioned, To achieve self-disassembly.

Specification

Project	Unit	Parameter
Tamping energy level	t.m	460/1200
Max. allowed rammer weight	t	23/60
Max. droping distance	m	20/20
Max. height from pulley center to ground	m	26/26
The length of the boom	m	19~25/19~28
Working angles	°	61~78/67~71
Operating Radius	m	7~11/9~11
Grounded length	mm	6025
Wheelbase	mm	4200
Track link width	mm	760
Size of Host Machine	m	9.15×3.42×3.45
Hoisting rope diameter	mm	28
Single rope tension	t	10
Full load lifting speed	m/min	(30/12)
Range of rope diameter	mm	20
Radius changing speed	m/min	57
Turning speed	r/min	2

Product showTop selling

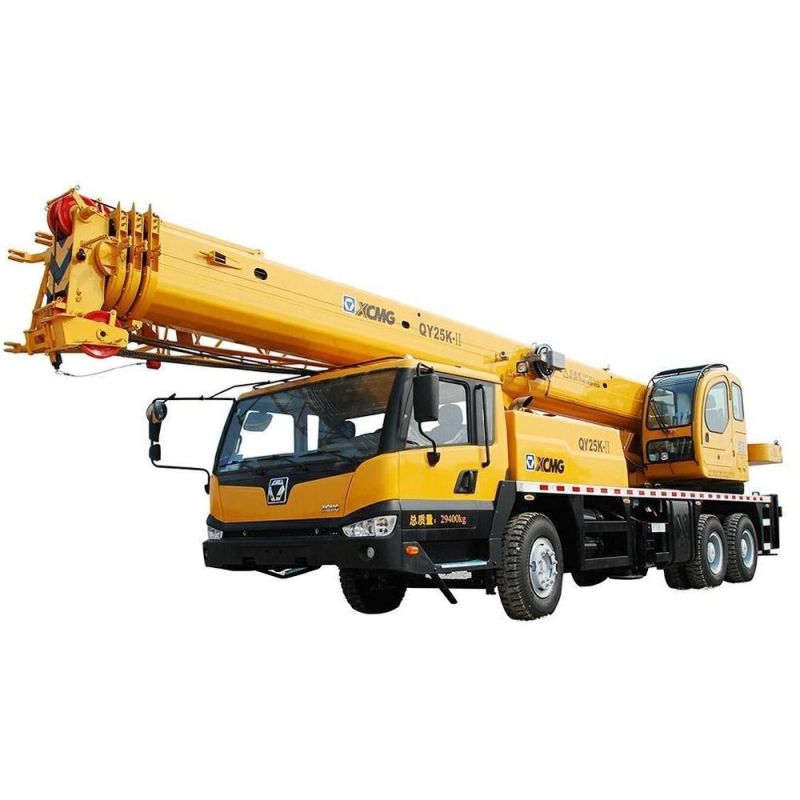

XCMG QY25K-II 25 ton hydraulic mobile truck crane

QY25K truck crane was developed by our company in 2000.Its travel and working performance are greatly improved.

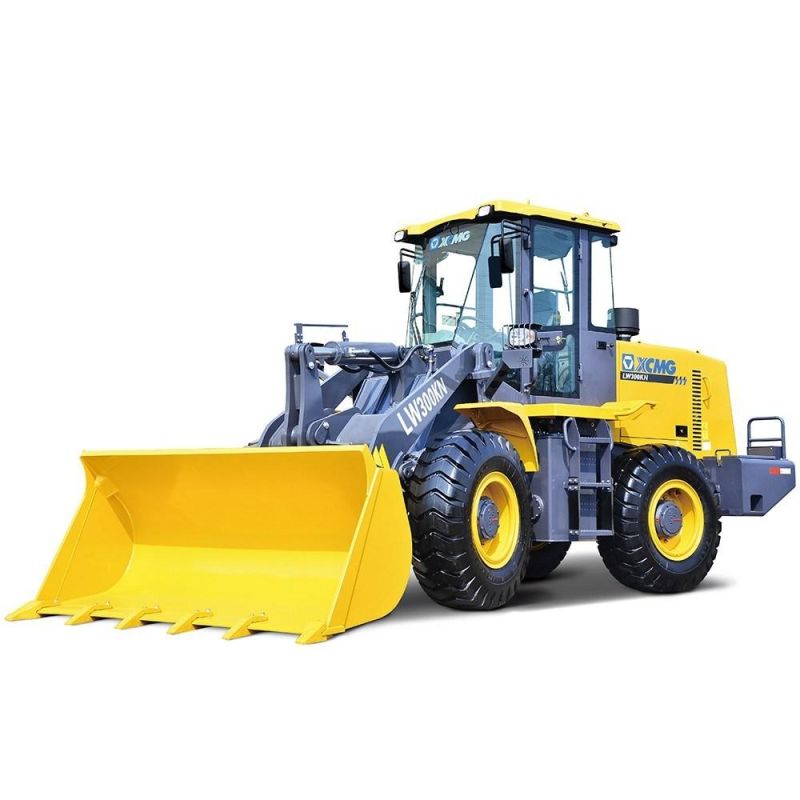

XCMG LW300KN 3 ton wheel loader

High energy-conservation, efficiency, reliability, and comfort.

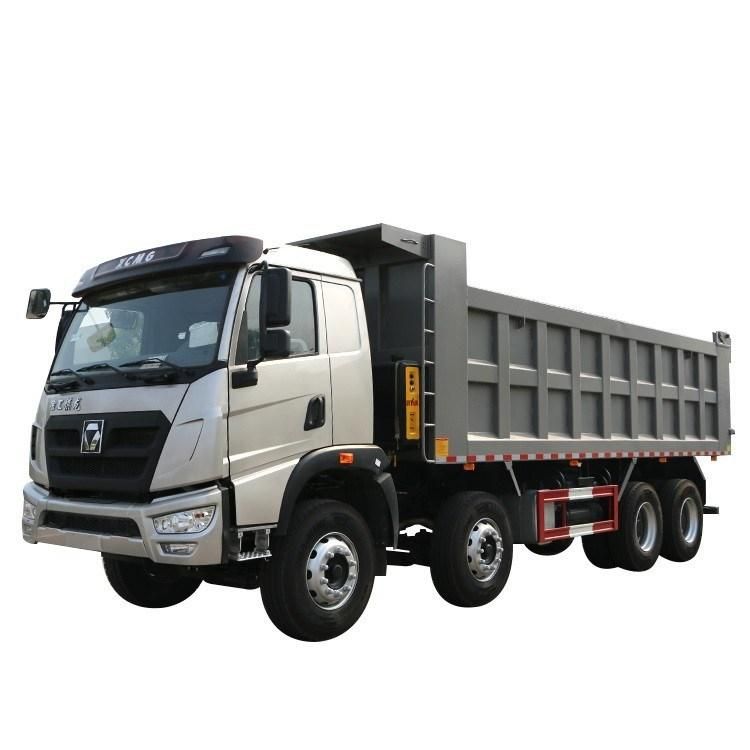

XCMG 8x4 25m3 dump truck XGA3310D2WE

T series, tiltable cab, with air-condition & ventilation, adjustable driver's seat and single sleeper to realize high operation safety and comfort.

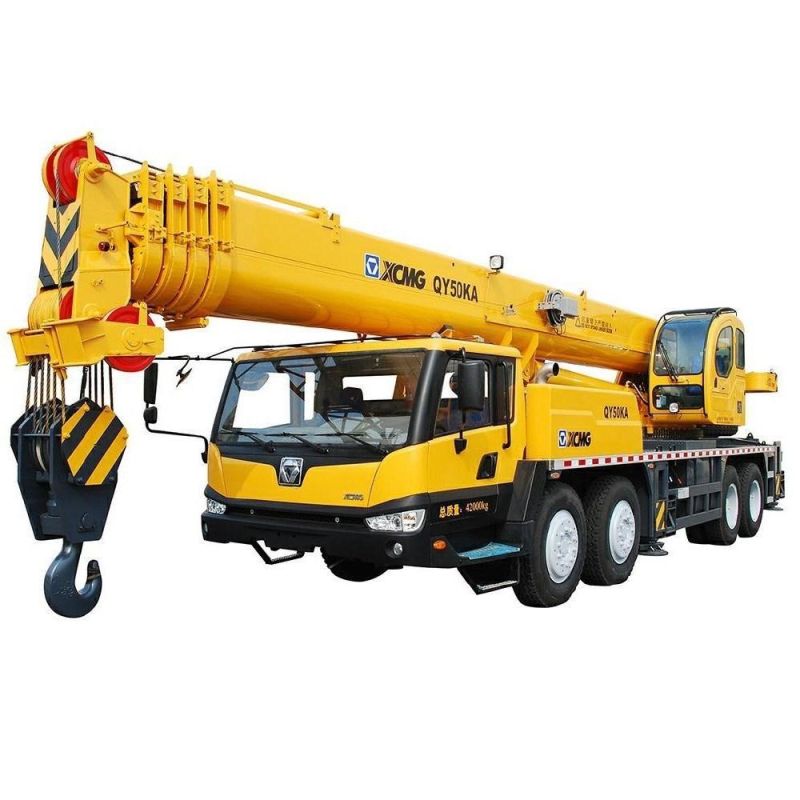

XCMG QY50KA 50 ton hydraulic mobile truck crane
