• MOQ：1
• Delivery：15 Days
• Payment：Tt
• Material：20 Crmo
• OEM：Yes
• Transport Package：Plywood
• Trademark：Chengtai
• Origin：Yantai China
• Production Capacity：3000

Basic Info.

MOQ 1 Delivery 15 Days Payment Tt Material 20 Crmo OEM Yes Transport Package Plywood Trademark Chengtai Origin Yantai China Production Capacity 3000

Product Description

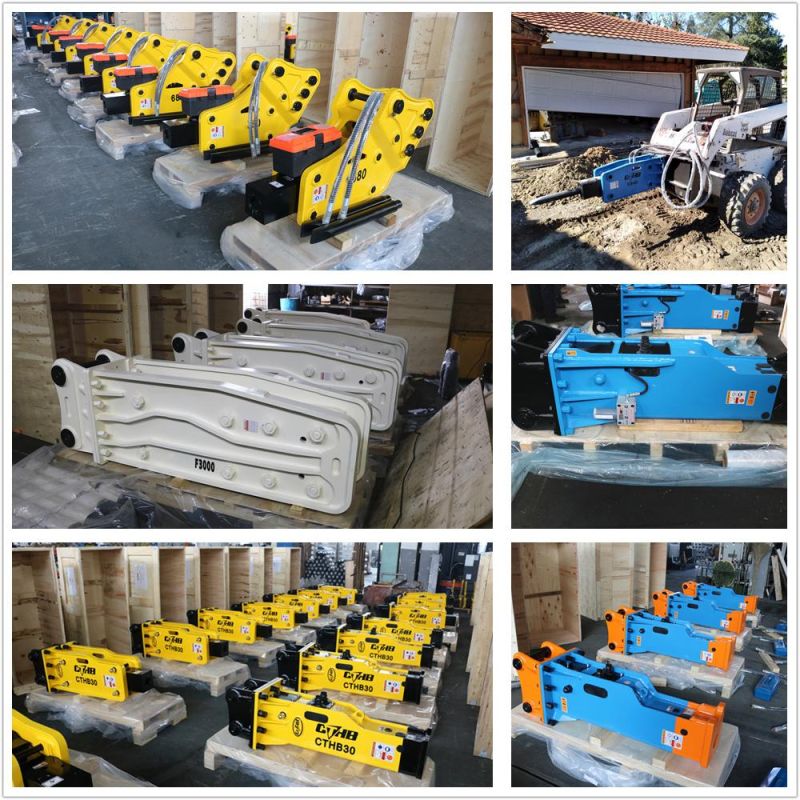

1.Products photo




2.How to choose breaker according your excavator

Excavator (loader)weight	Excavator (loader)Brand	Suit breaker model	Chisel diameter
0.8-2.5Ton	Any Brand	CTHB10	40mm
1.2-3Ton	Any Brand	CTHB20	45mm
2.5-4.5Ton	Any Brand	CTHB30	53mm
4-7Ton	Any Brand	CTHB40	68mm
6-9Ton	Any Brand	CTHB43	75mm
7-14Ton	Any Brand	CTHB45	85mm
10-15Ton	Any Brand	CTHB50	100mm
18-26Ton	Any Brand	CTHB81	140mm
28-35Ton	Any Brand	CTHB121	155mm
30-45Ton	Any Brand	CTHB131	165mm
30-50Ton	Any Brand	CTHB140	165mm
35-45Ton	Any Brand	CTHB151	175mm
40-55Ton	Any Brand	CTHB151F	175mm
45-55Ton	Any Brand	CTHB190	190mm

3.Different type of hydraulic breaker

Type	Picture	Advantage

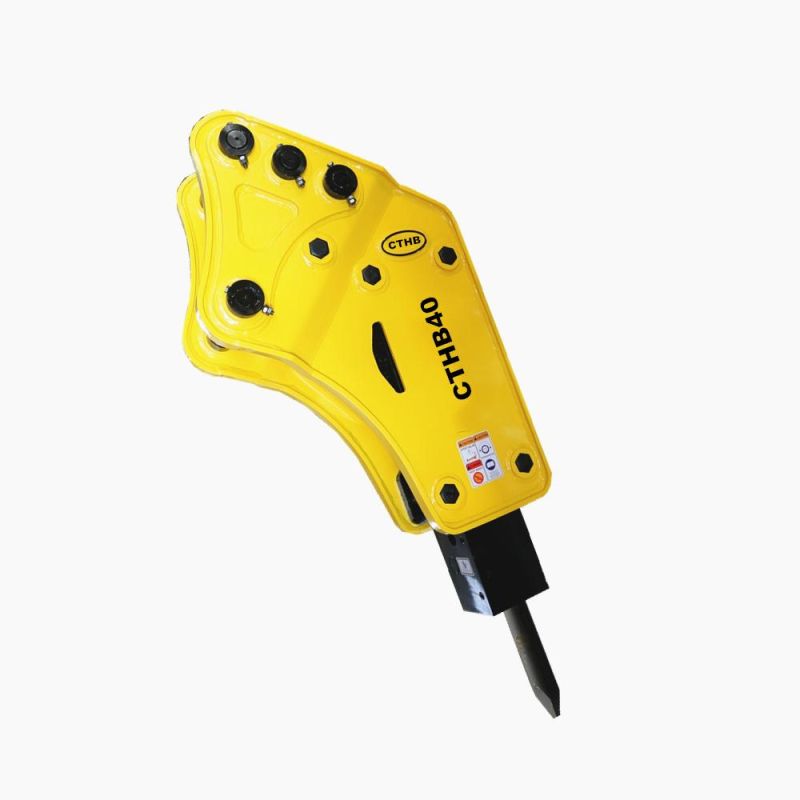

Side type		Reducing total-length more convenience to handle the breaking object easy maintenance

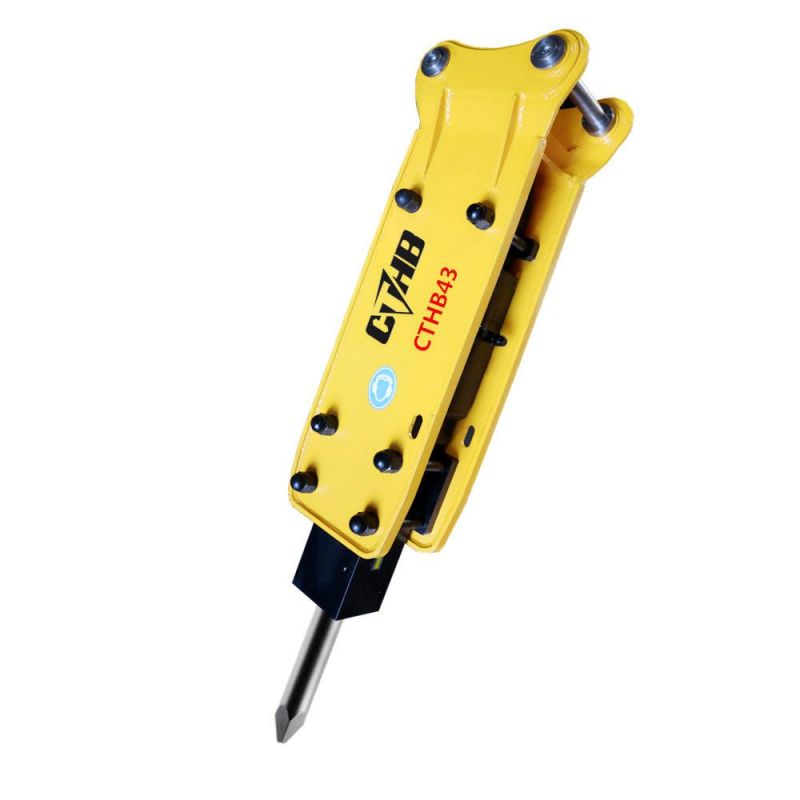

Top type/Open type		Easy control and easy-position make it more convenience to excavator . Without side-weight ,reducing the rute of chisel breakage Longer total-length and heavier total-weight

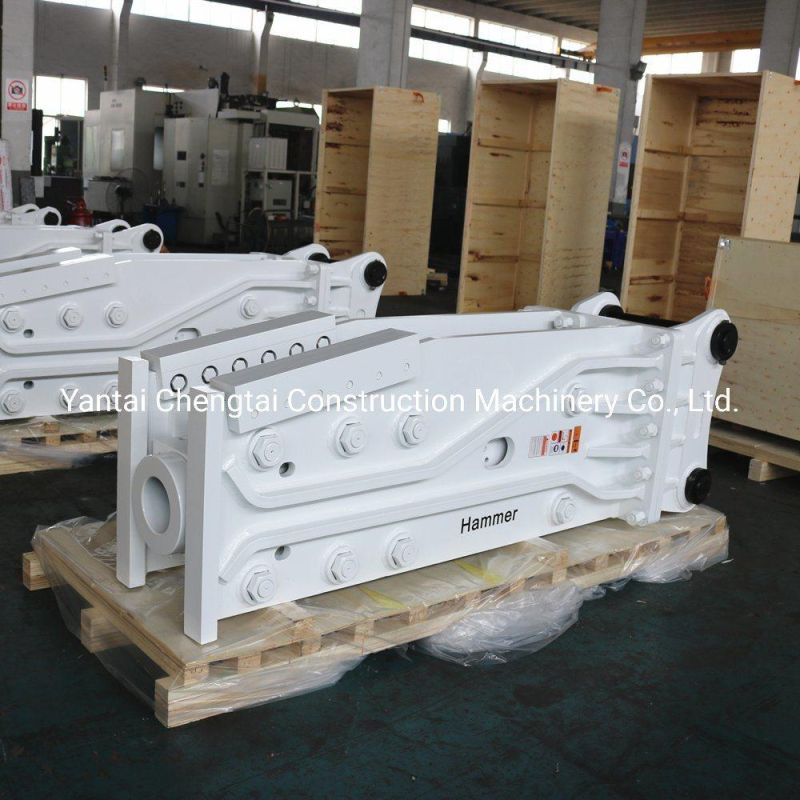

Silenced/Box type		Low noise level Full-closed bracket protects the main-body from damage

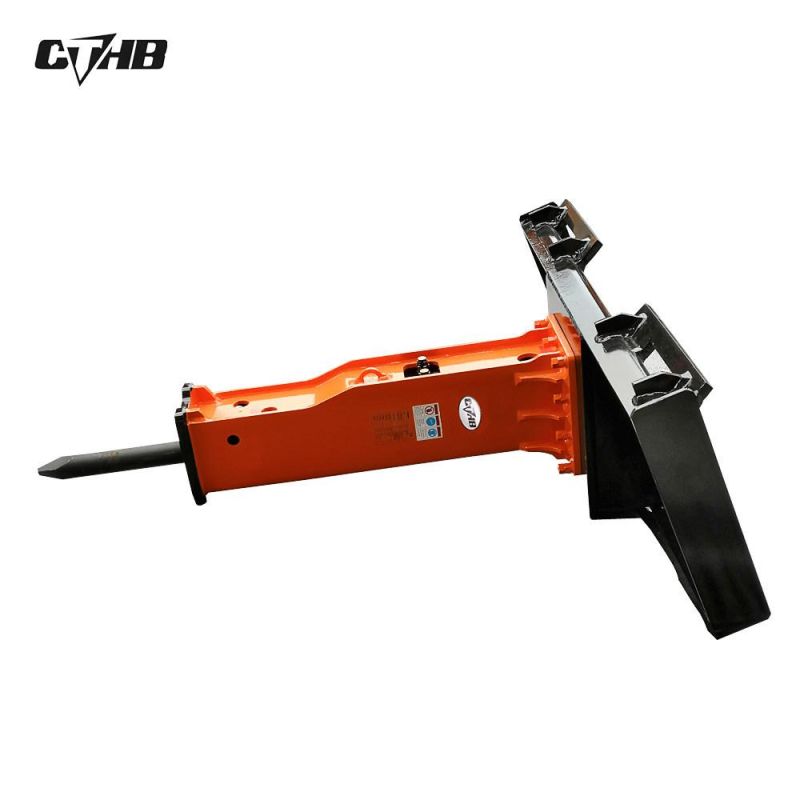

Backhoe loader type		Suit for backhoe loader carrier
Skid steer loader type		Suit for skid steer loader

4.Products parameters

Items	Unit	CTHB20	CTHB30	CTHB40	CTHB43	CTHB50	CTHB70	CTHB81	CTHB121
Body weight (incl. chisel)	kg	71	89	156	214	479	850	920	1313
Total weight	kg	95	158	263	334	761	1658	2004	2968
Size (L*W*H)	mm	1090*215*435	1178*230*500	1373*295*772	1515*295*735	1900*390*910	2423*500*1202	2480*590*1335	2776*590*1382
Hydraulic oil flow	l/min	20~30	25~50	40~70	50~90	80~110	130~150	120~180	180~240
Hydraulic pressure	kg/cm2	90~120	90~120	110~140	120~150	150~170	160~180	160~180	160~180
Blow frequency	bmp	700~1200	600~1100	500~900	400~800	350-700	350~600	350~500	300~450
Chisel diameter	mm	45	53	68	75	100	135	140	155
Carrier weight	ton	1.2~3.0	2.5~4.5	4~7	6~9	10~15	CTHB70	CTHB81	28-35

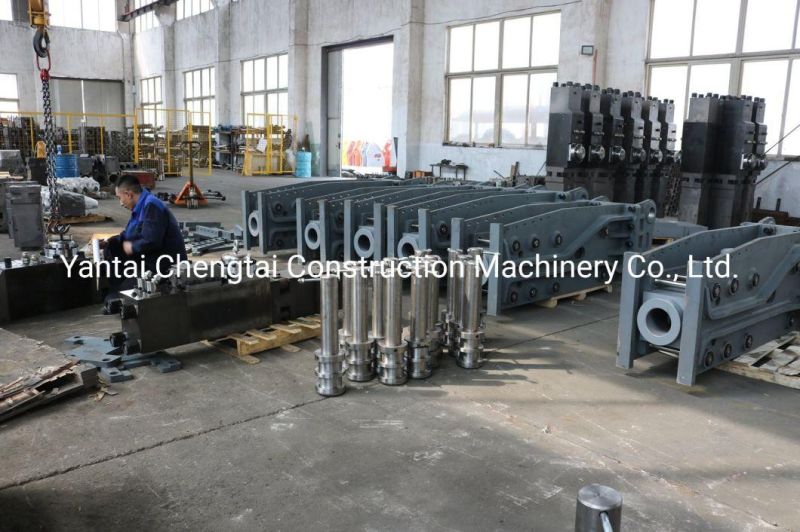

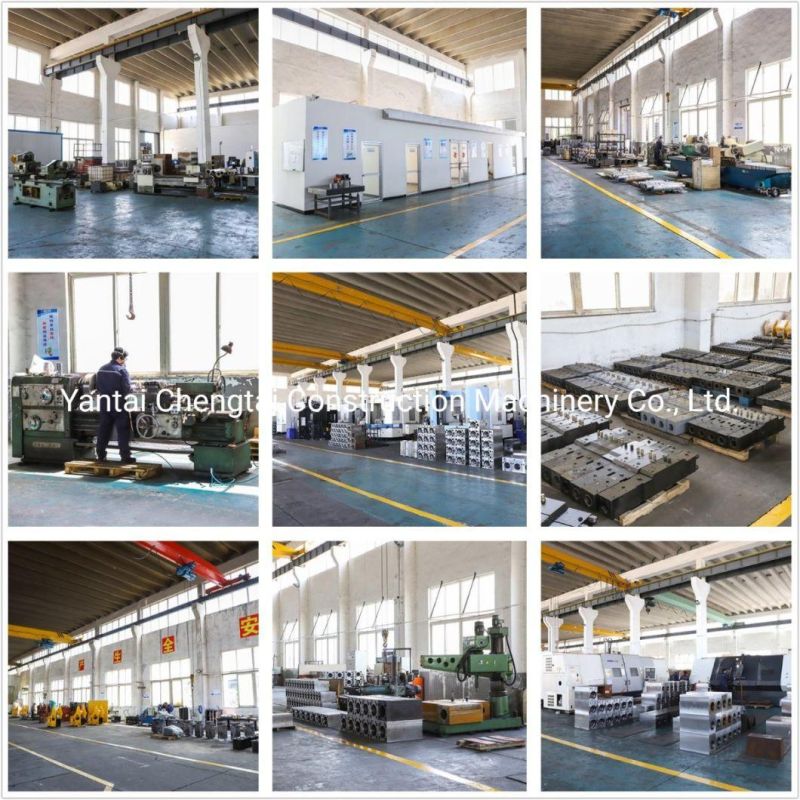

5.Our factory




6.Our exhibition




7.Our certificate

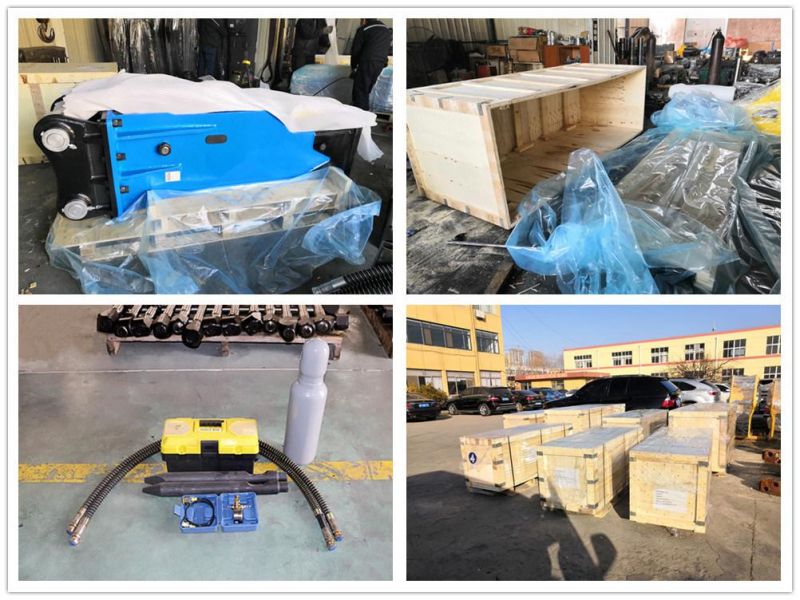

8.Packing &Spare parts &




Hydraulic Breaker Standard Accessories as follows:

1) Chisel × 2 pcs

2) Hydraulic oil Hose × 2 pcs

3) General Tool with Tool Box × 1 set

4) Manual Book in English × 1 pc

5) Nitrogen Gas Charging Kit with Hose & Gas Cylinder × 1 set



Packing

1. Standard export package by poly-wood case

2. Loading port from Qingdao or any port of China



After-service

1. 14 months warranty after delivery

2. Enough stock for wear parts

3. Competitive maintenance cost

4. High efficiency after-service respone
