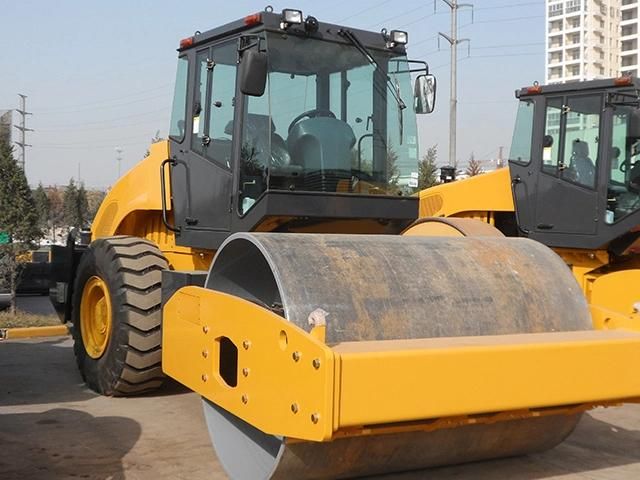

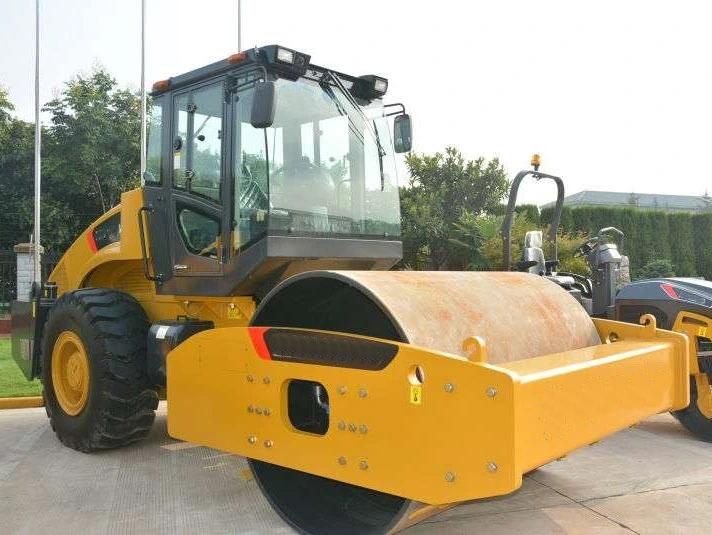

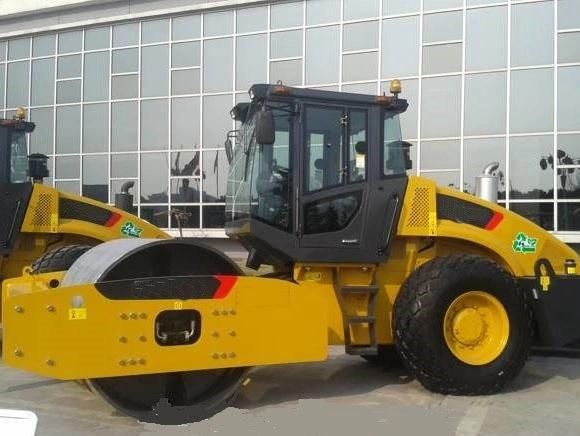

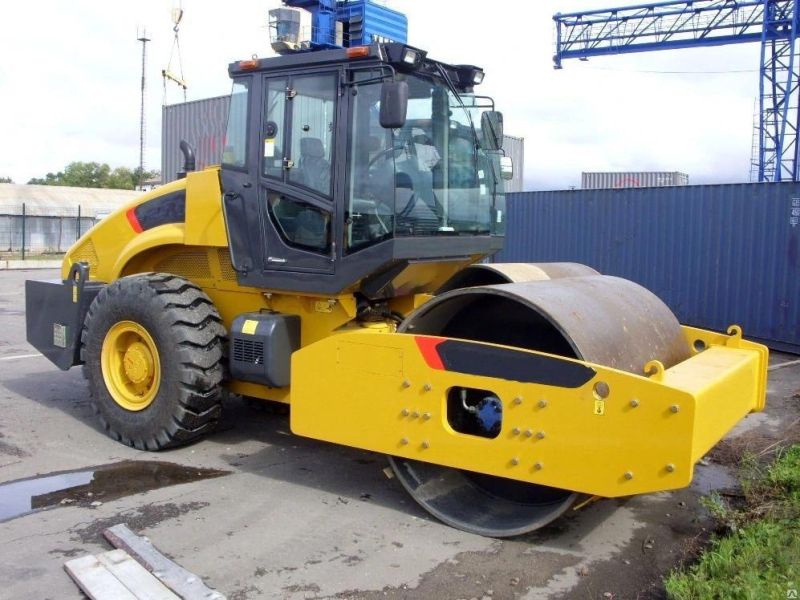

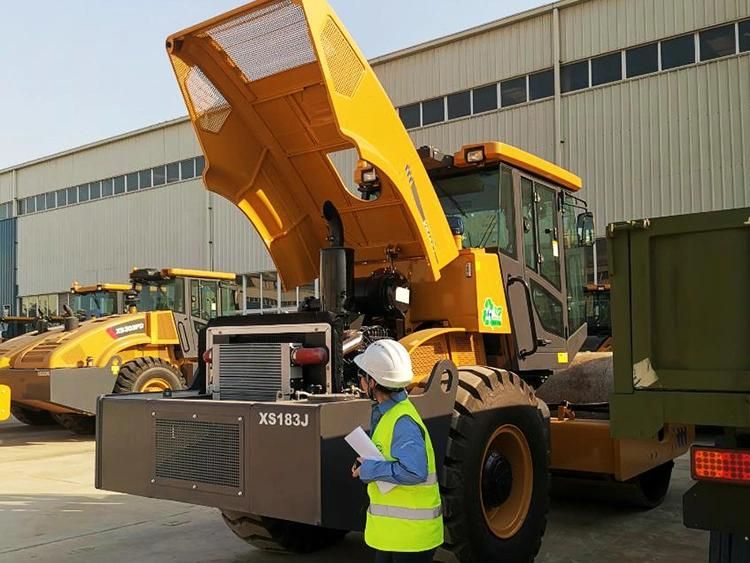

Oriemac Xs183j Single Drum Road Roller 18 Ton
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Warranty：1 Year
- Type：Road Roller
- Working Method：Vibration
- Axle：Uniaxial Monowheel
- Grinding Wheel Type：Light Grind
- Engine Type：Diesel Engine
Base Info
- Model NO.：XS183J
- Travel Speed：2.52,4.98km,H
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Operating Weight：18000kg
- Load Applied on Front Drum：9000kg
- Static Linear Load：422n,Cm
- Theoretical Gradeability：30%
- Min. Outer Turning Radius：6500mm
- Vibration Frequency：28Hz
- Nominal Amplitude (High/Low)：1.9,0.95mm
- Exiting Force (High/Low Amplitude)：320,160kn
- Transport Package：Nude
- Specification：115kw
- Trademark：ORIEMAC
- Origin：Shanghai China
- HS Code：84294019
- Production Capacity：1000 Units Per Month
Description
Description
Parameter
Unit
Operating weight
18000
kg
Distributed mass of driving wheel
9000
kg
Distributed mass of vibrating drum
9000
kg
Static linear load
422
N/cm
Vibration frequency
28/33
Hz
Theoretical amplitude
1.9/0.95
mm
Cenerifugal force
320/220
kN
Compacting width
2130
mm
Theoretical gradeability
30
%
Engine Model
SC7H160.2G3
Engine Rated speed
1800
r/min
Engine Rated power
118
kW
External dimension(length*width*height)
6220*2300*3200
mm
