• Warranty：1 Year
• Ground Pressure：28.5kpa
• Operating Weight：1795kg
• Rated Speed：9.5r,Min
• Moving Type：Crawler Excavator
• Maximum Digging Height：3475mm
• Bucket Digging Force：16kn
• Transport Package：Comply with Export Packaging Requirements
• Trademark：XCMG
• Origin：Jiangsu, China

Basic Info.

Warranty 1 Year Ground Pressure 28.5kpa Operating Weight 1795kg Rated Speed 9.5r/Min Moving Type Crawler Excavator Maximum Digging Height 3475mm Bucket Digging Force 16kn Transport Package Comply with Export Packaging Requirements Trademark XCMG Origin Jiangsu, China

Product Description

Product Description

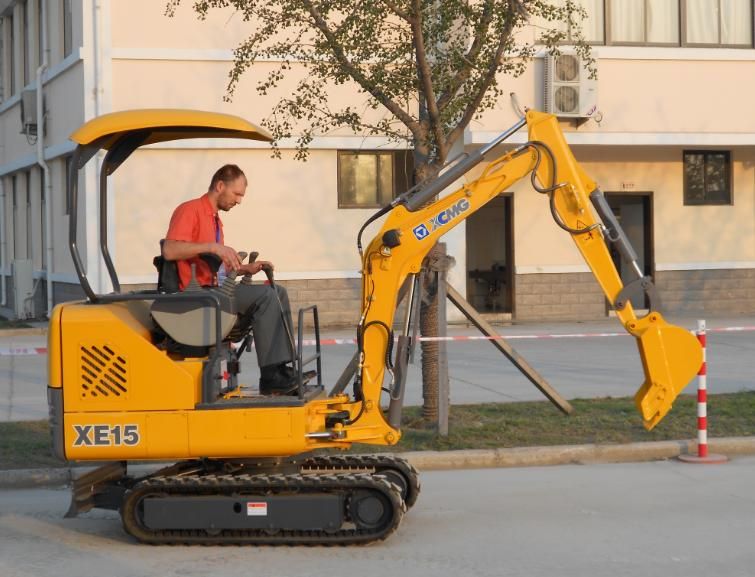

XCMG 1.5 ton XE15U hydraulic mini crawler excavator.

XCMG's new-generation "U-series" small-sized taillessexcavatorsare flexible, efficient, reliableand durable.With strong power, the excavatorsare efficient and energy-saving. The new-generation hydraulic components are more efficient and more reliable, and have high control precision, strong digging force, and excellent operational efficiency. The "boom deflection" function cooperates with the taillessrotating design and perfectlyadapts to operations in limited space. The "chassis extension and retraction" function improves the vehicle's trafficability. Concealed working pipes can be efficiently protected. The rear hood can beopened in an integrate way, which isconvenientto maintain.

Producr ShowSpecification

Description	Unit	Parameter value
Operating weight	Kg	1795
Bucket capacity	m3	0.04
Engine No. of cylinders	/	3
Engine Output power	kw/rpm	9.8/2300
Engine torque/speed	N.m	44.5/1800
Engine Displacement	L	0.778
Main performance Travel speed(H/L)	km/h	4.3/2.2
Main performance Rotating speed	r/min	9.5
Main performance Gradeability	°	30°
Main performance Ground pressure	kPa	28.5
Main performance Bucket digging force	kN	16
Main performance Arm crowd force	kN	10
Main performance Maximum traction	kN	15.6
Hydraulic system Main pump	/	/
Hydraulic system Rated flow of main pump	L/min	56.8
Hydraulic system Pressure of prime valve	MPa	22
Hydraulic system Pressure of travel system	MPa	22
Hydraulic system Pressure of swing system	MPa	11
Hydraulic system Pressure of pilot system	MPa	3.9
Hydraulic system Max. digging height	mm	3475
Working scope Max. dumping height	mm	2415
Working scope Max. digging depth	mm	2290
Max. vertical wall digging depth	mm	1750
Working scope Max. digging reach	mm	3900
Working scope Min. swing radius	mm	1530

You May Like

20 ton XE215C Crawler

Excavator.

EnvironmentalEnergy-savingLarge power engine,XE215C is suitable for earth and stone construction projects,it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency.

3.5 ton XE35U mini Crawler Excavator.

The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

37 ton XE370D hydraulic crawler mining excavator.

XE370D excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, mines, tunnels and other harsh construction environment.

15 ton XE150WB hydraulic Wheel Excavator .

As a model featuring sufficient flexibility, high fuel efficiency and operation reliability in accordance with the North America and Euro-III emission standards, able to be widely used in municipal construction, highway bridges, housing construction.

6 Ton XE60WA hydraulic wheel excavator.

The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts. This machine features sufficient flexibility, convenient transitions, high fuel efficiency and good maneuverability.

5 ton XE55D small hydraulic Crawler Excavator.

The complete machine is small,mainly suitable for landscaping, urban construction, pipeline laying and other working conditions.Featuring low noise and excellent economical efficiency.



Top Selling

50ton qy50ka hydraulic telescopic boom truck crane.

Leading lifting performance and traveling performance.mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry.

5 ton front end loader ZL50GN  wheel loader.

High torque and high efficiency drive chain features reasonable matching.the 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.

5 ton XE55D Mini hydraulic Crawler Excavator.

The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.the highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

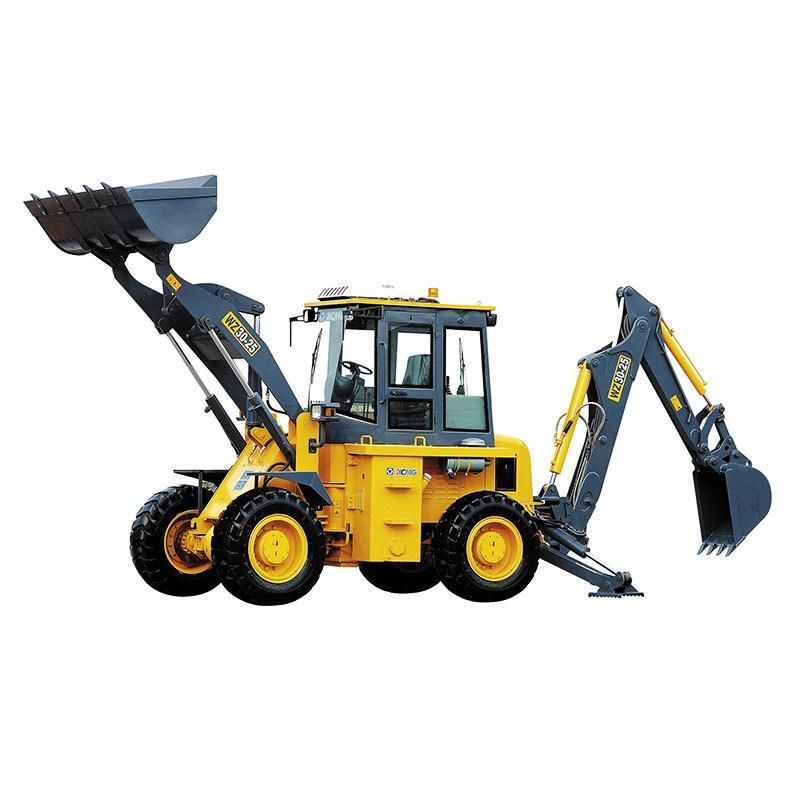

WZ30-25 2.5 ton mini backhoe

 loader.

Having adopted four wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.It is extensively used in the road maintenance, farms and developments, getting clay for making brick, piping builds.etc.

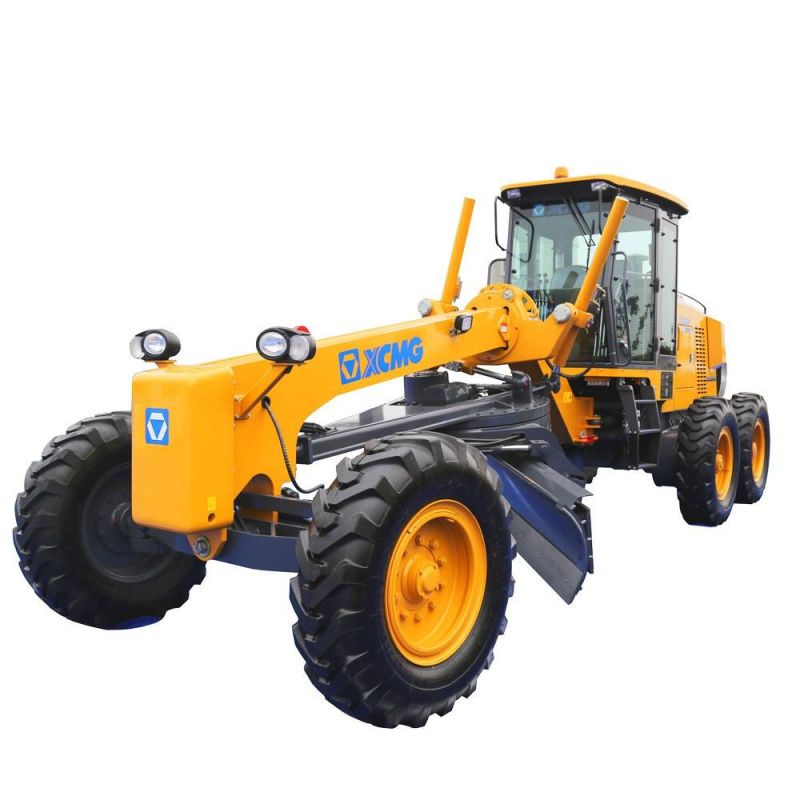

135PH Motor Grader gr135.



The GR135 adopts a Dongfeng 6BT5.9-C130-II turbocharged diesel engine, which has a large output torque and power reserve factor and low fuel consumption.

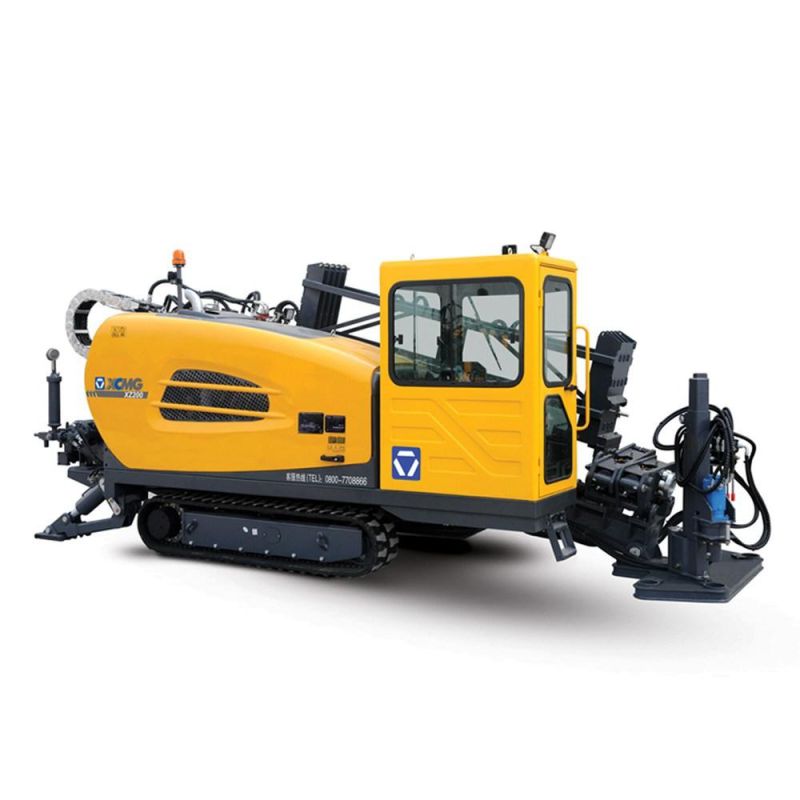

xz200 Horizontal Directional Drill (HDD).
