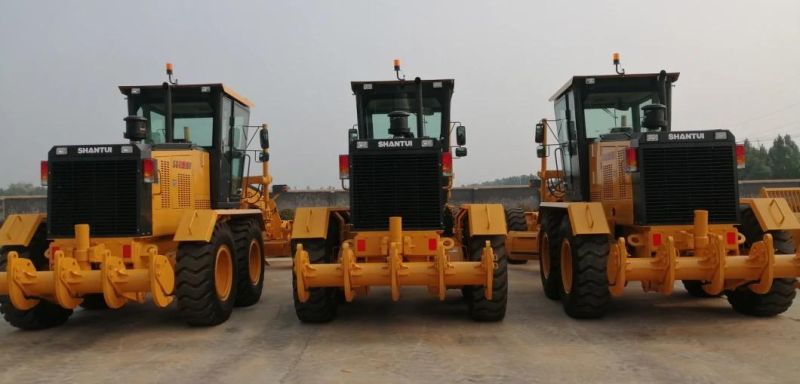

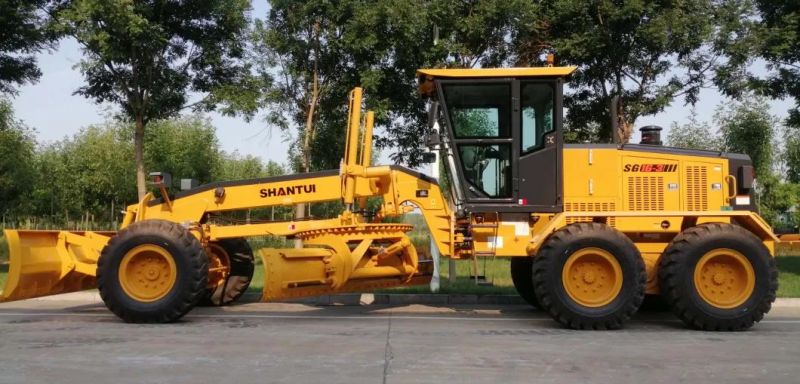

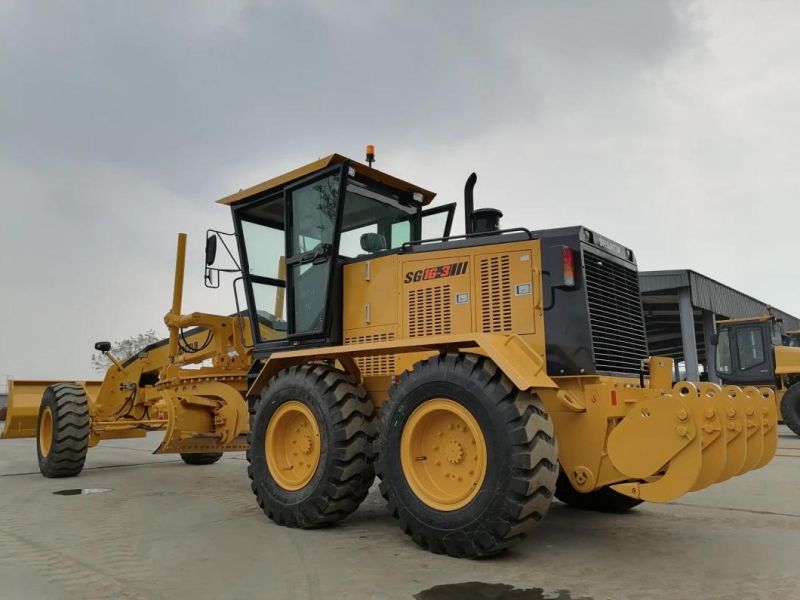

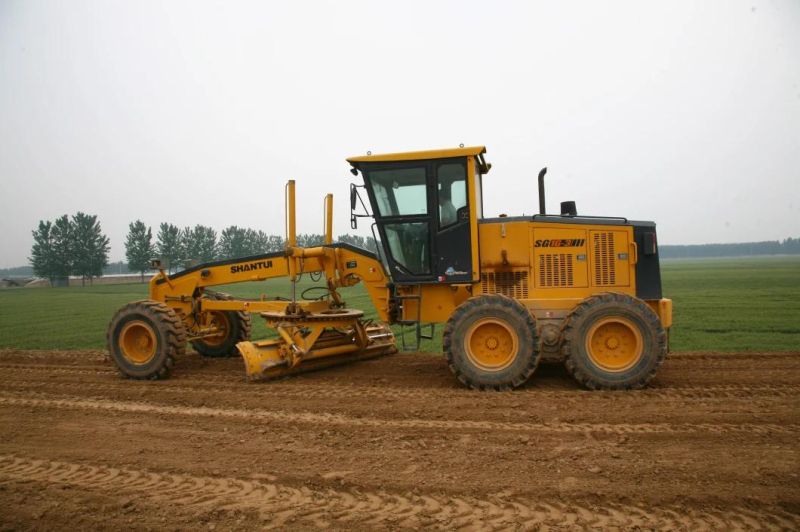

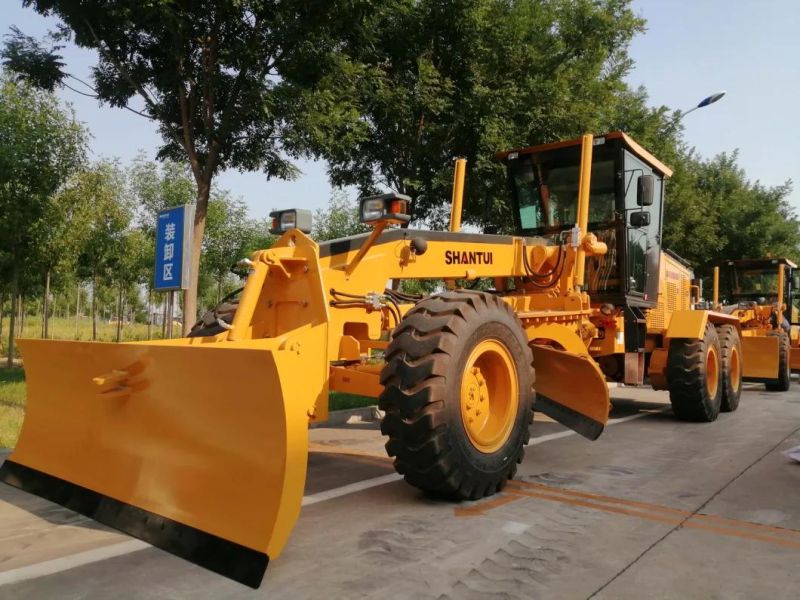

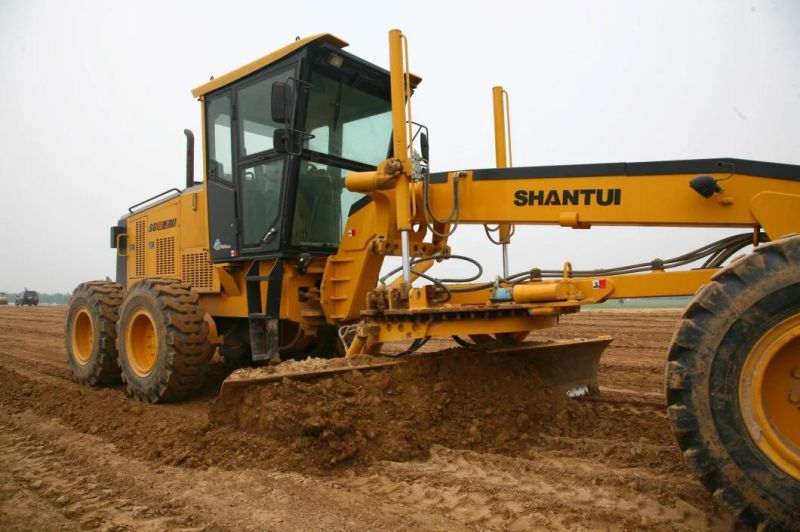

Shantui 160HP Motor Grader Sg16-3 with Front Blade and Rear Ripper
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
- Walking Mode：Wheeled
Base Info
- Model NO.：SG16-3
- Type：Large Grader
- Operating Weight of Machine (Kg)：15100
- Wheelbase (mm)：6260
- Wheel Tread (mm)：2155
- Minimum Ground Clearance (mm)：430
- Steering Angle of Front Wheels (°)：±45
- Articulated Steering Angle (°)：±25
- Maximum Traction Force (Kn)：79.3
- Turning Radius (mm)：7,800 (Outer Side of Front Wheel)
- Maximum Gradeability (°)：20
- Width of Shovel Blade (mm)：3660
- Length (mm)：8726
- Width (mm)：2600
- Heigh (mm)：3400
- Engine Model：6btaa5.9-C160
- Rated Power/Rated Speed (Kw/Rpm)：118kw,2200
- Transport Package：Nude
- Specification：120kw
- Trademark：shantui
- Origin：Shandong China
- HS Code：84292090
- Production Capacity：1000 Units Per Month
Description
Product DescriptionSpecificationProduct Show
