Concrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/H

HENAN SHENGMAO MACHINERY CO., LTD.
  • Type：Concrete Mixing Plant
  • Shotcrete Type：Wet
  • Machining Process：Concrete Wet Mix
  • Structure：Skip Hoist
  • Productivity：90m²,h
  • Certification：ISO9001: 2000, CE

Base Info

  • Model NO.：HZS90
  • Condition：New
  • Concrete Mixer：Js1500
  • Aggregate Batcher：PLD2400
  • Aggregate Feeding Mode：Belt Conveyor
  • Max. Aggregate Size (mm)：60,80
  • Discharging Height (M)：4.1
  • Total Power (Kw)：156
  • Control System：Computer
  • Transport Package：Container Transportation
  • Trademark：shengmao
  • Origin：China
  • HS Code：8474310000
  • Production Capacity：100

Description

                              Skip hoist type concrete batching plantModelHZS25HZS35HZS50HZS75Production capacity (m3/h)25355075Concrete mixerJS500JS750JS1000JS1500Aggregate feeding modeSkip HoistSkip HoistSkip HoistSkip HoistAggregate size (mm)80/6080/6080/6080/60Discharging height(m)3.83.84.14.1Aggregate weighing accuracy (%)±2±2±2±2Cement weighing accuracy (%)±1±1±1±1Fly ash weighing accuracy (%)±1±1±1±1Water weighing accuracy (%)±1±1±1±1Additive weighing accuracy (%)±1±1±1±1Total weight (T)1013.518.525Total power (T)6575100110Control systemPanelComputerComputerComputer
Concrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/H

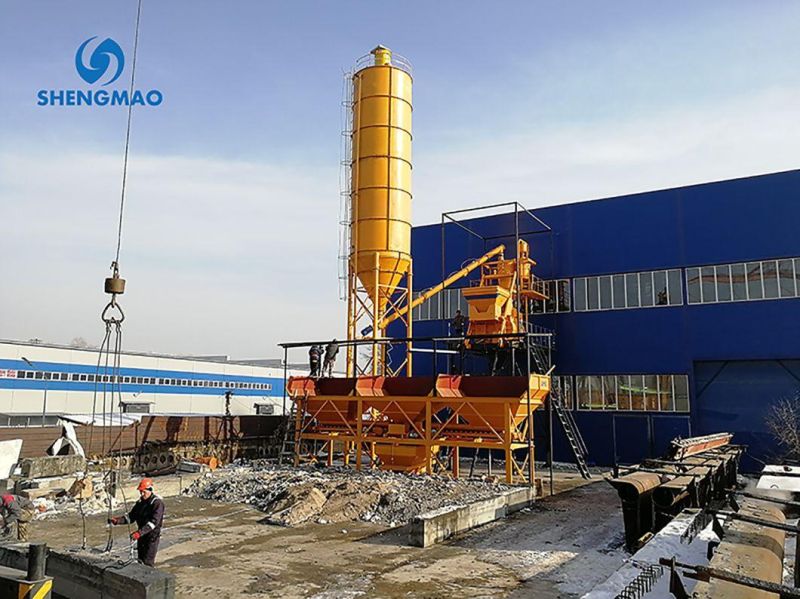

Skip hoist type concrete batching plant Features compared to belt type batching plant:
1.Cost-saving;
2.Easy to install;
3.Easy to move to other job sites;
4.Labor-saving.

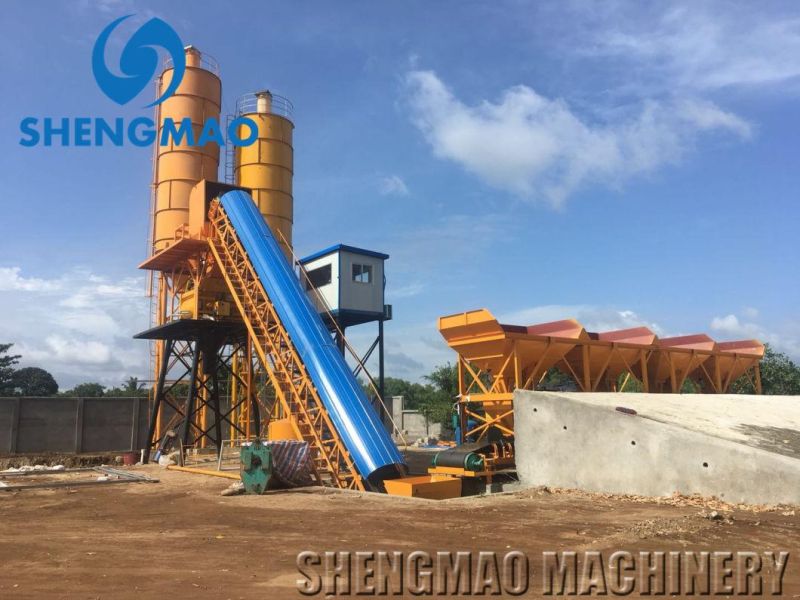

 Belt conveyor type concrete batching plantModelHZS60HZS90HZS120HZS180Production capacity (m3/h)6090120180Concrete mixerJS1000JS71500JS2000JS3000Aggregate feeding modeBelt conveyorBelt conveyorBelt conveyorBelt conveyorAggregate size (mm)80/6080/6080/6080/60Discharging height(m)4.14.14.14.1Aggregate weighing accuracy (%)±2±2±2±2Cement weighing accuracy (%)±1±1±1±1Fly ash weighing accuracy (%)±1±1±1±1Water weighing accuracy (%)±1±1±1±1Additive weighing accuracy (%)±1±1±1±1Total weight(T)28406588Total power(T)110156200260Control systemComputerComputerComputerComputer
Concrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/H

Belt conveyor type concrete batching plant Features compared to skip hoist type batching plant:
1. higher production efficiency;
2. more environment-friendly;
3. higher quality of concrete.
 Detailed Images

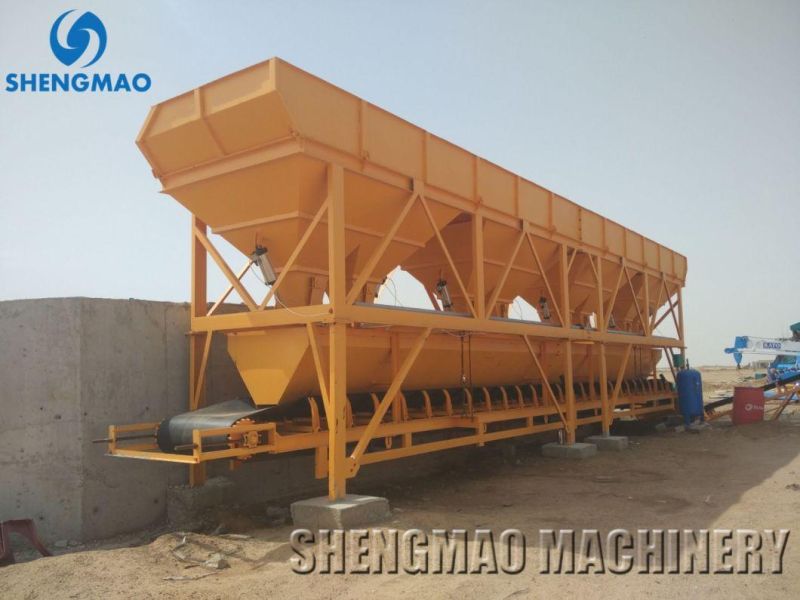

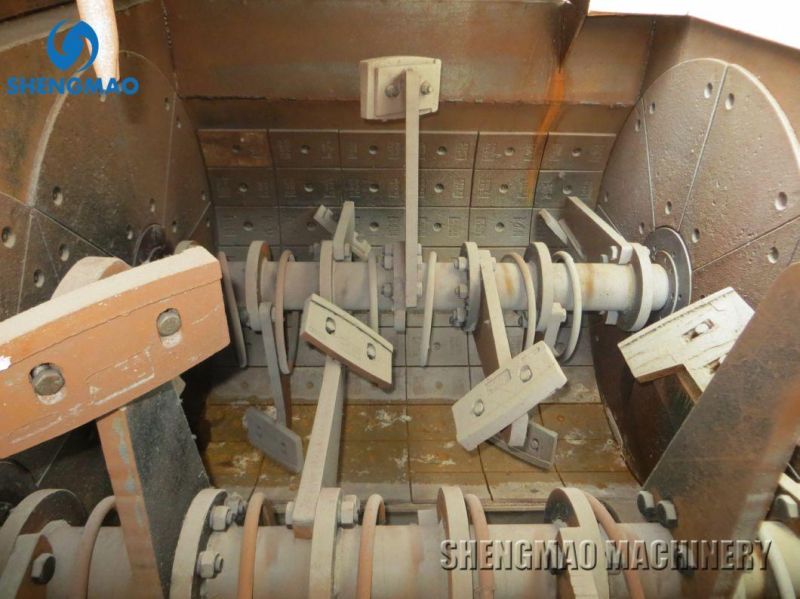

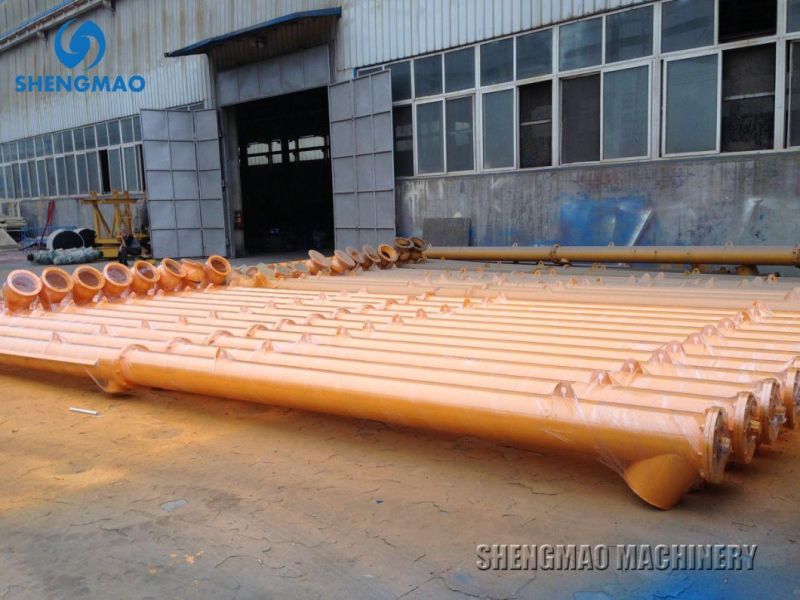

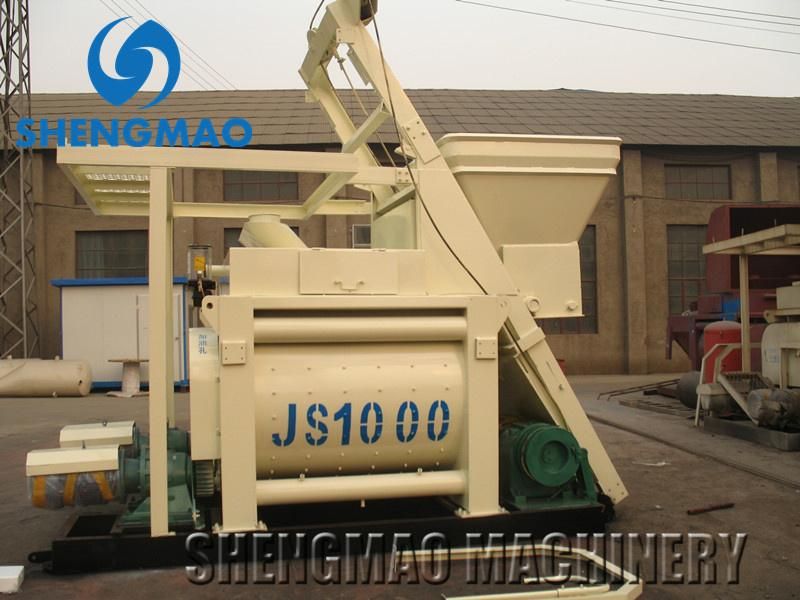

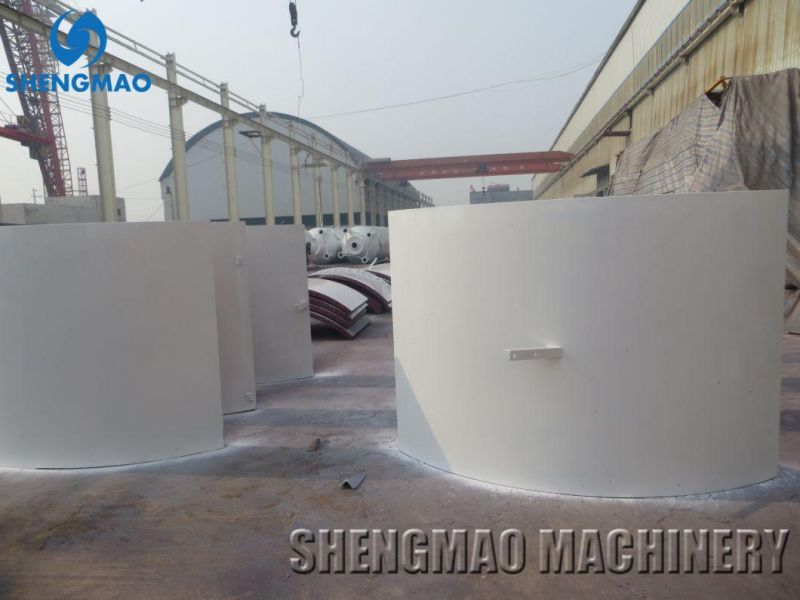

Concrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/HConcrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/H

Concrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/HConcrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/H

Concrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/HConcrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/H

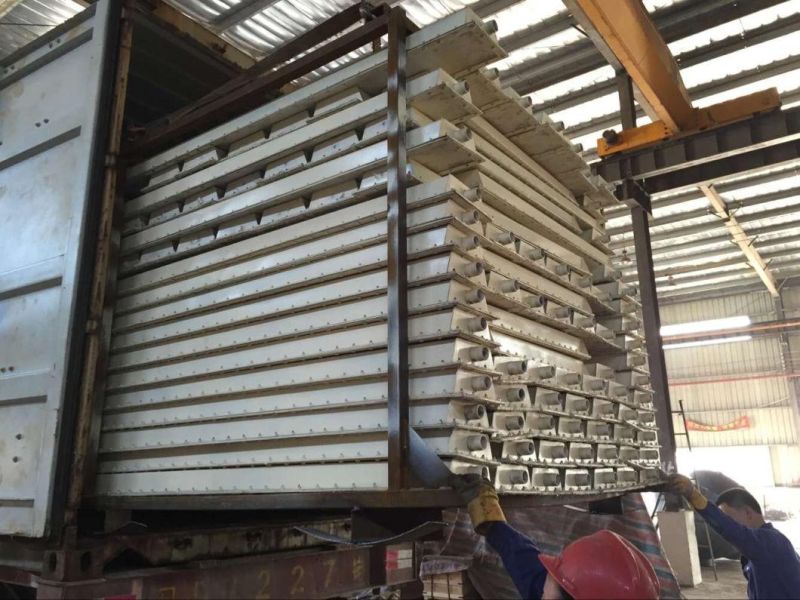

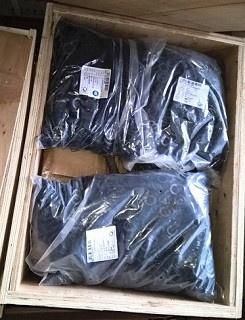

Packing&Shipping
Concrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/H
Concrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/HConcrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/HConcrete Batching Mixing Station Two Shaft Concrete Mixer 90m3/HAfter-sales service:1. Provide 7 * 24 hours online after-sales service every week
2. Provide relevant certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Dispatch after-sales engineers to install and commission equipment abroad, and provide free training for operators and maintenance personnel for operation and maintenance
4. Establish a complete customer profile, regular inspections, regular visits, free maintenance services, and technical improvements
5. Equipped with a spare parts warehouse, you can guarantee the fast supply of all accessories. During the warranty period, the parts required for equipment damage will be borne by the company, the customer does not have to pay any fees
