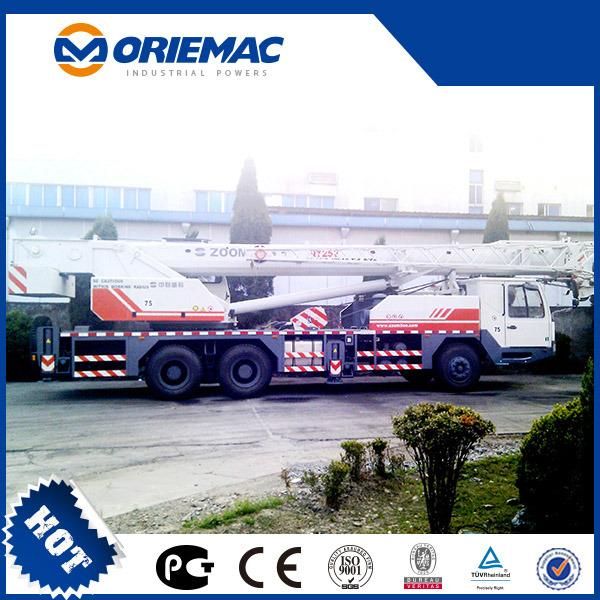

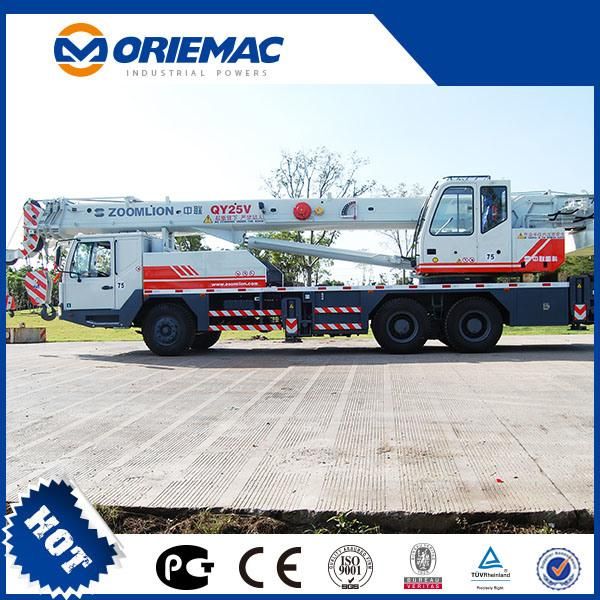

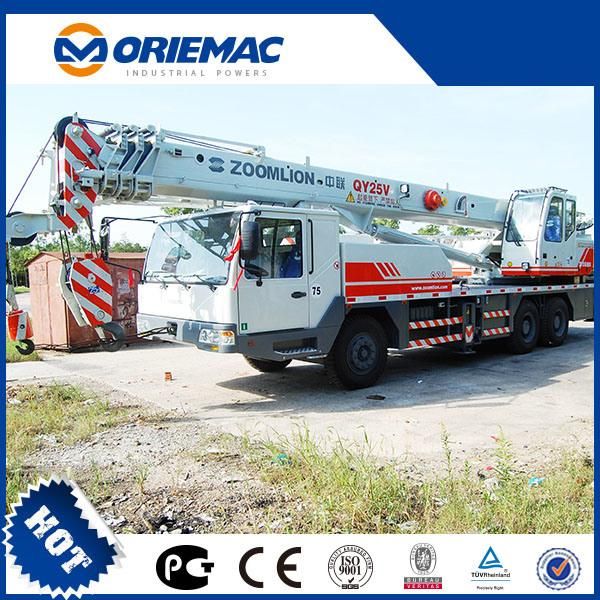

Zoomlion Brand 25 Ton Hydraulic Mobile Truck Crane (QY25V441)
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Transport Package：Nude Packing
- Specification：CE, ISO
- Origin：China
Base Info
- Model NO.：QY25V441
Description
Item
Value
Remarks
Working performance
Max. rated lifting capacity kg
25000
Max. load moment of basic boom kN.m
980
Max. load moment of max. boom length kN.m
494
Max. lifting height of basic boom m
11.0
Max. lifting height of boom m
39
Deformation of the boom is not taken into consideration.
Max. lifting height of jib m
47.0
Working speed
Max. hoist rope speed (main winch) m/min
120
At 4 Traveling specifications
Max. traveling speed km/h
78
Max. gradeability %
37
Min. turning diameter m
≤22
Min. ground clearance mm
220
Limits for exhaust pollutants and smoke
Meet with related standards
GB3847-2005
GB17691-2005
(National stage III)
Oil consumption per hundred kilometers L
45
Weights
Deadweight in traveling condition kg
31700
Complete vehicle kerb mass kg
31570
Front axle load kg
6900
Rear axle load kg
24800
Dimensions
Overall dimensions (L×W×H)mm
12700×2500×3450
Longitudinal distance between outriggers m
5.36
Transversal distance between outriggers m
6.1
Boom lengthm
10.4~39.2
Boom angle°
-2~80
Jib lengthm
8
Offset°
0 , 30
Chassis
Model
ZLJ5325
Code:ZLJ5325V3
Class
II
Engine
Model
WP10.270
Rated power kW/r/min
199/2200
Max. output torque N.m/r/min
1100/1300 ~1600
