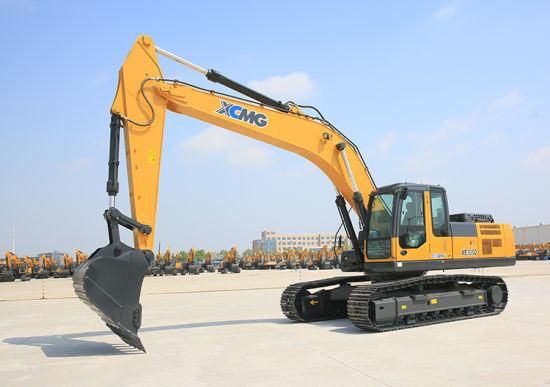

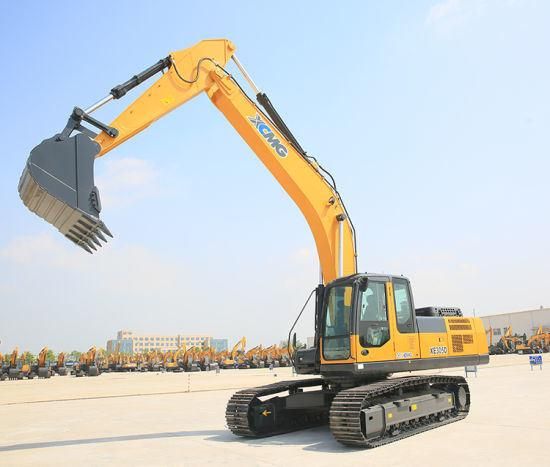

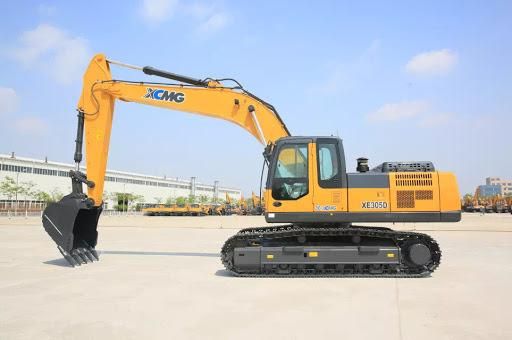

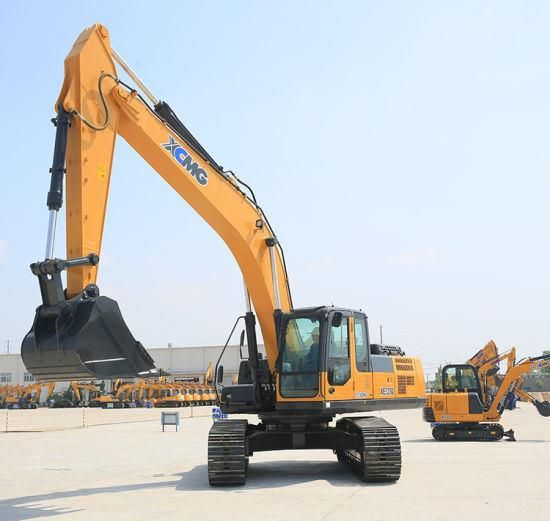

• Model NO.：XE305D
• Size：Large-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Model：Qsb7
• No. of Cylinders：6
• Output Power：169,2050 Kw, R,Min
• Gradeability：70%
• Rotary Speed：9.8 R,Min
• Transport Package：Bude Packing
• Specification：10645* 3190* 3410 mm
• Origin：Jiangsu, China
• HS Code：8429521200
• Production Capacity：5000PCS,Year

Main parameters and price as below, customerized equipment according to your work condition is acceptable. DescriptionUnitParameter value Operating weightkg30800 Bucket capacitycbm1.2-1.6 Engine ModelEngineQSB7 No. of cylinders---6 Output powerkW/ r/min169/2050 torque/speedN.m895/1250 DisplacementL6.7 Travel speed(H/L)km/h5.2/3.1 Gradeability%70 Rotary speedr/min9.8 Ground pressurekPa60 Bucket digging forcekN198 Arm digging forcekN138 Main pump--K5V140DTP Rated flow of main pumpL/min2×140 Main safety valve pressureMPa34.3/37 Pressure of pilot systemMPa3.9 Fuel tank capacityL520 Hydraulic tank capacityL270 Engine oil capacityL20 Overall lengthmm10645 Overall widthmm3190 Overall heightmm3410 Width of platformmm3050 Length of crawlermm4944 Overall width of chassismm3190 Width of crawlermm600
