Qingzhou Chuanhong Agricultural Equipment Co., Ltd.- After-sales Service：Supply Small or Light Part in Warranty
- Warranty：One Year or 1500 Working Hours
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
Base Info
- Drive Type：Diesel
- Bucket Capacity：>1.5m³
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Weight：48.9t
- Engine Rated Power：238kw
- Swing Speed：10.3min-1
- Boom Length：6300mm
- Arm Length：2900mm
- Transport Length：12230mm
- Transport Arm Height：3705mm
- Tumblers Distance：4475mm
- Radius of Gyration Platform End：3800mm
- Maximum Digging Depth：7795mm
- Maximum Digging Height：10787mm
- Maximum Unloading Height：7915mm
- Maximum Digging Radius：11800mm
- Minimum Turning Radiusc：5210mm
- Color：as Requirements
- Transport Package：No Package
- Specification：LQ520
- Trademark：LUQING
- Origin：Qingzhou City, Shandong Province, China
- HS Code：84295212
- Production Capacity：1000
Description
Performance parametersWeight 48.9T Bucket capacity 2.4m3 Engine rated power 238KW Swing speed 10.3min-1 Travel speed (high/low) 5.3/3.1km/h Ground specific pressure 0.9 kg/cm2 Gradeability (%) 70 Digging force Standard 267KN Boom length 6300mm Arm length 2900mm Maximum digging depth 7795mm Maximum digging height 10787mm Maximum unloading height 7915mm Maximum digging radius 11800mm Minimum turning radiusc 5210mm Transport length 1 2230mm Transport arm height 3705mm Tumblers distance 4475mm Radius of gyration platform end 3800mm Counter weight ground clearance 1460mm Track gauge 3303/2743mm Total width of undercarriage 3900mm Width of upper structure 3340mm Width of track shoe 600mm Ground clearance 770mm Total length of travel mechanism 5455mm Total width of cabin 1010mm Cabin height 845mm

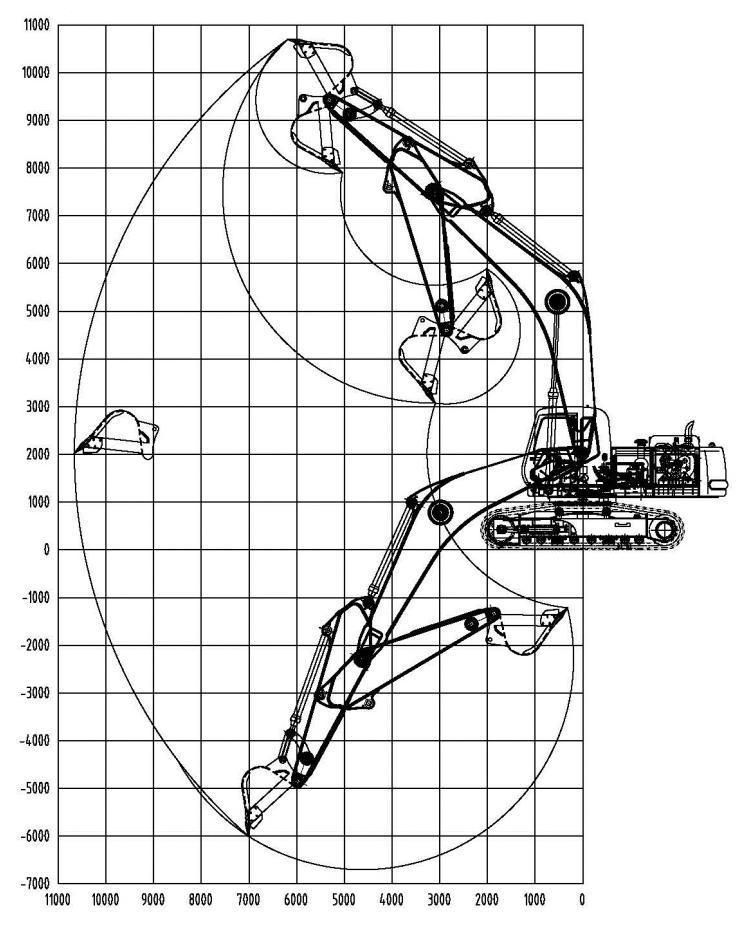

Diagrammatic drawing
Diagrammatic drawing
