• Model NO.：SHANTUI
• Transport Package：Nude Packing by Roro
• Specification：9430*2600*3400mm
• Trademark：shantui
• Origin：China
• HS Code：8429209000
• Production Capacity：5000pieces,Year

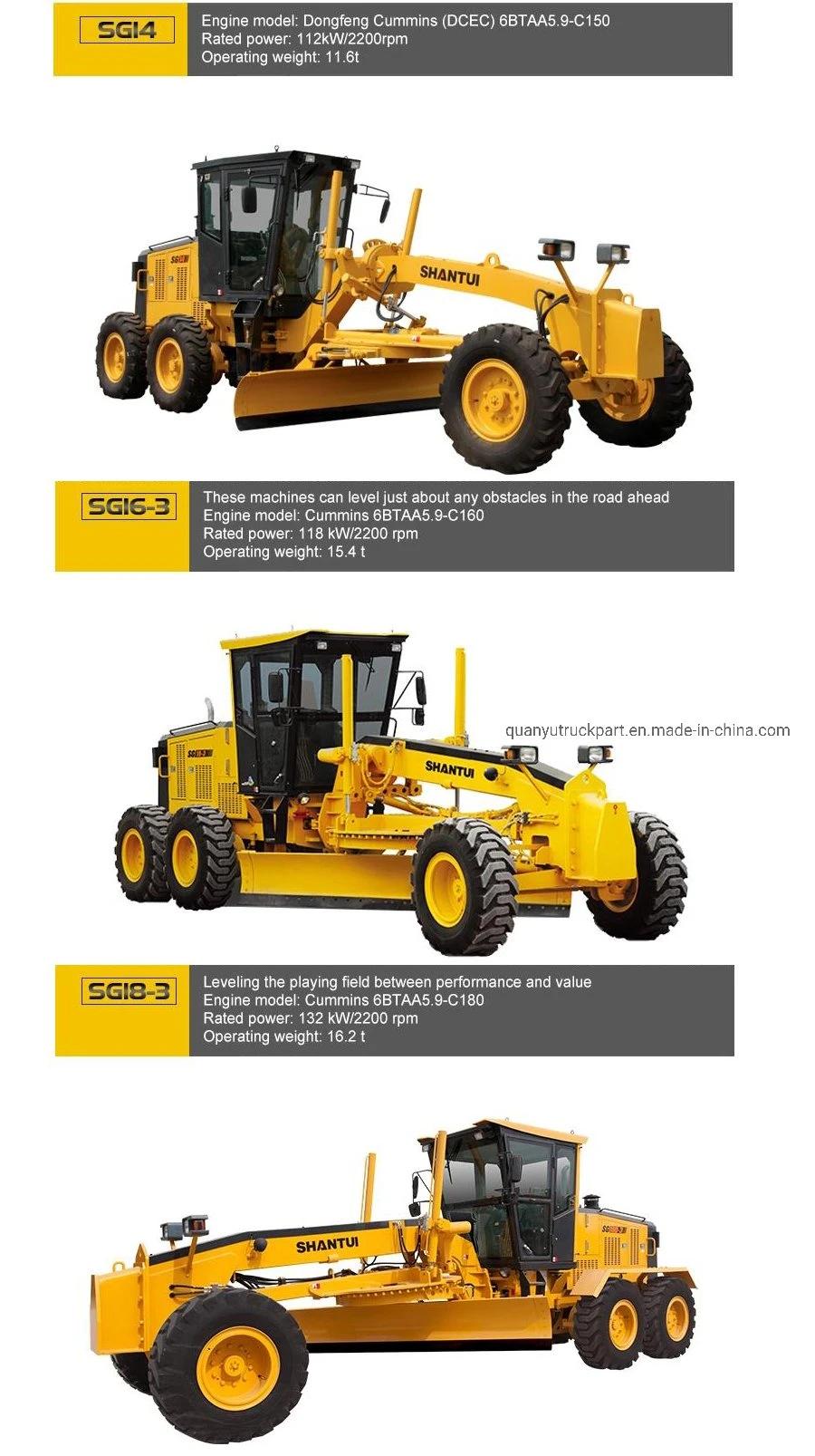

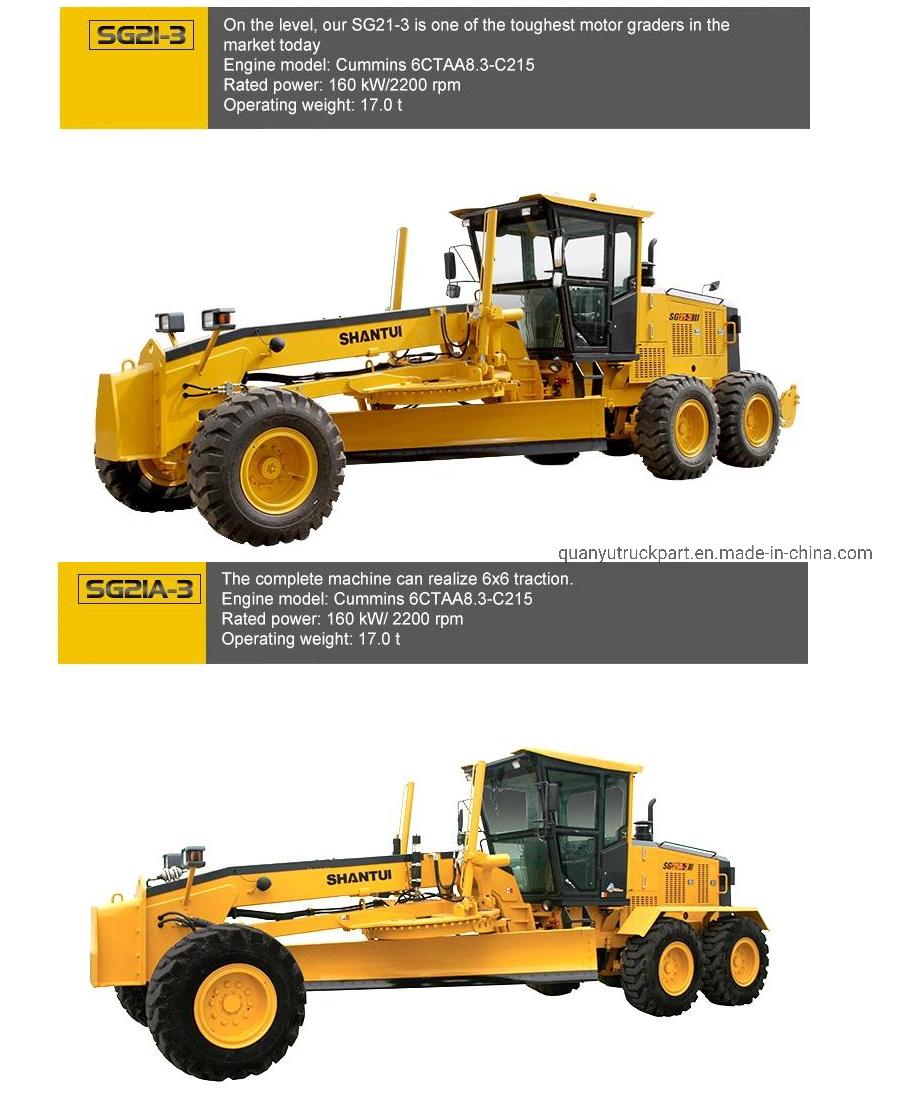

 ModelSG14SG16-3SG18-3SG21(A)-3Basic
parameterOperating Weight11600kg15400kg16200kg17000kgMax. traction65kN86kN91kN96/122kNMinimum ground clearance430mm430mm430mm430mmGradeability20°20°20°20°Min. Turning Radius6600mm7800mm7800mm8200mmFront wheel steering angle±45°±45°±45°±45°Chassis steering angle±25°±25°±25°±25°The front axle tilt angle±17°±17°±17°±17°The front axle swing angle±15°±15°±15°±15°Rear axle swing angle±15°±15°±15°±15°Brake pressure10MPa10MPa10MPa10MPaWorking pressure16MPa16MPa16MPa16MPaFront axle load3480kg4600kg4800kg5000kgRear axle load8120kg10800kg11400kg12000kgEngineEngine Model

Cummins

6BTAA5.9-C150

Cummins

6BTAA5.9-C160

Cummins

6BTAA5.9-C180/
Shangchai

SC8D190.1G2

Cummins

6CTAA8.3-C215

Type

Inline six cylinder, turbocharged,

air cooled diesel engine

Inline six cylinder, turbocharged,
air cooled diesel engine

Rated Power112kW/2200rpm118kW/2200rpm132kW/2200rpm //
 140kW/2300rpm160kW/2200rpmMaximum torque670N.m/1400rpm690N.m/1300rpm770N.m/1500rpm //
720N.m/1300rpm980N.m/1500rpmDisplacement5.9L5.9L5.9L/8.3L8.3L

Minimum fuel

consumption

202g/kW.h205g/kW.h

206g/kW.h //

200g/kW.h

202g/kW.hTravel speedFroward 1-6

0-5.4km/h 0-8.3km/h 0-13.2km/h

0-20.6km/h 0-29.6km/h 0-44km/h

0-5.4km/h  0-9.3km/h  0-12.2km/h

0-20.7km/h  0-25.6km/h 0-39.7km/h

Reverse 1-3

0-5.4km/h

0-13.2km/h

0-29.6km/h



0-5.4km/h

0-12.2km/h

0-25.6km/h

 BladeBlade width3660mm3660mm3660/3965mm

3660/3965/

4270mm

Blade height615mm635mm635mm635mmTurning angle360°360°360°360°Swing angle±90°±90°±90°±90°Blade cutting angle
sdjustment range30-68°44-91°44-91°44-91°

Maximum cutting depth

500mm500mm500mm500mmMaximum lifting height460mm440mm440mm440mmUnit cutting force17.76kN/m23.5kN/m24.86/22.95kN/m

26.23/24.21/

22.48kN/m

Maximum lateral

distance

1700/2000mm1900/1950mm1900/1950mm1900/1950mm







Our company
Shantui Construction Machinery Co., Ltd., founded in 1980, was a national category I key enterprise integrating research & development, production and sales of main engine products and key components of earth moving machinery, pavement construction & compaction machinery, building machinery, hoisting machinery and other construction machinery series products.

Shantui owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 150 countries and territories. At present, there are 26 Shantui monopolized stores and 150 marketing points. The international strategy is implemented stably; now, Shantui has 71 overseas Agents, as well as 10 overseas Subsidiaries in the United Arab Emirates, South Africa, Russia and Brazil. In the aspect of marketing service mode, it abides by the principle of "value leading and win-win service", introduces advanced concepts such as leading the industrial service promise, quality tracking and user care, provides solutions of whole set equipment construction for customers in time; and the humanized and punctual top-quality service help Shantui win customers' praise, thus enhancing brand value of the enterprise.

Six Free Services

Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)

If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Certificates

Packing and shipping

Our Customers

Which countries do you export to?

Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.

What is the proportion of your products exported?

75% of our products are exported to all over the world.

What is the payment term?

Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?

A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.

B. Term: FOB,CIF, DAP, to door service, etc.
