• Model NO.：40X-5RZ
• Productivity：120m²,h
• Feeding Height：1400mm
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Customized
• Minimum Unfolding Height：8m
• Conc. Cylinders：230*1650mm
• Maximum Pressure on Concrete：61,103 Bar
• Section Number：5
• End Hose Length：3m
• Concrete Hopper Capacity：550L
• Max. Horizontal Conveying Distance：32.8m
• Max. Vertical Conveying Distance：37.1m
• Machine Model：38X-5rz,160
• Weight：24150
• Rotating Angle：270
• Power Type：Diesel
• Core Components：Motor, Gear, Pump, Gearbox, Engine
• Application：Construction Engineering
• Transport Package：Nude Package, Suitable for Shipment
• Specification：9800*7741*3905mm
• Trademark：Acntruck
• Origin：China
• Production Capacity：300,Month

ModelUnit38X-5RZ/160Pump UnitMaximum theorical output                  m³/h  100/60     Maximum pressure on concrete   bar61/103Conc. cylinders (diam. x stroke)                    mm230x1650Concrete hopper capacity                            L550Hydraulic circuit                                 OpenBoom SectionMaximum vertical reach                          mm37.1Maximum horizontal distance                   m32.8Minimum unfolding height                      m8Section numbers m5Rotating angle ±270°End hose lenght                 m3

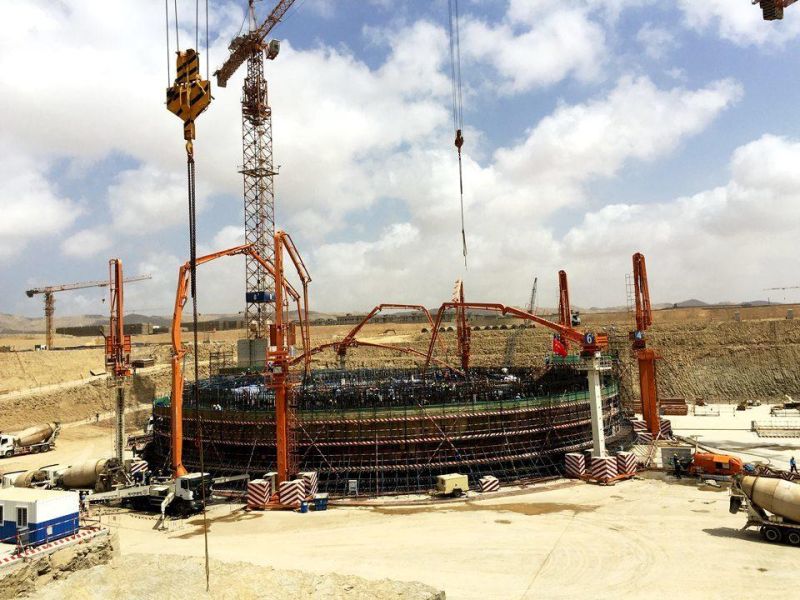

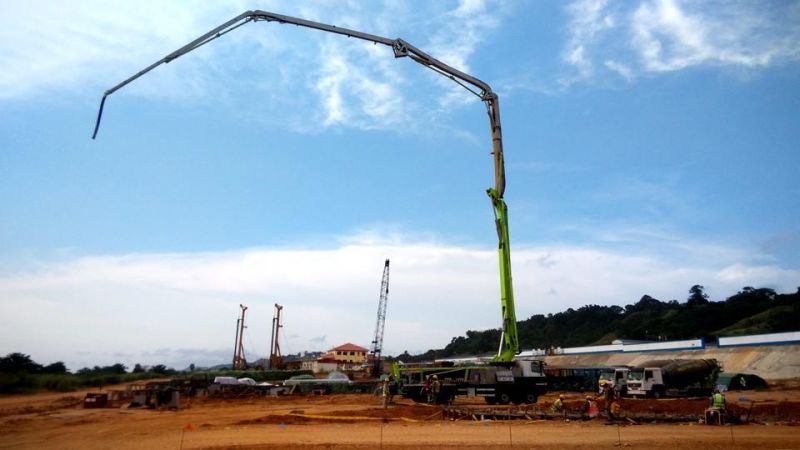

Products Pictures:
