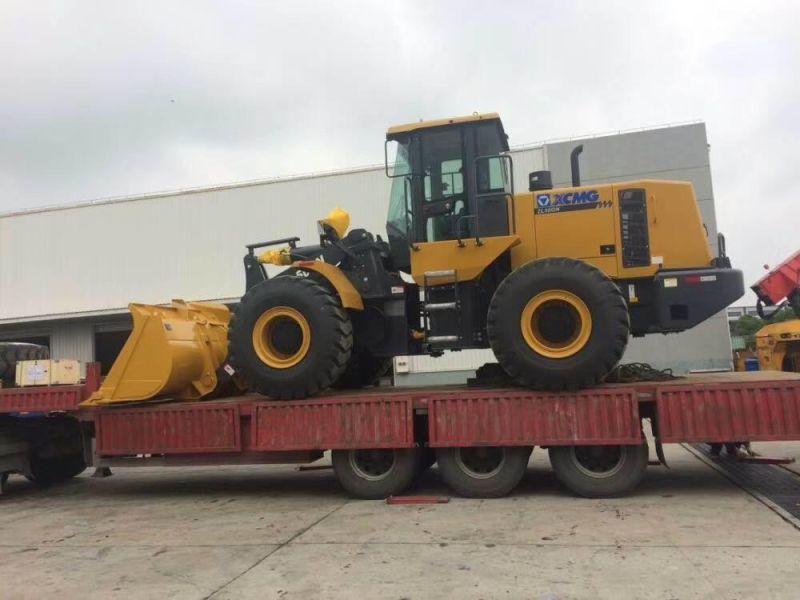

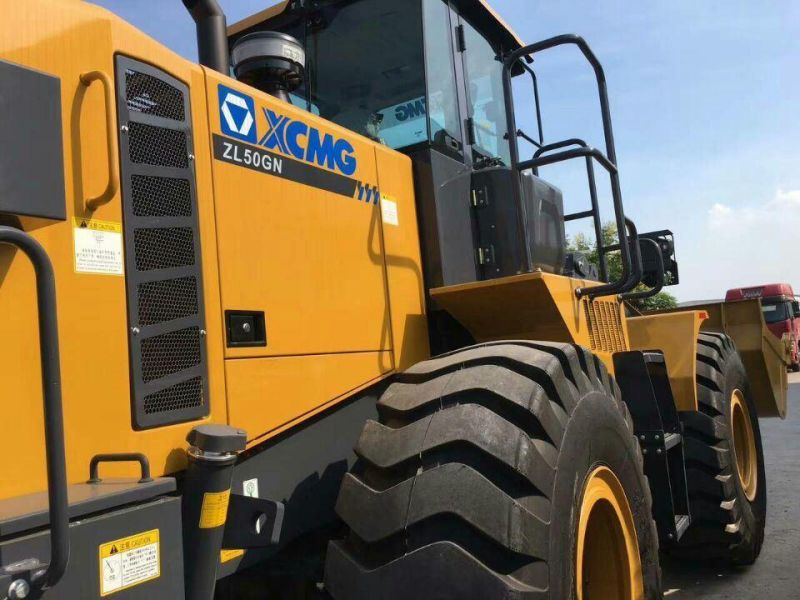

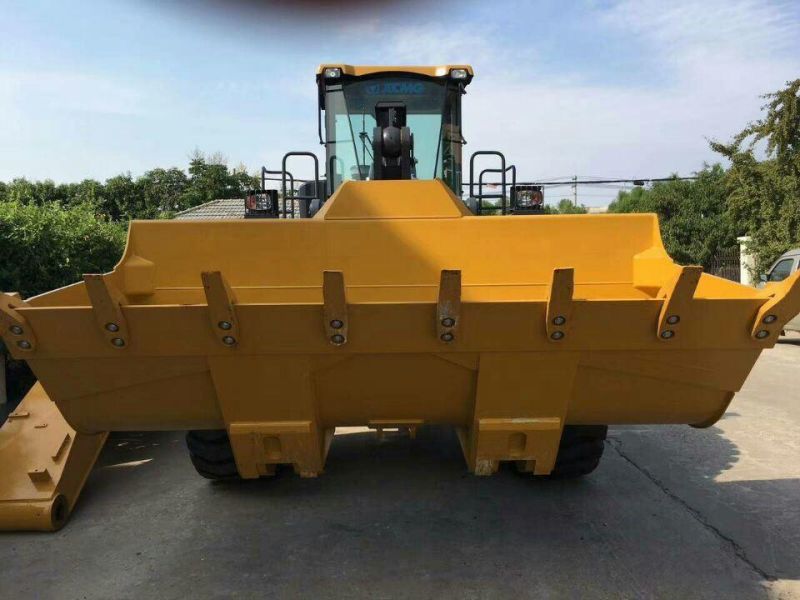

Construction Machinery Shovel Wheel Loader 5 Ton Zl50gn
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE, ISO9001: 2000
- Condition：New
- Rated Load：5000kg
- Transmission：Hydraulic - Mechanical Transmission
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：Zl50GN
- Type：Medium-sized Loader
- Transport Package：in Nude
- Specification：ISO; CE
- Trademark：oriemac
- Origin：Jiangsu, China
- HS Code：8401200000
- Production Capacity：3000
Description
Item
Parameter
Unit
Rated load
5000
kg
Tipping load
123
kN
Bucket capacity
3
m
Dumping height
3090
mm
Dumping distance
1130
mm
Lifting height
5370
mm
Width of bucket
3016
mm
Max. breakout force
170
kN
Max. tractive force
165±5
kN
Articulation angle
±35
°
Overall dimensions of machine: LxWx H
8165×3016×3485
mm
Total weight
17.5
t
Lifting time of swing arm
6
s
Total cycling time
11
s
Wheelbase
3300
mm
Tread
2250
mm
Minimum turning radius (tire center)
6400
mm
Minimum circle radius (outside of bucket)
7300
mm
Rated power / rotate speed
162/2000
kW/r/min
Engine model
WD10G220E23
Gradeability
30
°
Speed
Gear I (F/R)
11.5/16.5
km/h
Gear II (F)
37
km/h
Tire specification
23.5-25-16PR
