Liugong 142kw Motor Grader Clg4180d/4180d
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Video Support
- Warranty：One Year
- Certification：ISO
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Walking Mode：Wheeled
Base Info
- Model NO.：CLG4180D
- Type：Medium-sized Grader
- Speeds：6f , 3r
- Emission Regulation：Tier 2 , Stage II
- Drawbar Pull：86kn
- Operating Weight：15500kg
- Turning Radius：7200mm
- Blade Width：3960mm
- Transport Package：Nude Packing
- Specification：9090x26020x3380mm
- Trademark：LIUGONG
- Origin：China
- Production Capacity：50units,Month
Description

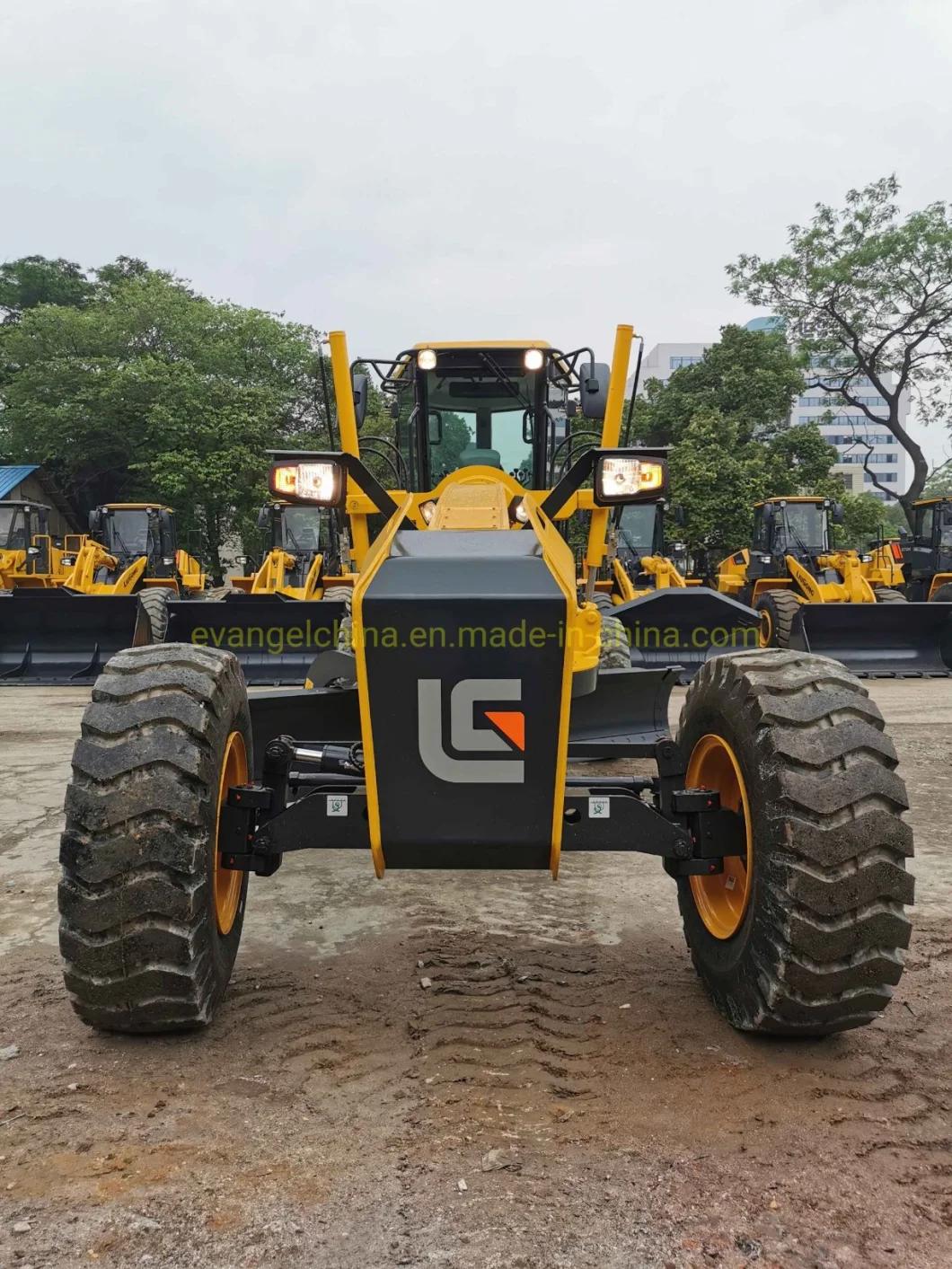

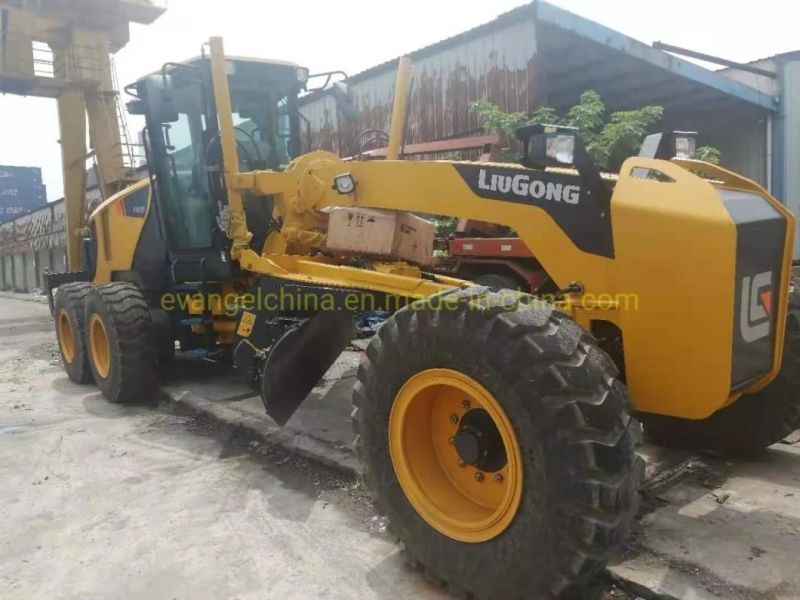

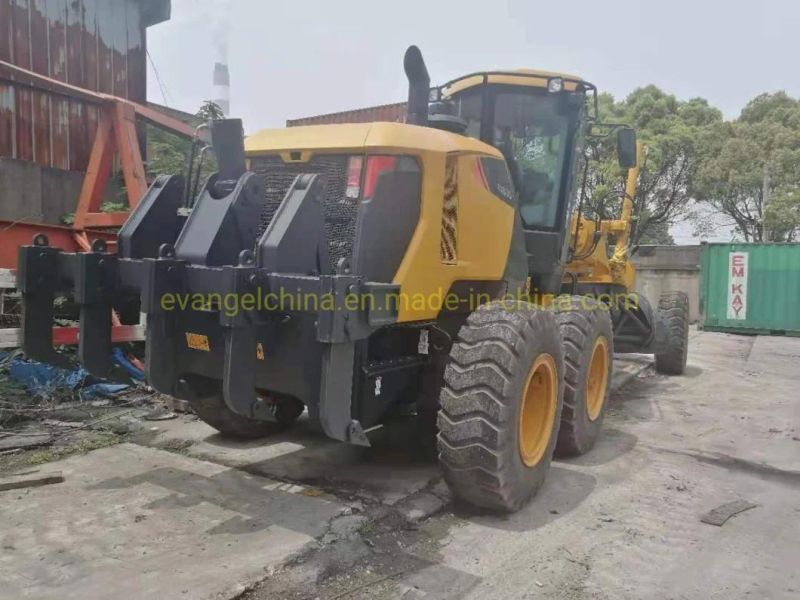

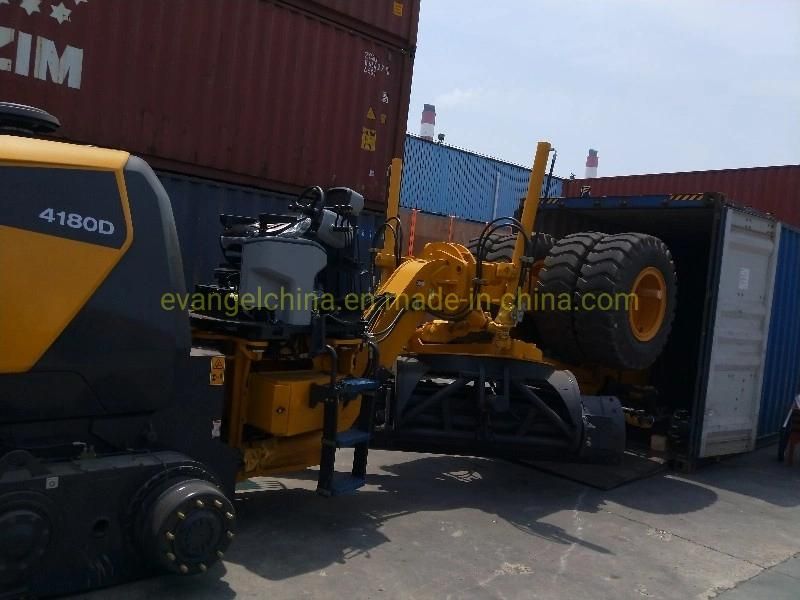

LIUGONG motor grader CLG4180D:
- Fuel Efficient Cu-m-mins Engine.
- Innovative five-column , Low Vibration, Noise, Dust +UV Resistant cab.
- Meri-tor wet axle with "no-spin" differential lock as standard.
- Innovative traction frame swing adjustment mechanism.
Operating weight 15500 kg
Weight on front wheels 4650 kg
Weight on rear tandem 10850 kg
Drawbar pull 86 kN
Model Cu-mmins 6BTAA5.9-C190
Emission regulation Tier 2 / Stage II
Rated power 142 kW (190 hp) @ 2200 rpm
Net power 115 kW (172 hp) @ 2200 rpm
Type Power shift
Speeds 6f / 3r
Maximum travel speed, forward 42 km/h
Maximum travel speed, reverse 26.2 km/h
Turning radius 7200 mm
Articulation angle ±27º
Maximum overall height 3380 mm
Width over tires 2600 mm
Blade width 3960 mm
Overall length 9090 mm
