• Model NO.：SY215C
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Engine：Mitsubishi
• Engine Displacement：5.86 L
• Hydraulic System：Positive Control System
• Number of Selectable Working Modes：4
• Operating Weight：21900 Kg
• Track Width：600 mm
• Number of Track Shoes：47
• Max. Travel Speed：5.4 Km,H
• Min. Travel Speed：3.3 Km,H
• Fuel Tank：340 L
• Bucket Digging Force：138 Kn
• Arm Digging Force：103 Kn
• Engine Power：114 Kw,2050 Rpm
• Length：9680 mm
• Width：2800 mm
• Transport Package：According to Shipping Requirement
• Specification：22 tons crawler excavator
• Trademark：SANY
• Origin：China
• Production Capacity：5000PCS Per Month

Basic Info.

Model NO. SY215C Size Medium-Sized Certification ISO9001: 2000 Condition New Engine Mitsubishi Engine Displacement 5.86 L Hydraulic System Positive Control System Number of Selectable Working Modes 4 Operating Weight 21900 Kg Track Width 600 mm Number of Track Shoes 47 Max. Travel Speed 5.4 Km/H Min. Travel Speed 3.3 Km/H Fuel Tank 340 L Bucket Digging Force 138 Kn Arm Digging Force 103 Kn Engine Power 114 Kw/2050 Rpm Length 9680 mm Width 2800 mm Transport Package According to Shipping Requirement Specification 22 tons crawler excavator Trademark SANY Origin China Production Capacity 5000PCS Per Month

Product Description

SY215C 21.9 ton excavator features customized engine, strengthened components, high operating efficiency, low fuel consumption, easy maintenance and comfort cabin.


High Efficiency & Low Consumption
1. Working Efficiency Up by 8%
2. Fuel Consumption Down by 10%
3. Digging Force Up by 9.5%

High Reliability
1. Powerful Customized Machine
The Mitsubishi engine with rate power of 128/2000 kW/rpm, 6-cylinder, 4-stroke direct-injection turbocharger, and 5.86L displacement is customized for SANY excavators, meeting your expectation on engine stability.
2. Strong Structural Components

Safety and Comfort
1. Falling Object Protection Structure
2. Large Rear View Mirror & Alternate Exit
3. Large Low Noise Cab

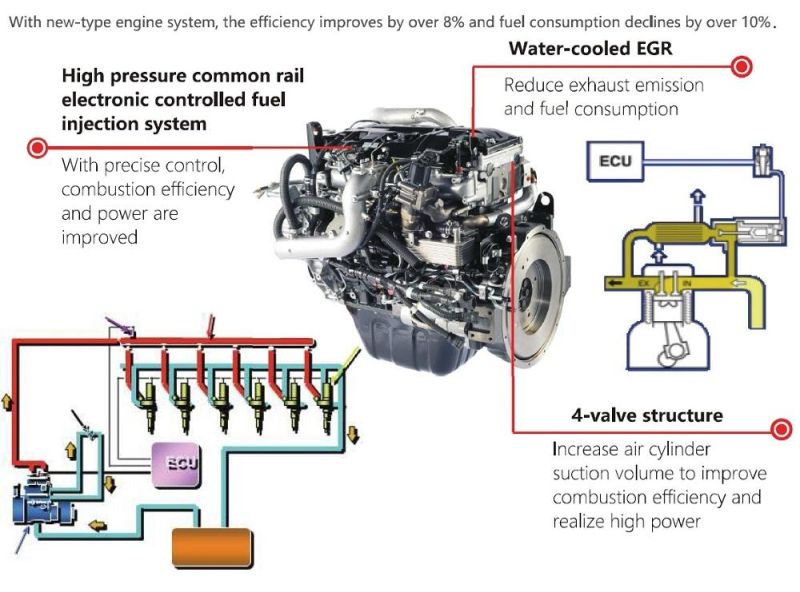

New-type engine system

Specifications		Main performance
Total weight	21900kg	Emission standard	Tier 3
Engine	Isuzu	Digging force of bucket	138kN/148kN
Type	4-cylinder	Digging force of arm	103kN/107kN
Rated power	128/2000 kW/rpm	Arm length	2.92m
Maximum torque	580N·m/1600rpm	Boom length	5.7m
Bucket capacity	0.9m³	Traveling speed(high/low)	5.4/3.3(km/h)
Displacement	4.9L	Ground pressure	47.4/45.9kPa
Capacity of oil and coolant		Traveling section
Fuel tank	340L	Number of track shoes	47
Hydraulic oil	239L	Carrier wheel on each side	2
Coolant	29L	Thrust wheel on each side	8
Final drive	2*5.0L	Standard track	600mm
Engine oil	22L

Develiery Site of SANY Machinery

Certification of SANY Equipment




SANY On Exhibition



FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 7-20 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
