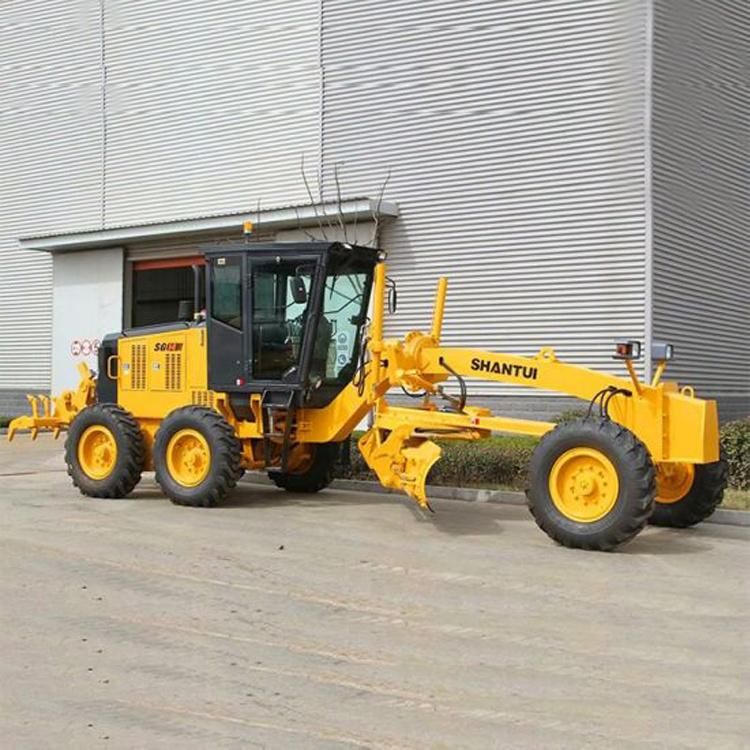

Shantui High Efficiency 210HP Motor Grader Sg21-3
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：SG21-3
- Walking Mode：Wheeled
- Type：Large Grader
- Transport Package：Nude Packing
- Specification：17t
- Trademark：Shantui
- Origin：China
- HS Code：8429209000
- Production Capacity：10000units,Month
Description
Basic Info.
Model NO. SG21-3 Walking Mode Wheeled Type Large Grader Transport Package Nude Packing Specification 17t Trademark Shantui Origin China HS Code 8429209000 Production Capacity 10000units/MonthProduct Description
china famous brand Shantui High efficiency 214hp motor grader SG21-3 Power SystemIt's powered by Dongfeng Cummins 6CTAA8.3-C215 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.
Driving/Riding Environment
The high-grade full-sealed luxury cab with full visual field and the high-efficiency shock-absorbing seat maximize the operating comfort.
The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
| Product name | SG21-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 16800 |
| Wheelbase (mm) | 6560 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 88.2(f=0.75) |
| Turning radius (mm) | 8200 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660/3965/4270 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 37-83 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 9315 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6CTAA8.3-C215 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 160kW/2200rpm |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 9.4 |
| Speed for forward gear III (km/h) | 12.2 |
| Speed for forward gear IV (km/h) | 20.5 |
| Speed for forward gear V (km/h) | 25.4 |
| Speed for forward gear VI (km/h) | 39.7 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 12.2 |
| Speed for reverse gear III (km/h) | 25.4 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 340 |
| Working hydraulic fuel tank (L) | 110 |
| Transmission (L) | 28 |
| Drive axle (L) | 25 |
| Balance box (L) | 2X23 |
