• Model NO.：PZ-3
• Voltage：220V, 380V, 400V, 440V, 50,60Hz
• Application：Concrete Shotcrete Spraying Machine
• Coating：Spraying Concrete
• Method Type：Automatic
• Transport Package：Wooden Case
• Specification：2255*1250*750
• Trademark：ETERNOO
• Origin：China
• HS Code：84743100
• Production Capacity：100 Sets,Week

Basic Info.

Model NO. PZ-3 Voltage 220V, 380V, 400V, 440V, 50/60Hz Application Concrete Shotcrete Spraying Machine Coating Spraying Concrete Method Type Automatic Transport Package Wooden Case Specification 2255*1250*750 Trademark ETERNOO Origin China HS Code 84743100 Production Capacity 100 Sets/Week

Product Description

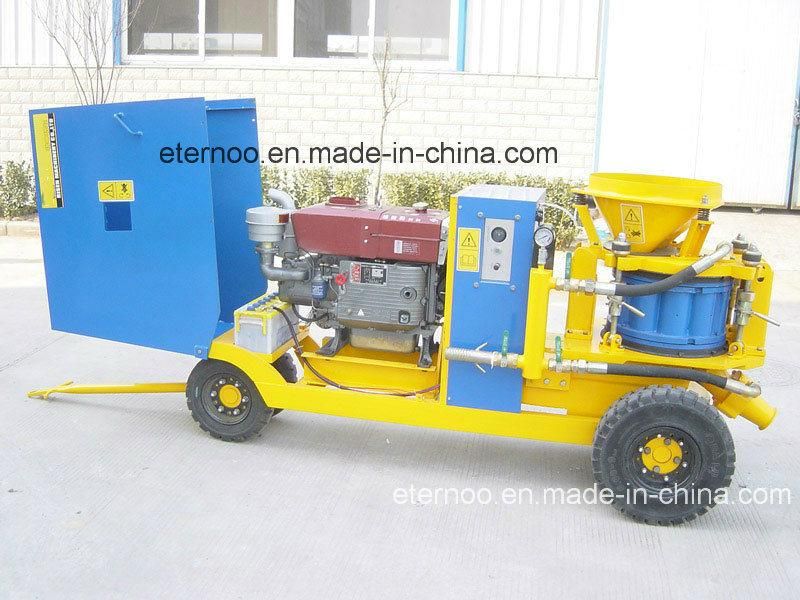

PZ-5 middle size shotcrete machine with diesel engine is used for dry mix and damp mix shotcreting in the places without electric power source. It is dependable, easy to maintain, robust, and is long lasting.


FEATURES:
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4. Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
5. Three drive models: By Electric motor, air motor or diesel engine.
6. CE safety standard.

TECHNICAL DATA TABLE:


Output Capacity	5 cubic meter/hour
Maximum Conveying Distance	horizontal,200 m (660 ft); vertical,70 meters
Desired Shotcrete Ingredient Ratio	Cement/sand and gravel < 0.4
Maximum Aggregate Size	15 mm
Inner Diameter of Conveying Hose	51 mm (2")
Working Compressed Air Pressure	0.2 ~ 0.6 MPa
Conveying Air Consumption	7 ~ 8 cubic meter / min)
Diesel Engine	7.7kW (10 HP)
Dimensions	2255 x 750 x 1250 mm
Net Weight	980 Kg

APPLICATION:

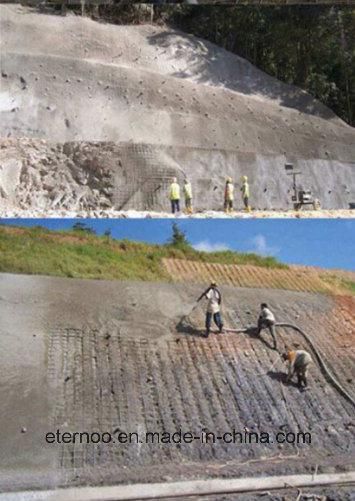

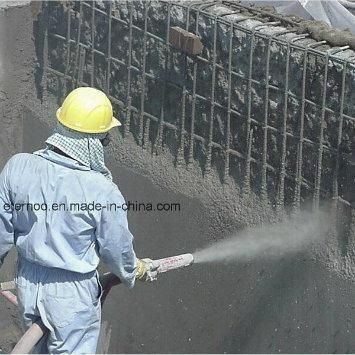

Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns' inner liner.


1. Q: Which model should we choose?
A: We have many models for your choice. Before suitable model is recommended, please tell us the application, materials, output and pressure you want.

2. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your actual requirements.

3. Q: Do I need to know technical skills to operate this machine?
A: No. This machine has no professional requirements for the operator. However, we provide technical instruction for your backup.

4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for online instruction. Also, our engineers are available to service overseas.

5.Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.

6.Q: How about the package?
A: We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.

7.Q :How should I pay for you if I place this order?
A: Generally, TT, 30% deposit 70% before shipment.
