• Model NO.：UTHPC10
• Weight：300-950 Kgs
• Power of Impulse：4-15 Tons
• Pressure：100-200
• Transport Package：Pallet
• Specification：International Standard
• Trademark：UT
• Origin：Shandong Province, China
• Production Capacity：1000sets,Month

Basic Info.

Model NO. UTHPC10 Weight 300-950 Kgs Power of Impulse 4-15 Tons Pressure 100-200 Transport Package Pallet Specification International Standard Trademark UT Origin Shandong Province, China Production Capacity 1000sets/Month

Product Description

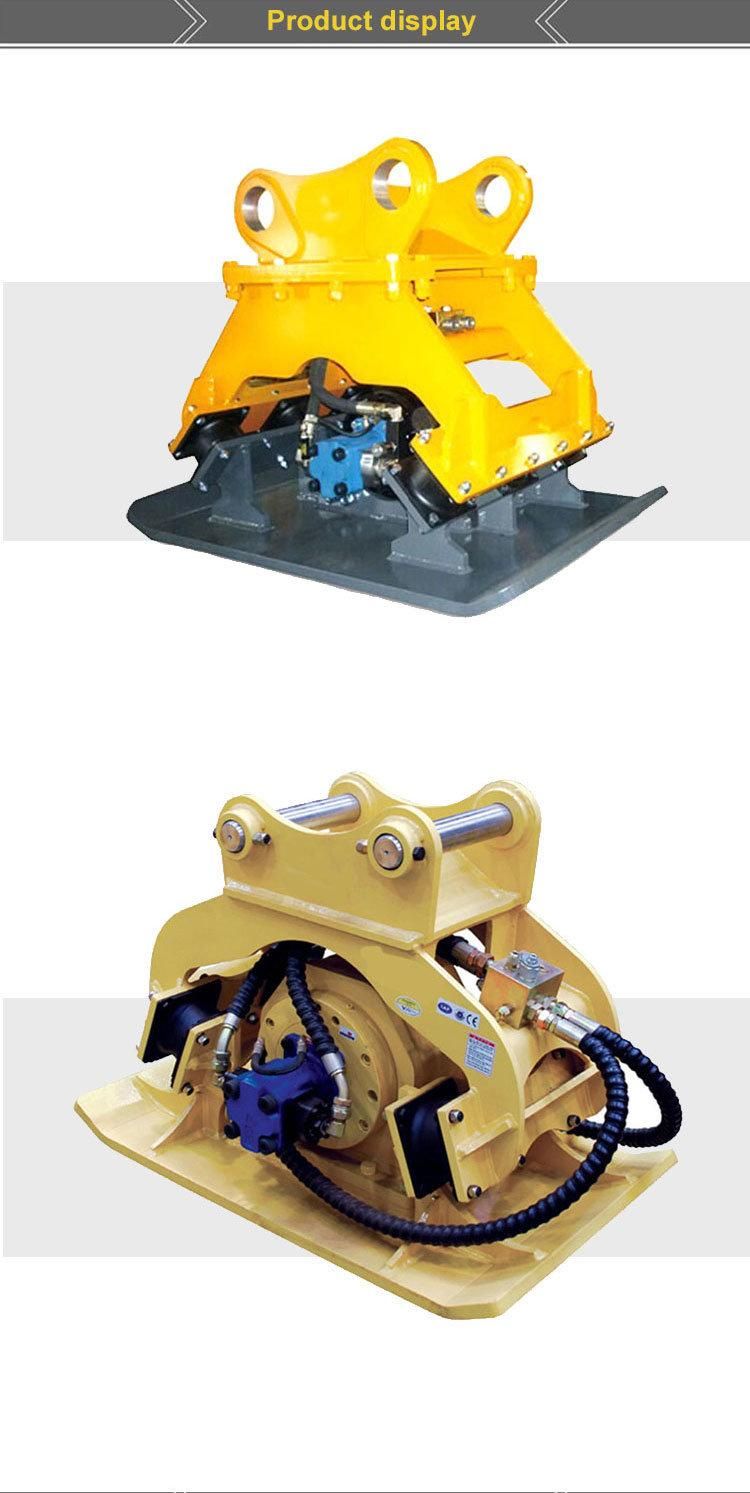

Hydraulic Plate Compactor

Features :
1.Special steel material with high ductility and high wear resistance
2.It can be installed on the hydraulic excavator. The power is provided by the hydraulic system on the excavator. The installment is easy with convenient and flexible operation
3.Strong and durable with reasonable mechanical structure and shape.
4.Strong resistant ability and cracking power.
5.Imported cylindrical roller bearing with low noise, high speed and reliable.
6Effectively avoid hydraulic oil pollution and metal residue from damaging the excavator's hydraulic system
7.The product can be made as rotating type, split type in accordance with customers' multiple requirements.

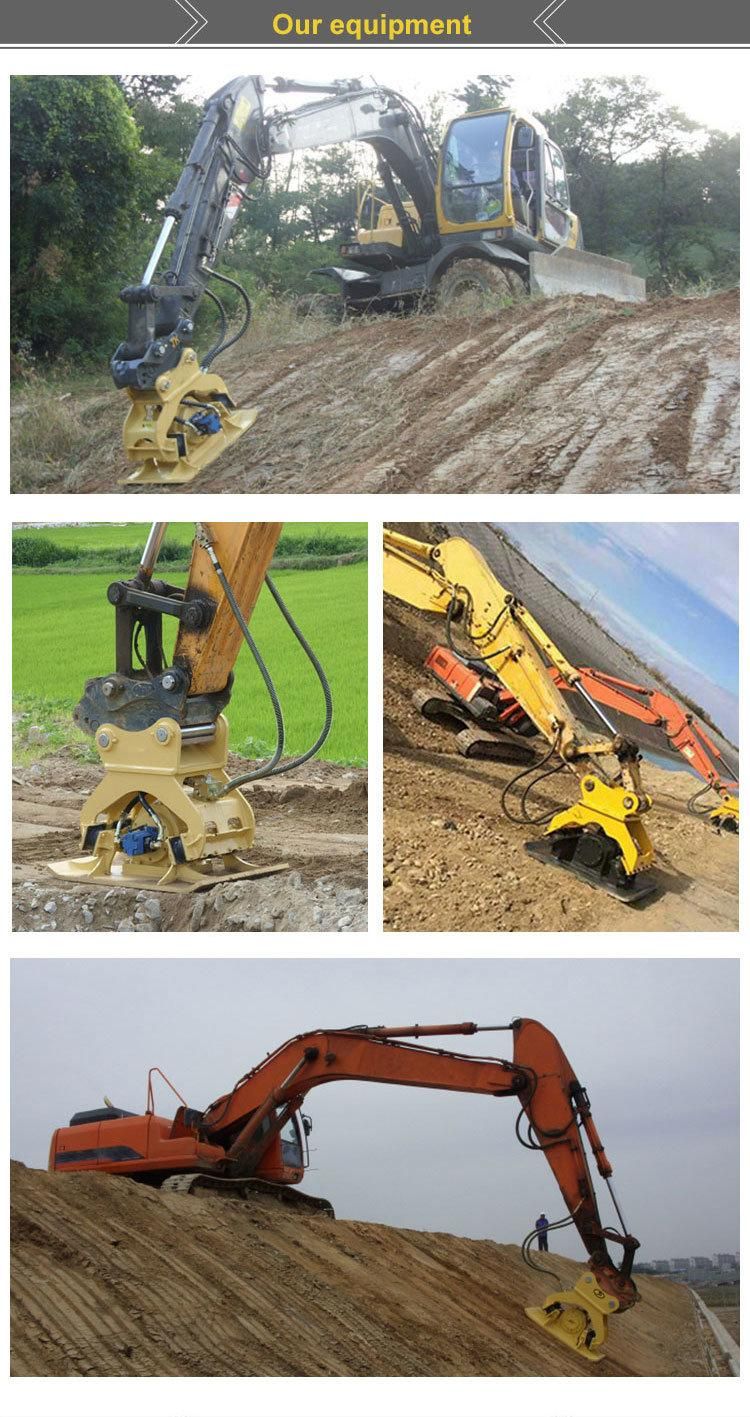

8.It is mainly used for ramming the abutment, culvert side, corner turning point, road shoulder, road side, roadbed and railroad bed, architect gutter and its backfill. It can also be used for concrete road repairing, the tamping of the municipal side ditch, tube side and pile driving and extracting even crashing if necessary.  It is used by fundamental construction and maintenance such as road construction, railway construction, dock construction, architecture, water projects and municipal engineering. For the municipal construction, it is mainly applied for tramping the auxiliary facilities such as, building groove and low level pipeline.



Item/Model /	Unit	UT-HFC04	UT-HFC06	UT-HFC08	UT-HFC10
Weight	Kg	300	500	900	950
Power of impulse	Ton	4	6.5	15	15
Maximum vibration frequency	Rpm	2000	2000	2000	2000
Oil flow	L/min	45-75	85-105	120-170	120-170
Pressure	Kg/cm2	100-130	100-130	150-200	150-200
Bottom measurement L*W*T	mm	900*550*25	1160*700*28	1350*900*30	1350*900*30
Height	Mm	760	920	1060	1100
Width	Mm	550	700	900	900
Suitable Excavator	Ton	4-9	11-16	17-23	24-30

The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
