• Model NO.：DGL5163TYH-054
• Model：Dgl5163tyh-054
• Truck Chassis：Dflb1160bx4
• Mixing Tank Capacity：5 M3
• Hma Heating Temperature：140-160 Degree
• Asphalt Tank Capacity：220L
• Mixture Heating Time：4-6h
• Hma Discharging Speed：80L,Min
• Power of Engine：155kw
• Diesel Generating Set Power：5.5kw
• Transport Package：Nude Package
• Specification：7610x2480x3200mm
• Trademark：Dagang
• Origin：China
• Production Capacity：10000

Basic Info.

Model NO. DGL5163TYH-054 Model Dgl5163tyh-054 Truck Chassis Dflb1160bx4 Mixing Tank Capacity 5 M3 Hma Heating Temperature 140-160 Degree Asphalt Tank Capacity 220L Mixture Heating Time 4-6h Hma Discharging Speed 80L/Min Power of Engine 155kw Diesel Generating Set Power 5.5kw Transport Package Nude Package Specification 7610x2480x3200mm Trademark Dagang Origin China Production Capacity 10000

Product Description

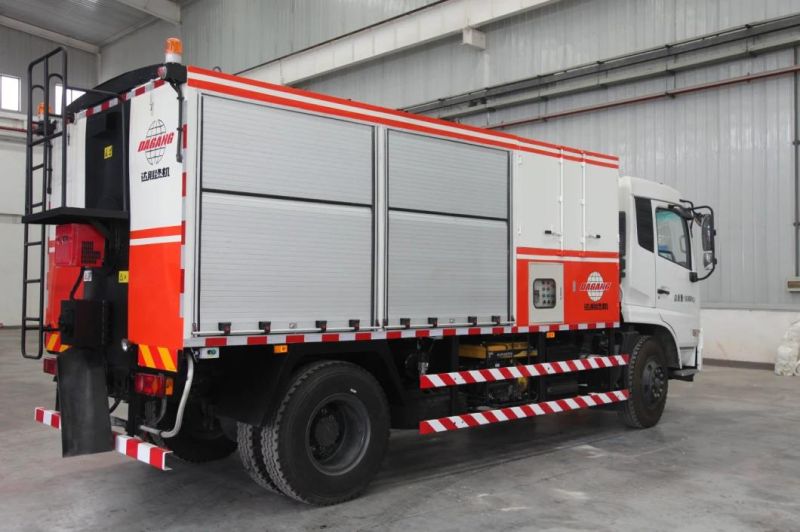

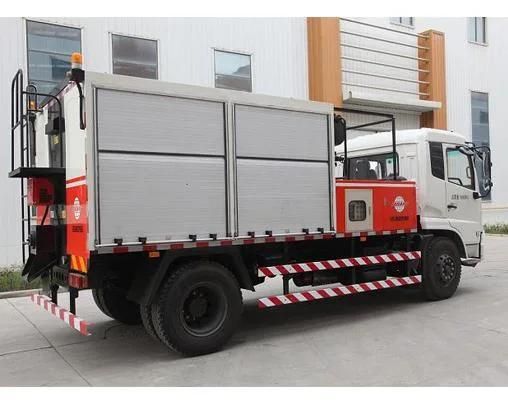

China No.1 Brand DGL5163TYH-054 5m3 Asphalt Pavement Maintenance Truck
DGL5163TYH-054 Asphalt pavement maintenance machine is researched and developed for satisfy the road maintenance requirement.

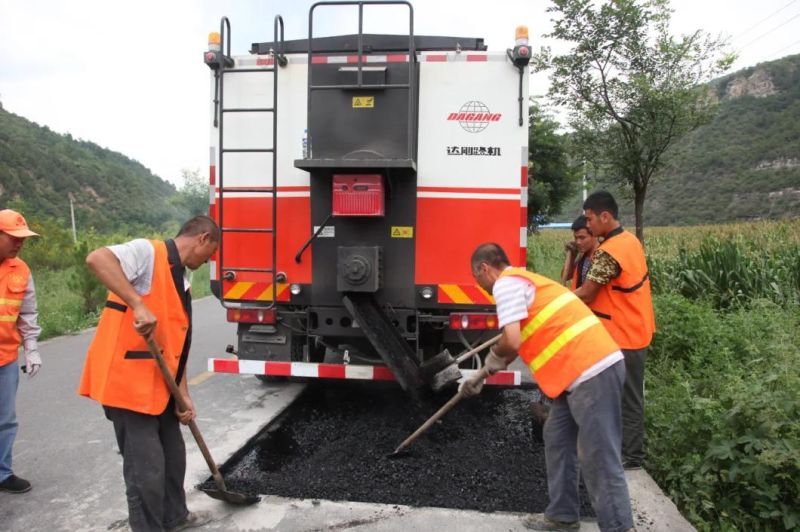

It is mainly applied to accomplish the pavement pothole repairing work on highway.
It is composed of truck chassis, hydraulic system, HMA bin, burning system, asphalt spraying system, control system and vibratory roller etc.
The machine can realize the heat preservation for HMA during transportation, furthermore, can heat up the cold HMA material to temperature 140~160 ºC and meantime keep heat preservation, which meet the technical request for HMA under various long distance construction,
The machine is equipped with asphalt heating and spraying device, heating device is independently controlled, which can be separately heated anytime according to construction requirement.
HMA bin introduced the mixing and heating method, which can heat uniformly and completely.

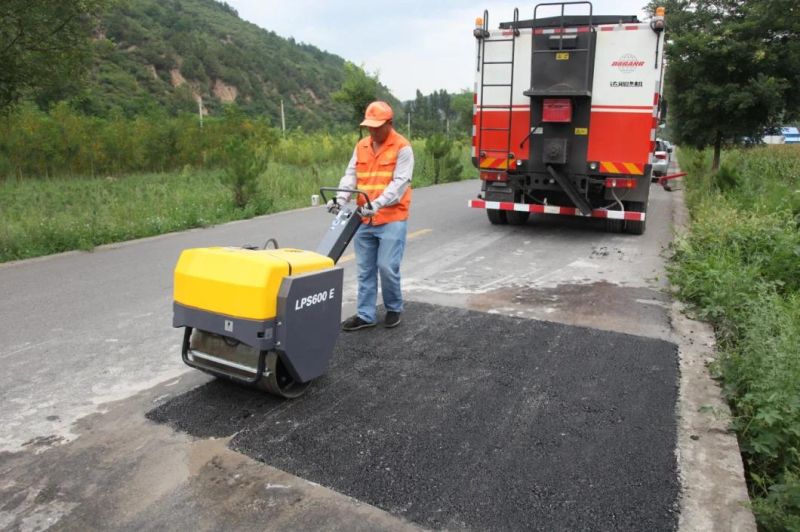

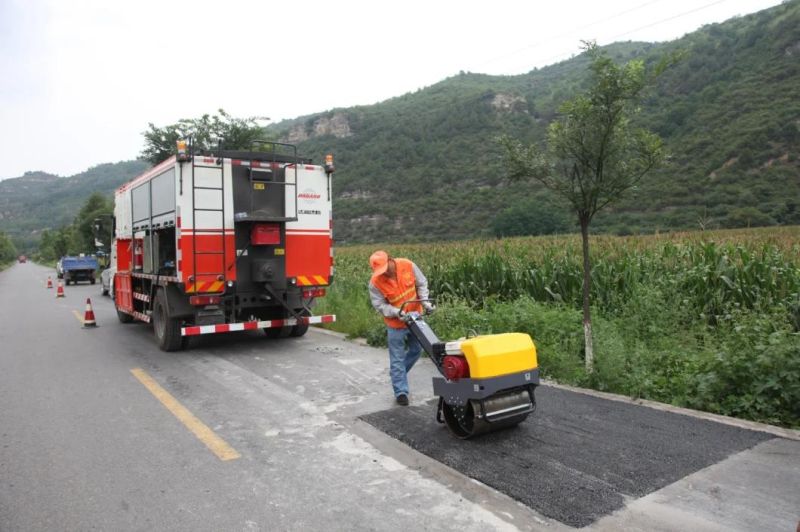

The machine can also be used to spray either the asphalt emulsion or hot asphalt on the bottom of the pothole to improve the bonding strength, vibratory roller for further sufficient compaction on patched pavement.


Performance Introduction

1,High heating efficiency, energy saving and environment protection
2,HMA material heating up during truck traveling to improve the work efficiency
3,HMA heating and insulation structure which can realize completely uniformity heating.
4,Can accomplish the whole working procedure on pavement pothole repairing
5,Equipped with asphalt heating and spraying system Parameter:

No.	Parameter	Unit	Standard Value
1	Model		DGL5163TYH-054
2	Truck chassis		DFLB1160BX4
3	Mixing tank capacity	m3	5
4	HMA heating  temperature	ºC	140~160
5	Asphalt tank  capacity	L	220
6	Asphalt  heating temperature	ºC	145~160
7	Mixture  heating time	h	4~6
8	HMA thermal  insulation performance (temperature drop each hour)	ºC/ h	≤4
9	HMA  discharging speed	L/min	80
10	Power of engine	kW	155
11	Overall dimension	mm	7610×2480×3200
12	Diesel generating set power	kW	5.5
