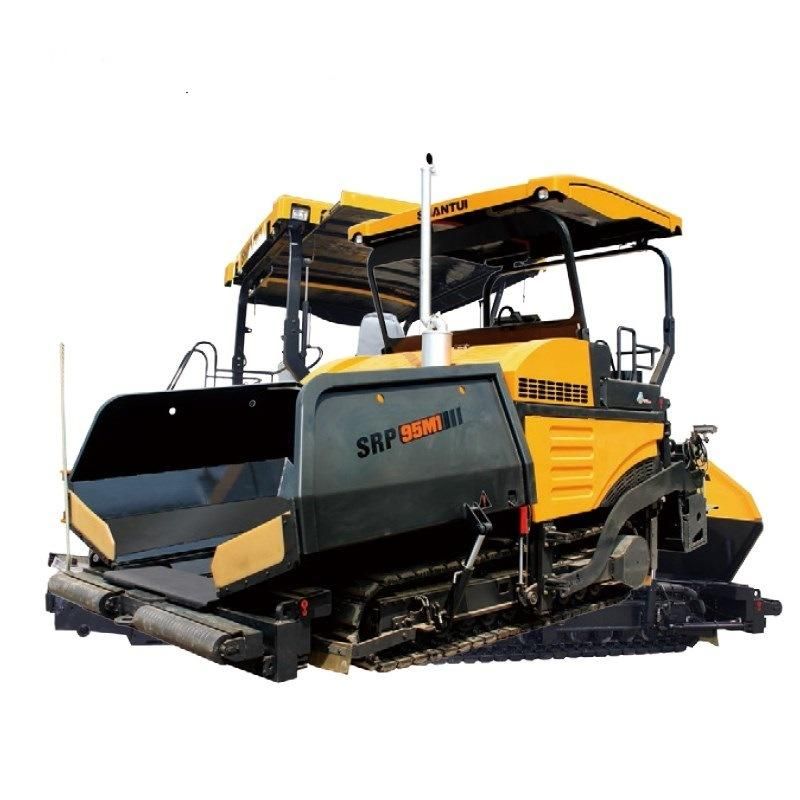

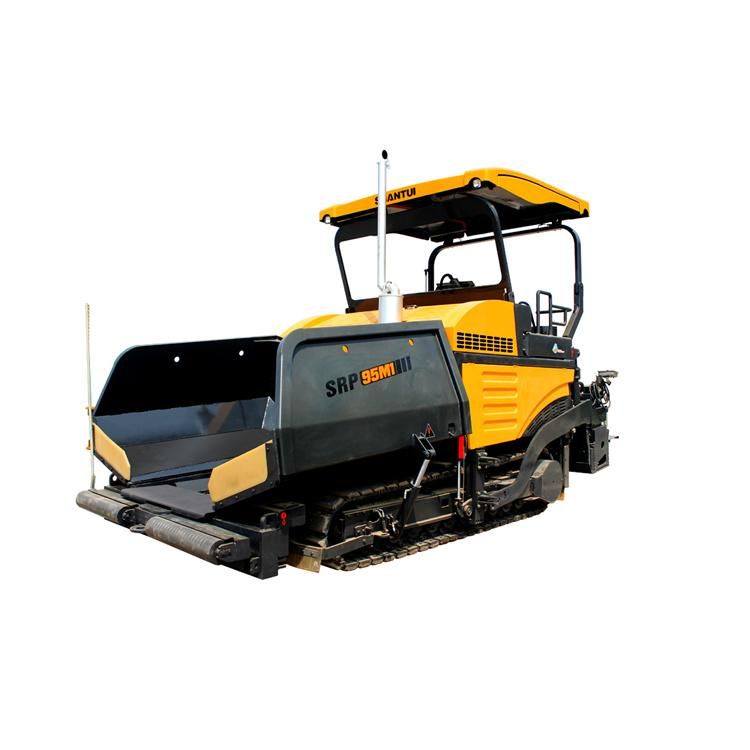

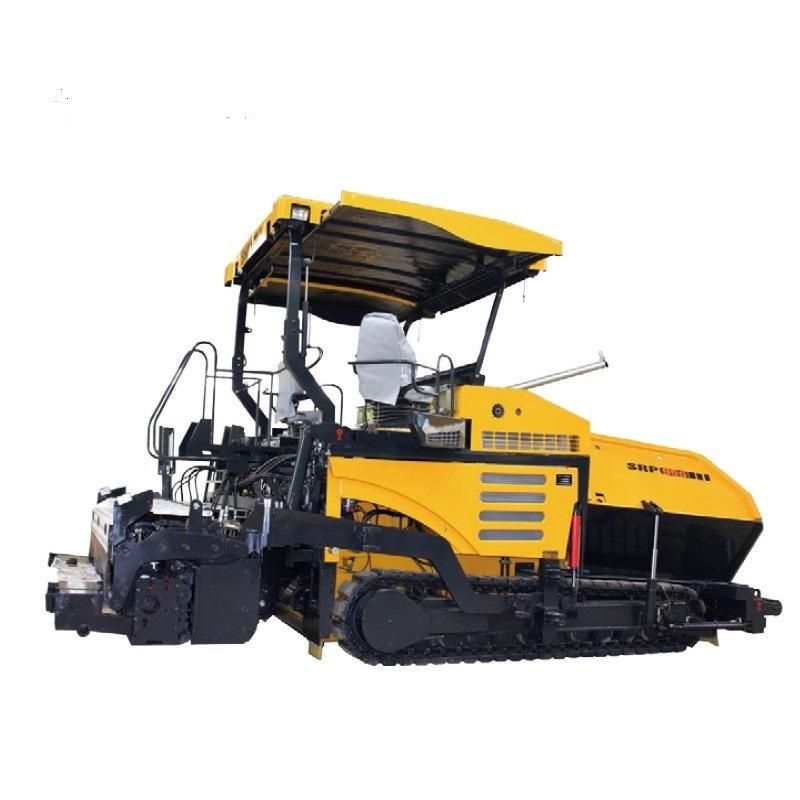

Shantui Asphalt Concrete Paver Srp90
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service:One Year
- Warranty:One Year
- Type:Asphalt Distributor
- Object:Asphalt Concrete Pavement
- Moving Type:Fixed
- Mixing Method:Intermittent Compulsory
Base Info
- Model NO.:SRP90
- Automatic Grade:Automatic
- Product Capacity:40~400t,h
- Certification:ISO9001: 2000
- Condition:New
- Transport Package:Nude Package
- Trademark:shantui
- Production Capacity:1000pieces,Year
Description
Overall dimensions(L×B×H):7800×9000×3360mm
Basic spreading width:3-5.7m
Maximum spreading width: 9 m
Hopper capacity: 15
Engine: BF6M1013-22T3R
Heating method: electrical heating type
Detail specifications
Parameter name | SRP90S PLUS (Standard version) |
Performance parameters | |
Operating weight (Kg) | 29000 |
Basic paving width (m) | 3-5.7 |
Maximum paving width (m) | 9 |
Maximum paving thickness (mm) | 350 |
Maximum productivity (t/h) | 850 |
Engine | |
Engine model | SC9D/BF6M |
Rated power/rated speed (kW/rpm) | 162/2000;159/2000 |
Overall dimensions | |
Overall dimensions of machine (mm) | 7800*9000*3800 |
Driving performance | |
Traveling speed (km/h) | 0~2.4 |
Paving speed (m/min) | 0~18 |
Chassis System | |
Hopper | |
Hopper capacity (t) | 15 |
Working device | |
Screed | AVS9030D |
