• Color：Blue
• Trademark：BHS
• Origin：China
• HS Code：8474310000

Basic Info.

Color Blue Trademark BHS Origin China HS Code 8474310000

Product Description

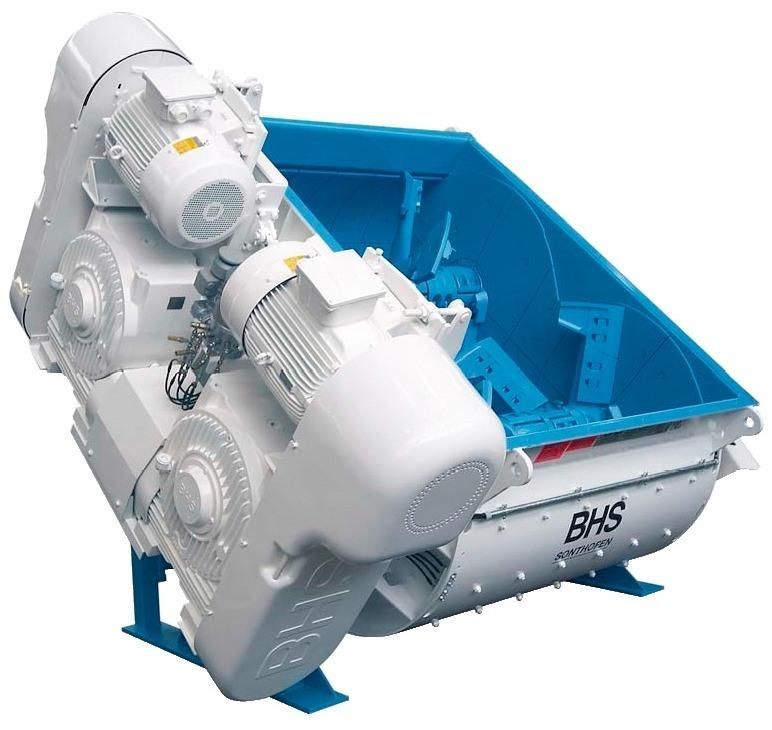

PROVEN DRIVE TECHNOLOGY
High operational reliability, energy efficiency and  durability    Gearbox
1
The BHS worm gearing offers maximum operational reliability and a long service life - even when exposed to extreme loads. The gearboxes are directly mounted on the mixing shafts without a rigid connection to the mixing trough. With the selected materials pairing, the BHS worm gearing compensates the load changes that occur every time the mixer is charged. Electric motor
2
We use only high-quality motors for our twin-shaft batch mixers. They are specially designed to withstand the load cycles encountered in mixing applications. V-belt drive unit
3
The drive power is transmitted by V-belt drives. They are located on the outer side of the drive units to ensure ready access for maintenance work.
Torque support
4
The adjustable torque support is used for alignment of the gearboxes. It allows the gearboxes to be free from the mixing trough in order to avoid unnecessary loads on the gearing. This special feature is extremely important for achieving a long gearbox life. Synchronous coupling
5
A low-maintenance elastic coupling is installed between the gearboxes to synchronize the two mixing shafts. Turbo coupling (optional)
6
The hydrodynamic turbo coupling prevents both mechanical and electrical load peaks. It is recommended particularly in the case of unstable electricity supply conditions. Shaft seals
