• Model NO.：TR-MCP180
• Automatic Grade：Semi-Automatic
• Product Capacity：1000 Square Meter,Day
• Certification：ISO9001: 2000
• Condition：New
• Engine：20HP Gasoline Engine
• Paint Pump：Double Piston Pump
• Paint Tank：180L
• Applicable Paint：Two-Commponent or Other Single Component Paint
• Spraying Marking Width：50-500mm
• Recommended Width：150-250mm
• Screed Application Width：100,200,250,300,400mm
• Moving Method：Self-Propelled
• Spray Gun：Double Pneumatic
• Glass Beads Gun：Single Pneumatic
• Transport Package：Plywood Case
• Specification：2150*1450*1450mm
• Trademark：Touran Traffic
• Origin：China
• HS Code：8479109000
• Production Capacity：15,Month

Product NameSelf-propelled Multi-function Cold Paint
Road Marking MachineModel NumberTR-MCP180 typeMoving MethodSelf-propelled typeControl MethodAutomatic control through pannelBrief introductionIt is high efficiency multi-function cold paint road marking machine, not only used for spraying two-comoponent paint or other single component paint, but also used for applying two-component screeding flat line or convex line, also can be applicable to double-line with two colors at the same time, various construction environments as well. It has the characteristics of stable performance, flexible operation and convenient construction and so on.
Engine20HP Gasoline engineApplicable paintTwo-component paint, Cold-paint, Water-based paint.Paint pumpDouble Super-alloy piston pumpsMarking width100-250mm(for 1:1 two-component paint),
50-500mm(for single component paint)Pump flow2x9 L/minSpray gun configurationTwo pneumatic spraying guns as standard Air compressor output0.16(m³/min)(spraying type)Glass beads tank capacity30L pressurized tankDimension2100×1400×1350 mmWeight350Kg

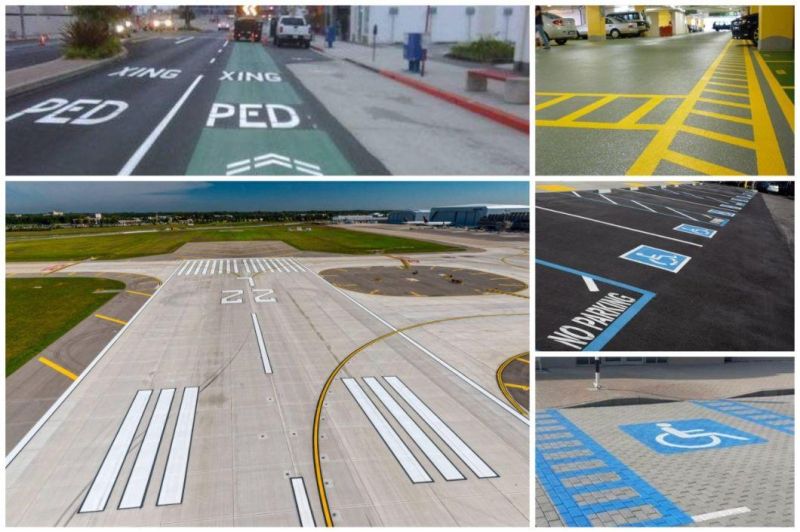

Application scenes
This machine is widely used in airport, urban roads, parking lots, and other areas marking construction.


Company file

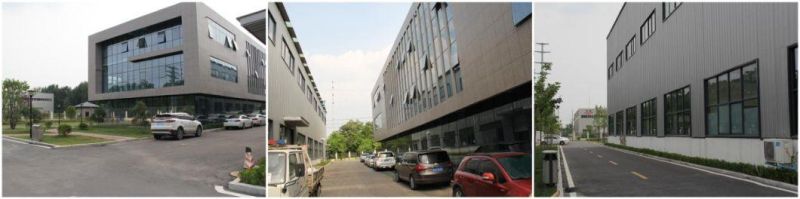

1. Enterpise Scale


Up to now, the company has established three machinery factories respectively in Zhengzhou, Nantong and Jining. The total construction area reach 100,000 square meters, mainly engaged in the R&D and production of road marking machine, road clearing machine, road crack sealing machine, small roller, sweeper, industrial lighting vehicles and other small pavement machine.

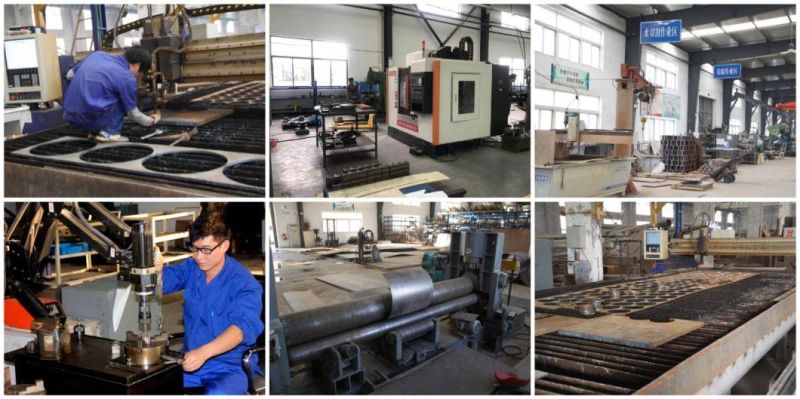

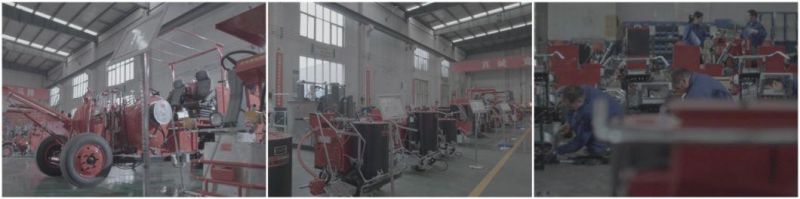

2. Production, R&D Strength

Total supporting more than 30 sets of professional mechanical processing equipment, nearly 100 professional and technical workers team.

3. Excellent Talent Team

TOURANTRAFFIC has an enterprise management team with rich industry experience and innovative spirit. It has accumulated and attracted nearly 100 professional engineering machinery design and manufacturing talents and gathered a large number of professional industrial workers to fully support the continuous investment and technology accumulation of TOURANTRAFFIC in the industry.

4. Exported to over 35 countries

Recently, our products are exported to over 35 countries in Southeast Asia, South America, The Middle East, North Africa and Europe. To be the " Reliable Partner " of clients with our quality products, customer satisfaction and solution service is our consistent service concept. TOURANTRAFFIC is getting stronger every day in this field in above countries and regions.

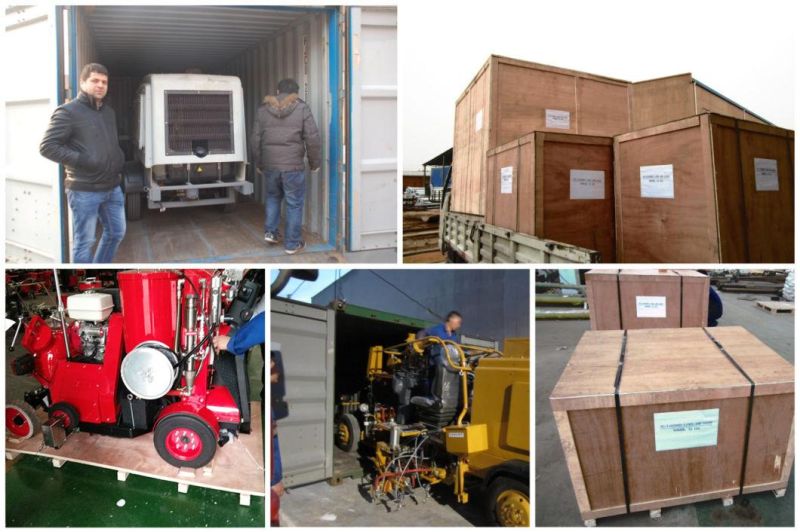

Packing & Delivery
All standardized packaging, suitable for long distance transportation by Land or Ocean. Professional logistics operation team, convenient and fast delivery to all over the world.

FAQ

1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.

2.About Sample:
Samples of traffic safety products are provided and is Free, but the air freight is collect or you pay us the cost in advance.

3.About MOQ:
The MOQ for small size machines is more than 2 sets; for Big size is 1 set. The MOQ for other products, We require a total value of over $5,000.

4.About OEM:
Welcome, you can send your own design and LOGO, we can use your Trademark or Brand instead of the original one.

5.About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But due to long time shipment there may be some damage to the appearance. But not enough to affect the performance of machine. Any quality issue, we will deal with it immediately.

6.About Payment or other question:
Pls email us or chat with us online directly.
