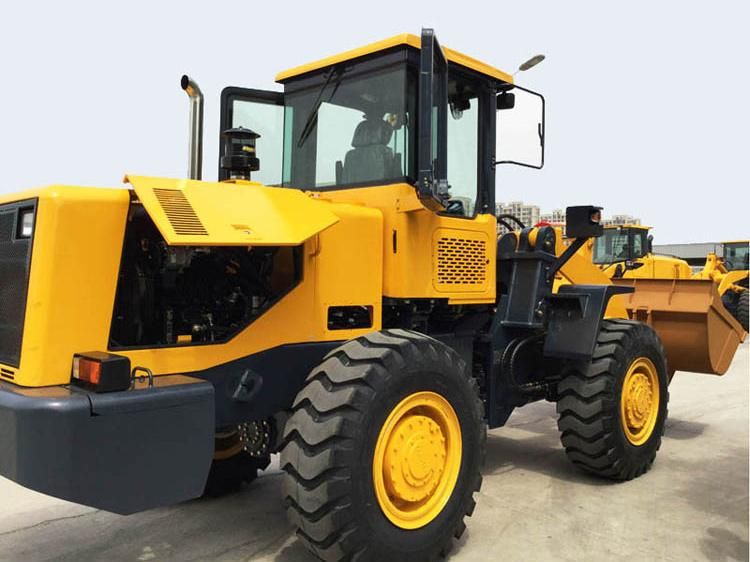

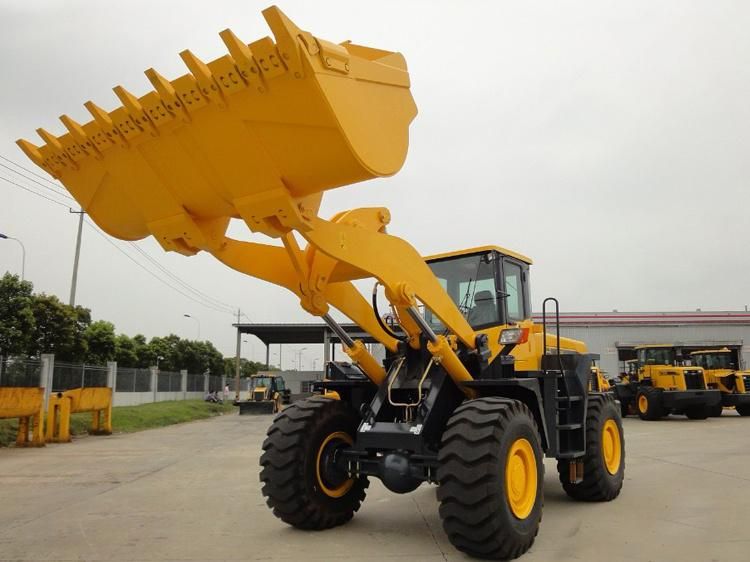

• Model NO.：CDM833
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Power：92kw
• Rated Operating Load：3000kg
• Travel Speed(Km/H)：0-21
• Operating Weight：10300kg
• Bucket Capacity (M3)：1.7
• Dumping Reaching(mm)：1090mm
• Specification：7200*2500*3180mm
• Origin：China
• HS Code：8501109190
• Production Capacity：200

NO.

DESCRIPTIONUNITSTDHigh DumpAOverall Height - Bucket Raisedmm47375080BBucket Pin Height at Max. Liftmm37104064CDump Clearance at Max. Lift ( 45°) mm29043249DReach at Max. Lift and 45° Dumpmm10951002ERack Back Angle at Carry°46.346.6FRack Back Angle at Ground°4040.9GDigging Depthmm30-4030-40HRack Back Angle at Max. Lift°50.747IDump Angle at Max. Lift°46.645JCarry Heightmm400400KGround Clearancemm345345LCenter Line of Front Axle to Hitchmm14251425MWheel Basemm28502850NOverall Lengthmm72007450ODeparture Angle°2727PHeight to Top of Cabmm31803180QOverall Width over Bucketmm25002500RMin. Turning Radius over Bucket mm61906280SMin. Turning Radius over Tiresmm56755675TSteering Angle - Left/Right°3535UWidth at Tread Centermm18501850VOverall Width over Tiresmm23202320
