• Model NO.：PC220-7
• Drive Type：Internal Combustion Drive
• Bucket Capacity：1.0~1.5m³
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：Used
• Transport Package：Container
• Specification：1*1*1
• Trademark：KOMATSU
• Origin：Japan
• Production Capacity：2000 Pieces,Year

Basic Info.

Model NO. PC220-7 Drive Type Internal Combustion Drive Bucket Capacity 1.0~1.5m³ Size Medium-Sized Certification ISO9001: 2000 Condition Used Transport Package Container Specification 1*1*1 Trademark KOMATSU Origin Japan Production Capacity 2000 Pieces/Year

Product Description

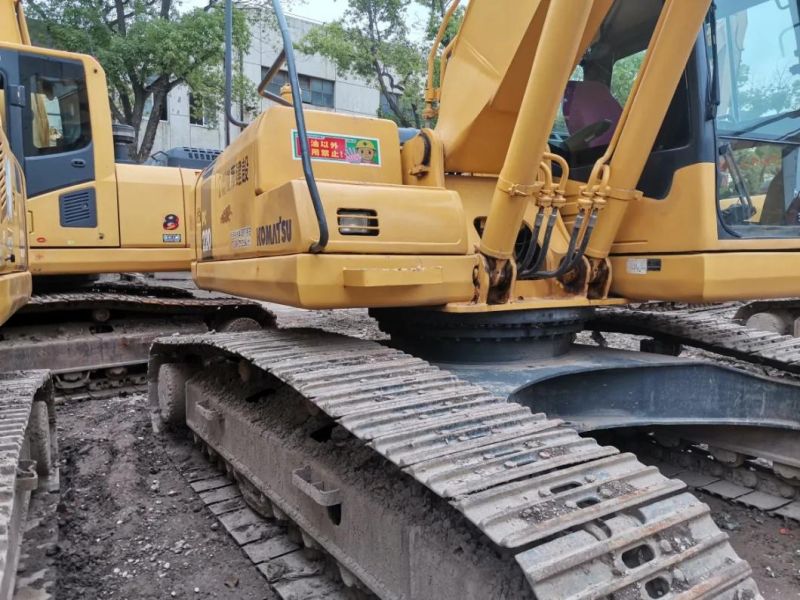

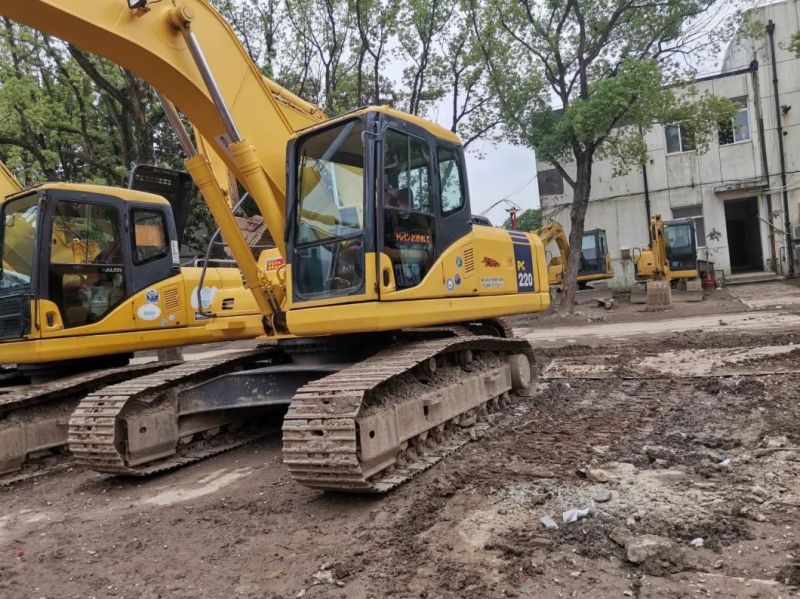

Komatsu PC220-7 excavator parameter configuration
specification
Traditional power
Manufacturer joint venture/import
Bucket backhoe
Tonnage (tons) 22
Machine working weight (kg) 22840
Bucket capacity (m³)1
Boom length (mm) 5850
Stick length (mm) 3045
performance
Rotation speed (rpm) 11.7
Walking speed (km/h) 3.1/4.2/5.5
Gradeability (%) 70/35°
Bucket digging force (kN) 172
Stick digging force (kN) 129
power system
Engine model Komatsu SAA6D102E-2
Rated power (kw/rpm) 125/2100
Displacement (L) 5.883
Number of cylinders (pcs) 6
Bore×Stroke (mm) 102×120

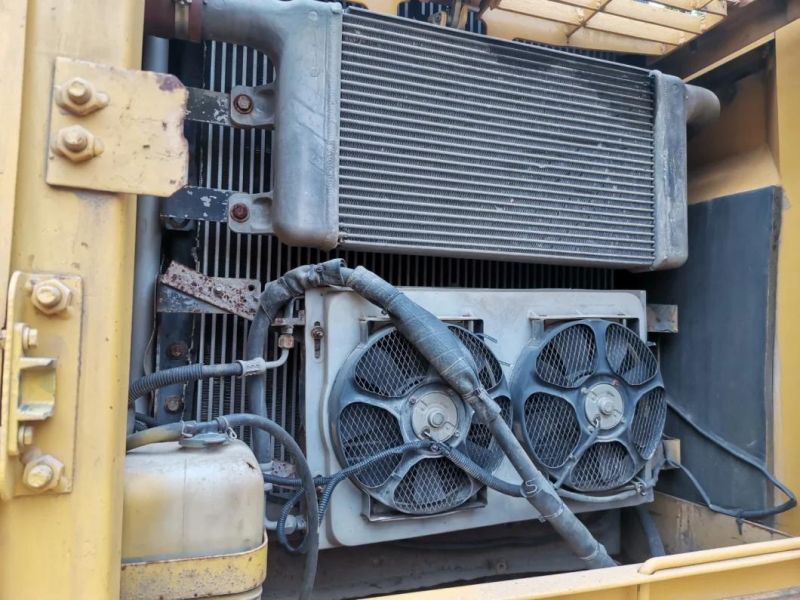

Cooling method: water cooling

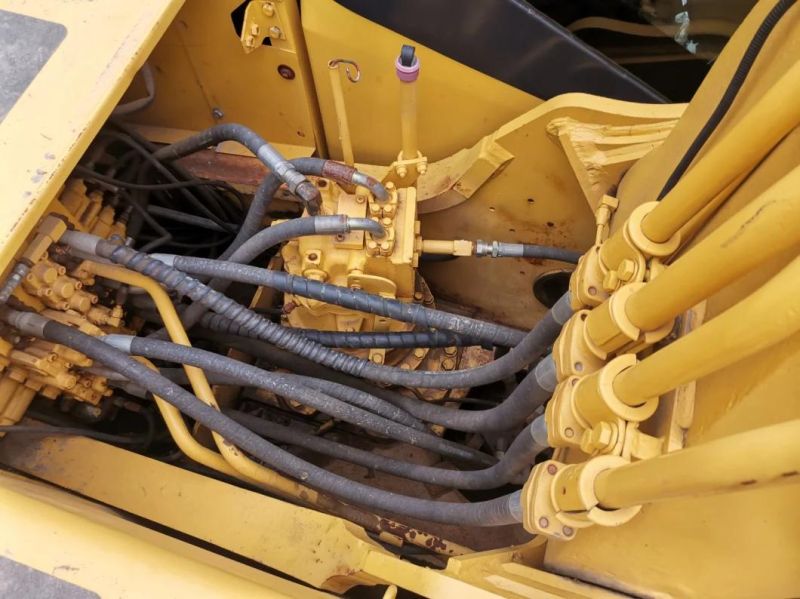

Hydraulic system
Traveling hydraulic motor type axial piston motor × 2 (with parking brake)
Swing hydraulic motor type axial piston motor×1 (with swing holding valve)
Maximum flow of main pump (l/min) 439
Walking hydraulic circuit (Mpa) 37.3
Swing hydraulic circuit (Mpa) 28.4
Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit
Boom cylinder-number×bore×stroke (mm) 130×1335×90
Stick cylinder-number × cylinder diameter × stroke (mm) 140 × 1635 × 100
Bucket cylinder-number × cylinder diameter × stroke (mm) 130 × 1020 × 90
Is the hydraulic crushing pipeline standard equipped?
Oil capacity
Fuel tank (L) 400
Hydraulic oil tank (L) 27.8
Engine oil replacement amount (L) 24
Coolant (L) 30.9
Body size
Total transport length (mm) 9865
Total transport width (mm) 2980
Total transport height (mm) 3015
Overall height of cab (mm) 2110
Track ground length (mm) 6470
Total track length (mm) 4265
Track shoe width (mm) 600
Total track width (mm) 2980
Track gauge (mm) 2380
Minimum ground clearance (mm) 440
Back end radius of gyration (mm) 2905
Scope of work
Maximum digging radius (mm) 9270
Maximum digging radius of stop surface (mm) 9070
Maximum digging depth (mm) 5825
Maximum digging height (mm) 9665
Maximum unloading height (mm) 6715
Maximum vertical digging depth (mm) 4750
Maximum effective digging depth (mm) 5825
Dozer blade lift or push depth (mm) without dozer blade
