9ton Mechanical Transmission Wheel Digger Mini Excavators Backhoe Wheeled Excavator

Shanding Machinery (Shandong) Group Co., Ltd.
  • After-sales Service：Have
  • Warranty：1 Year
  • Type：Wheel Excavator
  • Usage：Special Excavator, Marine Excavator, Mining Excavator
  • Bucket：Shovel
  • Transmission：Hydraulic Transmission

Base Info

  • Model NO.：SD90W-9-T
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：0.1~0.5m³
  • Size：Medium-Sized
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Operating Mode：Steering Wheel
  • Operating Weight：9000kg
  • Bucket Capacity：0.5cbm
  • Bucket Width：700mm (Any Size Can Be Customized)
  • Valve：Eaton Cmj8jb4n400c ( USA )
  • Walking Motor：Jk Is0291900 (Germany)
  • Cylinder：Four Cylinder, Water Cooling
  • Walking Speed：35km,H
  • Transport Package：Wooden Packing
  • Specification：5880kg
  • Trademark：SHANDING
  • Origin：Shandong, China
  • HS Code：8429521100
  • Production Capacity：10pieces Per Week

Description

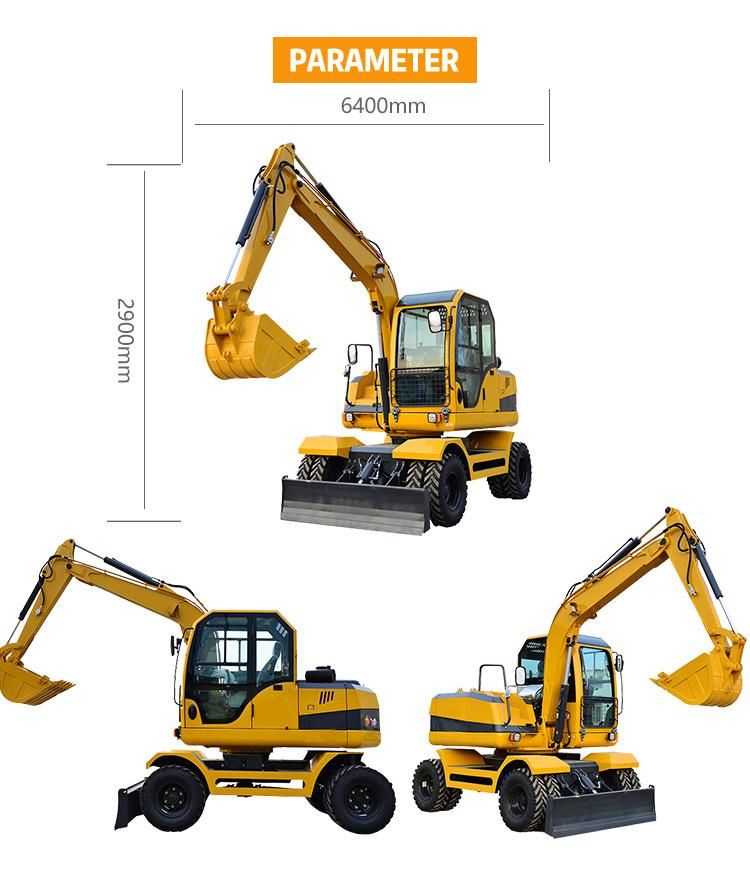

Working RangeMax.digging depth4360 mmMaximum vertical digging depth3905 mmMax.digging height6536 mmMax.digging radius6550 mmMin. radius of gyration4030 mm
9ton Mechanical Transmission Wheel Digger Mini Excavators Backhoe Wheeled Excavator



ModelSD10SSD12S(HOT)SD15D(HOT)SD20U
Total Weight760 kg1000kg1013/1035 kg2000 kg
Rated Power7.6KW8.6KW10.2kw14.7kw
EngineKoop192FKoop 192FAKoop 192FALaidong LD385
Bucket Capacity0.02 m³0.028 m³0.025 m³0.06 m³
Maximum digging distance2280 mm2950 mm3072mm3600mm
Max. Digging Depth1300 mm1650 mm1336 mm1800 mm
Max. Digging Height2350 mm2650 mm2637mm3400mm
Gradeability35°25/30°35°35°
Overall Width860 mm925mm930 mm1100-1300 mm

ModelSD17BSD25U(HOT)SD30U(HOT)SD40B
Total Weight1600 kg2500kg2870kg3650 kg
Rated Power14.8KW14.7KW14.7kw34w
Enginelaidong/yanmarperKins403d-11yanmar3Tnv88changchai490
Bucket Capacity0.06 m³0.1 m³0.075 m³0.2 m³
Maximum digging distance3600 mm4150 mm4375mm4730mm
Max. Digging Depth1950 mm2550mm2560mm3100 mm
Max. Digging Height3300 mm2530 mm3856mm4500mm
Gradeability35°35°35°35°
Overall Width860 mm925mm1540 mm1700 mm
