• Model NO.：JS205
• Drive Type：Electric Drive
• Bucket Capacity：0.9~1.02m3
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Standard Export Package
• Specification：21 Ton
• Trademark：JCB
• Origin：China
• HS Code：84295212
• Production Capacity：500units,Month

Basic Info.

Model NO. JS205 Drive Type Electric Drive Bucket Capacity 0.9~1.02m3 Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Transport Package Standard Export Package Specification 21 Ton Trademark JCB Origin China HS Code 84295212 Production Capacity 500units/Month

Product Description

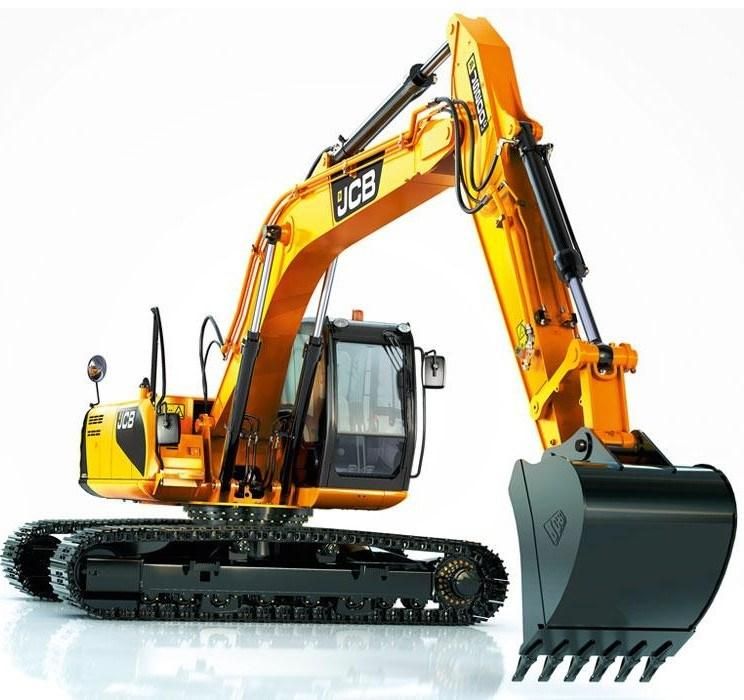

JCB JS205 Crawler Excavator
JCB JS140, JS200, JS205, JS215 Tracked Excavator

When it comes to designing excavators, JCB believes in built-in excellence. We approach our tracked excavators in typical JCB style - by striving for maximum performance, strength, comfort, efficiency and productivity.

Having been producing hydraulic excavators for over 45 years we've channelled all of our experience and expertise into dedicated factories spread across Europe, India and the Far East.

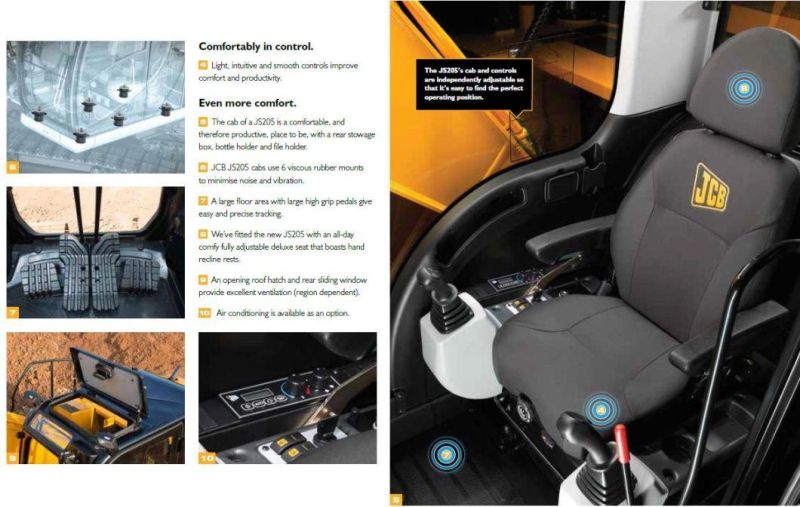

JCB believes that one of the most important principles of designing 360 excavators for Africa is to put the operator at the very heart of our design. That means making our machines as easy, fast, safe and fatigue-free as possible. In accordance with this principle, we design some of the most spacious, comfortable cabs in the business, with intuitive controls, high visibility levels, plenty of stowage areas, low noise levels and low vibration.

JS205 SC/LC Hydraulic Excavator

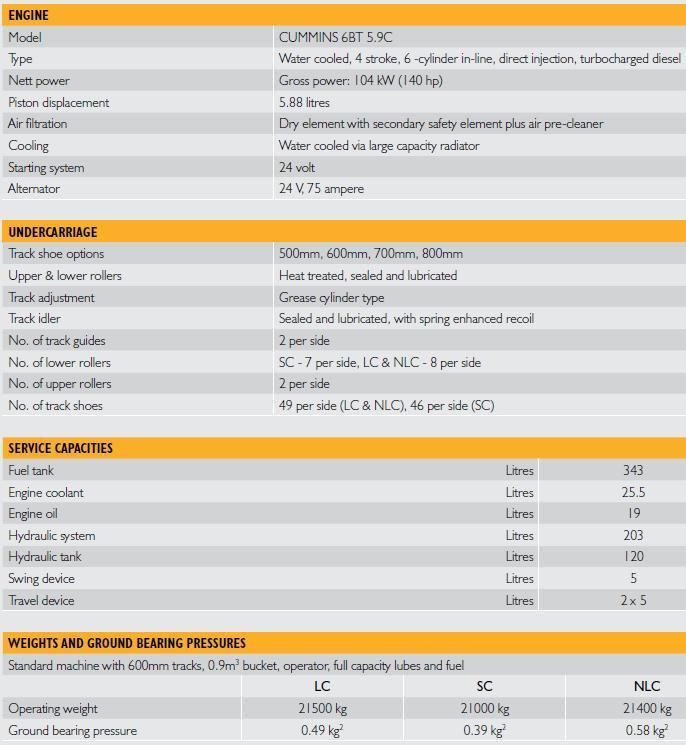

Engine Power: 104 kW (140 hp)
Water cooled, 4 stroke, 6 cylinder in line direct injection, turbocharged diesel
Bucket Capacity: 0.9 - 1.02m³
Operating Weight: 21000 - 21500kg

Boom and dipper
We've designed an all-new heavy-duty boom and dipper that's made up of bigger sections for high durability and strength.
Robust cast ends and pivot bosses make the new JS205's boom and dipper extremely strong.
Our advanced manufacturing and assembly processes produce high precision and quality assembled components.
Componentry
JCB JS205s boast the best components in the industry, including Berco running gear, Kawasaki pumps, Cummins engine and Kayaba main control valves.

Structural strength
The new JS205 features a heavy-duty X-type frame with sloped side members to stop material build-up. Our Long Carriage version has a double-plate strengthened idler area.
A closed box section revolving frame increases strength and reduces stress. It is also highly resistant to impact damage.
The JS205's high-strength rigid upper frame provides maximum durability and support.
Our stiff, durable door design gives great strength and rigidity.
We've fitted under belly guards on the lower frame to give additional protection to key components.
A damage protection plate and wear ribs on the dipper guard against external damage.


Boom length: 5.7m
Dipper length: 2.4m 3.0m

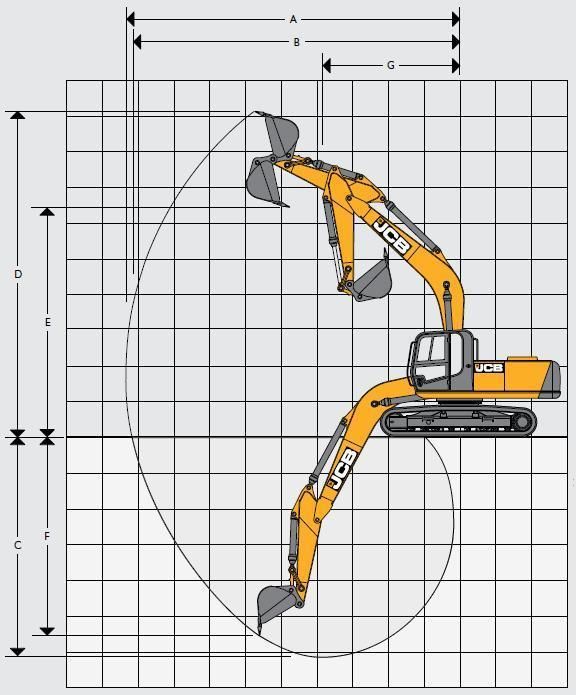

A Maximum digging reach mm 9.30 9.79 m
B Maximum digging reach (on ground) mm 9.10 9.61
C Maximum digging depth mm 5.98 6.59
D Maximum digging height mm 9.03 9.12
E Maximum dumping height mm 6.46 6.57
F Maximum vertical wall cut depth mm 5.47 6.14
G Minimum swing radius mm 3.85 3.74
Bucket rotation 183° 182°
Maximum dipper tearout kNm 114.7 96.5
Maximum bucket tearout kNm 129.5 129.5
