• Model NO.：NME15
• Drive Type：Electric Drive
• Bucket Capacity：0.03
• Certification：CE, ISO9001: 2000
• Condition：New
• Colour：Customizable
• Work Environment：Landscaping
• Operation：Very Easy
• Exterior：Beautiful
• Use：Extensive Use
• Transport Package：Container
• Specification：2900*1100*1550mm
• Trademark：Nansome
• Origin：China
• Production Capacity：10000 Pieces ,Year

Basic Info.

Model NO. NME15 Drive Type Electric Drive Bucket Capacity 0.03 Certification CE, ISO9001: 2000 Condition New Colour Customizable Work Environment Landscaping Operation Very Easy Exterior Beautiful Use Extensive Use Transport Package Container Specification 2900*1100*1550mm Trademark Nansome Origin China Production Capacity 10000 Pieces /Year

Product Description

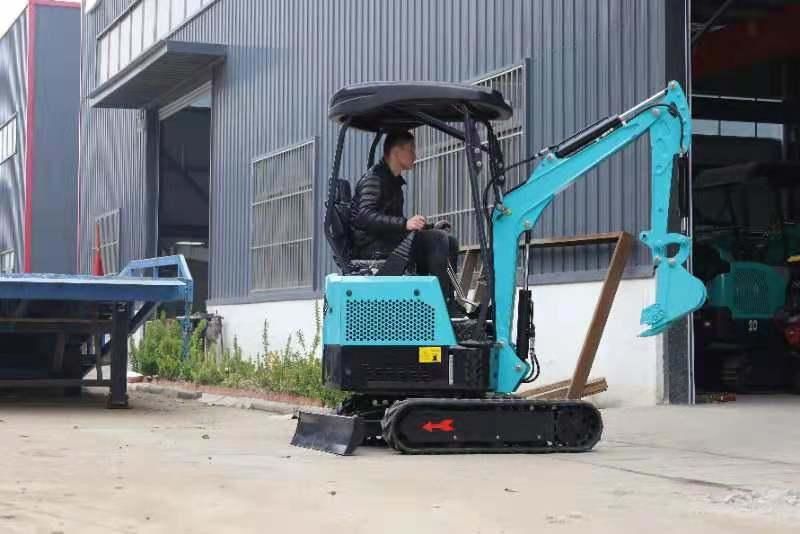

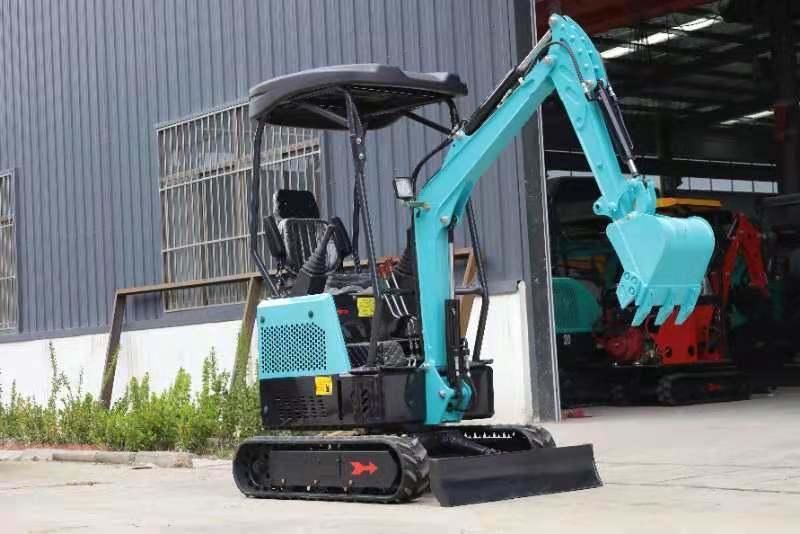

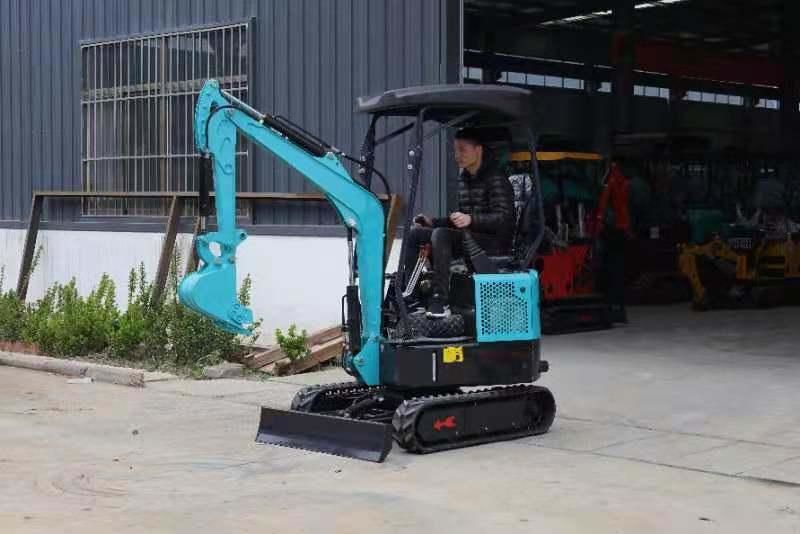

Hot selling Multifunction 3t Brand New Nansome NME15 Minitype Tailless Excavator Heavy Machinery Minitype Excavator

total measurement
Total length (during transportation) 2900mm
Overall width (during transportation/operation) 1100mm
Total height (during transportation) 1550mm
Dozer blade width (extended/retracted) 1110mm
Dozer blade height 210mm
Track center distance 740mm
Distance from the center of rotation to the tail of the track 800mm
Standard track shoe width 180mm
Minimum ground clearance 115mm
Standard width (with/without tooth) 420/400mm
Track length 1350mm
Wheel spacing 920mm

Scope of work
Maximum digging height 2850mm
Maximum unloading height 2030mm
Maximum digging depth 1600mm
Maximum vertical boom digging depth 1400mm
Maximum digging distance 3300mm
Maximum digging ground distance 3370mm
The minimum turning radius of the front section 1600mm
The minimum radius of gyration at the rear end 560mm
Maximum bulldozing height 130mm
Maximum bulldozing depth 230mm

Performance parameter
Whole machine weight 1350kg

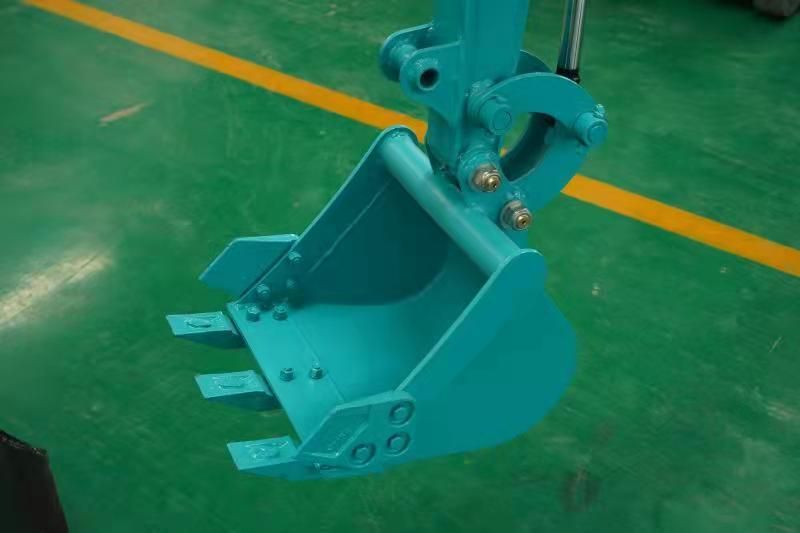

Bucket capacity 0.03m³
Engine model KUBOTA D722
Displacement 1.5L/H
Rated power 10.2kw
Walking speed (high/low) 2km/h
Rotation speed 9r/min
Swing angle 45°
Climbing ability 35°
Ground pressure 11Mpa
Bucket digging force 11kN
Fuel tank volume 15L

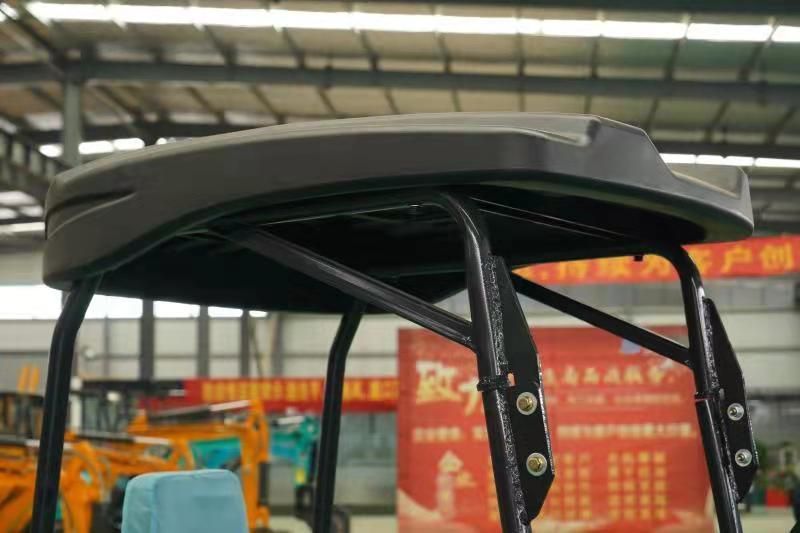

Sealed cab (removable), with warm air system, automatic telescopic chassis and deformation shovel, hydraulic pilot operation, arm deflection, new coverings, convenient operation platform, strengthened track plate, push-pull front large glass, with crushing pipeline......





Scope of use: mainly suitable for small earthwork, municipal engineering, landscaping, excavation of tap water or natural gas cable pipeline, mountain planting trees reclamation ditching, rural digging house foundation roadbed, vegetable greenhouses, farmland transformation, indoor demolition, concrete crushing and other narrow space work.
