High Operating Efficiency Mechanical Driving and Vibrating Adopts Hydraulic Walk Behind Vibratory Asphalt Mini Road Roller by Gasoline Engine or Diesel Engine

QingDao MingDingTe Machinery Equipment Co., LTD.
  • After-sales Service：Video Technical Support, Online Support
  • Warranty：One Year
  • Type：Road Roller
  • Working Method：Vibration
  • Axle：Biaxial Dual-Drum
  • Grinding Wheel Type：Light Grind

Base Info

  • Model NO.：FYL-750
  • Compaction Depth：25cm
  • Engine Type：Diesel Engine
  • Travel Speed：4.5km,H
  • Centrifugal Force：20kn
  • Certification：EPA, CE, ISO 9001:2000
  • Condition：New
  • Drive Type：Hydraulic Transmission
  • Vibration Frequency：70Hz
  • Hydraulic Oil Tank：15L
  • Gradeability：32%
  • Net Weight：510kg
  • Power：6.0HP, 9.0HP
  • Steel Wheel Size：φ560X740mm
  • Transport Package：Container Standard Packaging
  • Specification：1250mm*1200mm*1650mm
  • Trademark：Forwin
  • Origin：Shan Dong, China
  • HS Code：842941900
  • Production Capacity：5000pieces,Year

Description

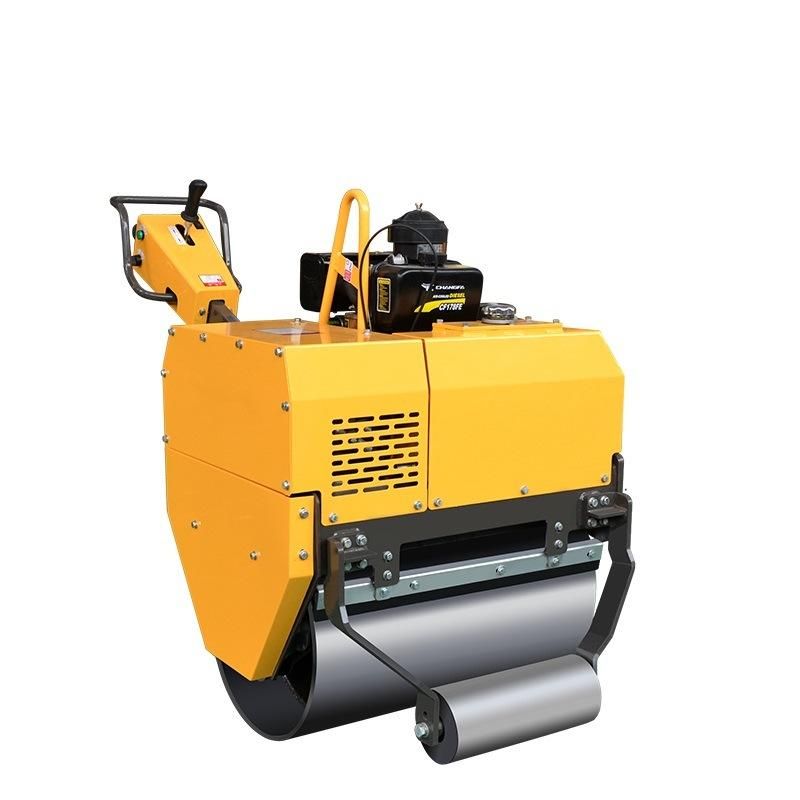

High Operating Efficiency Mechanical Driving and Vibrating Adopts Hydraulic Walk Behind Vibratory Asphalt Mini Road Roller by Gasoline Engine or Diesel EngineFYL-750 is 500kg Handheld Roller Compactor with 2 ton vibration weight.
Adopts full hydraulic transmission, infinitely variable speed, the hydraulic pump uses USA made Danfoss.
Hydraulic motor driving;
Adopts electromagnetic clutch, the roller vibrating by button control, very easy to operate.
The engine can choose to use diesel engine or Honda gasoline engine.FYL-750Walk Speed0-4.5km/hWater Tank20LGradeability32%Hydraulic Oil Tank15LDrive TypeHydraulic TransmissionEngine ModelAir Cooled Diesel CF178/ Honda gasoline GX270Vibration ControlElectromagnetic Clutch, Mechnical VibrationPower6.0HP/ 9.0HPStatic Linear Load66N/cmSteel Wheel Sizeφ560X740mmNominal Amplitude 0.5mmPackage Size1250X1200X1650mmVibration Frequency 70HZNet Weight510kgExciting Force20KNStarting ModeElectricHOT SALE             Model No.PhotoTechnical SpecificationFeaturesEngine TypeFYL-880
(1000kg)
High Operating Efficiency Mechanical Driving and Vibrating Adopts Hydraulic Walk Behind Vibratory Asphalt Mini Road Roller by Gasoline Engine or Diesel EngineWalk speed:0-5km/h
Gradeability:30%
Drive type:hydraulic transmission
Vibration Control: Electromagnetic Clutch
Vibration frequency:70Hz
Exciting force:25KN
Water tank:60L
Hydraulic oil tank:19L
Engine type:Air-cooled diesel engine CF186
Power:9HP
Starting Mode:Electric
Steel drum size:φ540X740mm,
                            φ540X800mm
Net weight:1000kg
Size: 1880X885X2140mm1). Full hydraulic system, CVT speed;
2). Double drums hydraulic driving;
3). Hydraulic turning;
4). Front drum mechanical vibrating.
======================================
* Hydraulic pump brand: Danfoss (USA)
*Hydraulic driving motor brand: Danfoss (USA)
*Steering gear brand: Eaton (USA)Air-cooled diesel engine CF186FYL-880CC
(1000kg)High Operating Efficiency Mechanical Driving and Vibrating Adopts Hydraulic Walk Behind Vibratory Asphalt Mini Road Roller by Gasoline Engine or Diesel Engine Walk speed:0-5km/h
Gradeability:30%
Drive type:hydraulic transmission
Vibration Control: Electromagnetic Clutch
Vibration frequency:70Hz
Exciting force:25KN
Water tank:60L
Hydraulic oil tank:19L
Engine type: Air-cooled diesel engine CF186
Power:9HP
Starting Mode:Electric
Steel drum size:φ540X740mm,
                          φ540X800mm
Net weight:1000kg
Size: 1880X885X2140mm1). Full hydraulic system, CVT speed;
2). Double drums hydraulic driving;
3). Hydraulic turning;
4). Front drum mechanical vibrating.
======================================
* Hydraulic pump brand: TOMIW (China)
*Hydraulic driving motor brand:Zhenjiang (China)
*Steering gear brand: Eaton (USA)Air-cooled diesel engine CF186FYL-860
(800kg)High Operating Efficiency Mechanical Driving and Vibrating Adopts Hydraulic Walk Behind Vibratory Asphalt Mini Road Roller by Gasoline Engine or Diesel Engine Walk speed:0-5km/h
Gradeability:30%
Drive type:Full hydraulic drive
Vibration type: Electromagnetic Clutch
Vibration frequency:70Hz
Exciting force:20KN
Water tank:20L
Hydraulic oil tank:19L
Engine type: Air-cooled diesel engine CF186
Power:9HP
Starting mode:Electric
Steel drum size:φ540X740mm,
                          φ425X675mm
Net weight:800kg
Size:1724mmX860mmX2056mm1). Full hydraulic system, CVT speed;
2). Singel drum hydraulic driving;
3). Mechanical turning;
4). Front drum mechanical vibrating.
======================================
* Hydraulic pump brand: Danfoss (USA)
*Hydraulic driving motor brand: Zhenjiang (China)Air-cooled diesel engine CF186FYL-855
(700kg)High Operating Efficiency Mechanical Driving and Vibrating Adopts Hydraulic Walk Behind Vibratory Asphalt Mini Road Roller by Gasoline Engine or Diesel Engine Walk speed:0-5km/h
Climbing capacity:30%
Drive type:Hydralic Drive
Vibration Control: Electromagnetic Clutch
Static linear load:55N/cm
Vibration frequency:70HZ
Exciting force:20KN
Water tank:15L
Hydraulic oil tank:5L
Engine type:Air cooled diesel CF178
Power:6HP
Starting Mode:Hand and Electric
Steel Wheel Size:φ560X700mm,
                            φ425X500mm
Net weight:700kg
Size:1695X887X1068mm1). Full hydraulic system, CVT speed;
2). Singel drum hydraulic driving;
3). Mechanical turning;
4). Front drum mechanical vibrating.
===============================
* Hydraulic pump brand: Danfoss (USA)
*Hydraulic driving motor brand: Zhenjiang (China)Air Cooled Diesel CF178FYL-S600C
(550kg)High Operating Efficiency Mechanical Driving and Vibrating Adopts Hydraulic Walk Behind Vibratory Asphalt Mini Road Roller by Gasoline Engine or Diesel EngineWalk speed:0-4km/h
Climbing capacity:30%
Drive type:Hydraulic Station
Vibration Control: Automatic Clutch
Static linear load:53N/cm
Vibration frequency:70HZ
Exciting force:20KN
Water tank:20L
Hydraulic oil tank:21L
Engine type:Air Cooled Diesel CF178
Power:6HP
Starting Mode:Hand and Electric
Steel Wheel Size:φ425X600mmX2
Net weight:550kg
Size:1250X795X1550mm1). Use hydraulic station;
2). Double drums mechanical driving;
3). Double drums mechanical vibrating
================================
* Hydraulic pump brand: SDH (China)
*Hydraulic motor brand: LIKE (China)Air Cooled Diesel CF178FYL-600C
(325kg)High Operating Efficiency Mechanical Driving and Vibrating Adopts Hydraulic Walk Behind Vibratory Asphalt Mini Road Roller by Gasoline Engine or Diesel EngineWalk speed:0-3km/h
Climbing capacity:30%
Drive type:Hydraulic Station
Vibration Control: Automatic Clutch
Static linear load:40N/cm
Vibration frequency:70HZ
Exciting force:15KN
Water tank:17L
Hydraulic oil tank:19L
Engine type:Air Cooled Diesel CF173
Power:5HP
Starting Mode:Hand and Electric
Steel Wheel Size:φ425X600mm
Net weight:325kg
Size:1140X774X1145mm1). Use hydraulic station;
2). Mechanical driving;
3). Mechanical vibrating
4). Mechanical turning.
================================
* Hydraulic pump brand: Changgong (China)
*Hydraulic motor brand: LIKE (China)Air Cooled Diesel CF173
