• Model NO.：JSIEBC-60
• Vibrating Amplitude：Without
• Certification：ISO9001: 2000
• Condition：New
• Color：White
• Transport Package：Nude Packing
• Specification：8450x3050x3860mm
• Trademark：JSIE
• Origin：China
• HS Code：8705400000
• Production Capacity：1000units,Year

Basic Info.

Model NO. JSIEBC-60 Vibrating Amplitude Without Certification ISO9001: 2000 Condition New Color White Transport Package Nude Packing Specification 8450x3050x3860mm Trademark JSIE Origin China HS Code 8705400000 Production Capacity 1000units/Year

Product Description

Data of complete
Overall dimension(LxWxH):8450x3050x3860mm
Wheelbase:2850mm
Curb weight:12520kg
Drive form: Torque converter
Top speed.: 40km/h
Maximum gradeability:30°
Minimum turning radius;4800mm
Minimum ground clearance:350mm
.
Engine
Model: Weichai daoizz 6105 pressurized
Rated power:92kw

Transmission case
Model: ZL-315 power shift transmission
Gear: 4 forward 4 back
Conventional parameters
Equipment model: JSIEBC-60

Maintain the amount of annotation
Fuel tank:370L
Total hydraulic system capacity : 278L
Oil: 16L

Parameters of hydraulic system
Reducer: KY07-5-J
Pump:Parker pump
Motor:HAA2FM56/ 61W-VTD527

Water supply system parameters
Water tank capacity: 1465L
Water supply mode: time relay

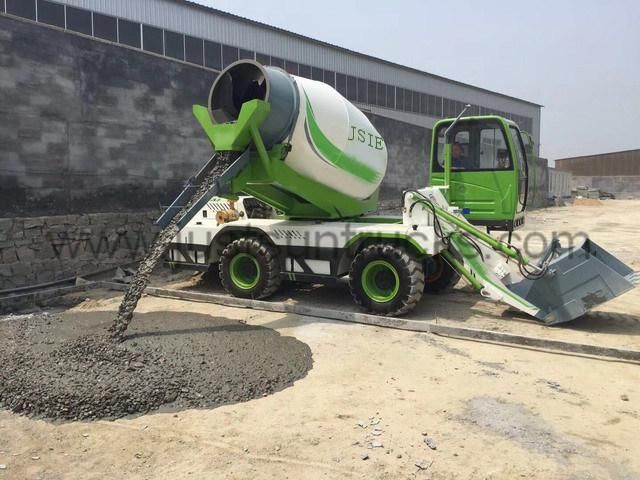

Stiring and unloading
The double cone roller has a double helical agitating screw and a convex bottom
Dum geometry capacity .9000L Drum rotation speed:.16.5 pm Concrete yield. 6.5m³ 1 can
The reaction frame mounted on the heavy duty' spherical saddle can be hydraulically rotated by 290 and automatically locked by a hydraulic brake Drum rotation is achieved via a gear pump and a plunger hydraulic motor in an open circuit with a manual electrical valve in the operator's room and at the rear of the mixer. The drum rises to a horizontal position through two double acting jacks. The unloading chute is tilted by manually adjustable handle and can be rotated by 90",but cannot be synchronized with the churning drum tilting operation, Removable chutes ensure unloading directly through the hopper, Two chute extensions are provided as standard.
