• Model NO.：bulldozer
• Condition：New
• Color：Yellow
• Transport Package：Roro
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：1000PCS,Year

EngineTypeCumminsK19-C525  in-line,water cooled ,4-cycle,  direct injection,turbo charged Rated power310kw/1800rpmCylinder number-bore x stroke6- 150 x150mm(bore x stroke)Piston displacement15.91LUndercarriage systemTypeK type elastic suspended structure, connection with frame pivotCarry rollers2 each sideTrack rollers7each sideTrack typeLink master,seal,lubricated typeWidth of track shoes610Pitch260.35mmRipper  (OPTIONAL)Ripper typeSingle-shank ripperRipping depth of ripper1400mmLifting height of ripper1130mmPower transmitting systemTorque converter3-element, 1 stage, 1 phaseTransmissionPlanetary gear,multi-disc clutch,hydraulically connected, forced lubricationMain driveSpiral bevel gear, splash lubricationSteering clutchWet, Multi-disc, spring loaded, hydraulic separated,hydraulic controlSteering brakeWet, floating band , hydraulic controlFinal drive1-stage speed reduction of spur gear, splash lubricationBlade blade type Semi-U bladeDozing capacity(m3)16Blade  height x width(mm)1875 x 4315Max. Drop below ground(mm)700Max. Tilt adjustment(mm)1545Travel speed Gear1st2nd3rdFoward(km/h)0~3.70~6.80~12.2Reverse(km/h)0~4.40~8.20~14.8

Features & Applications
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the rapid and flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructionsfor roads, farms, water conservancy projects, municipal projects, and energy projects.

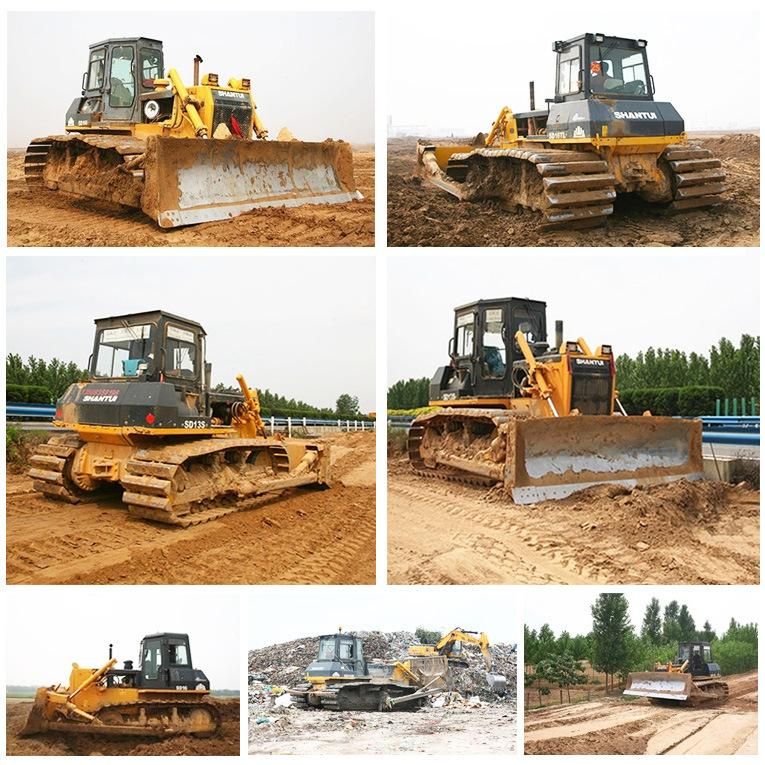

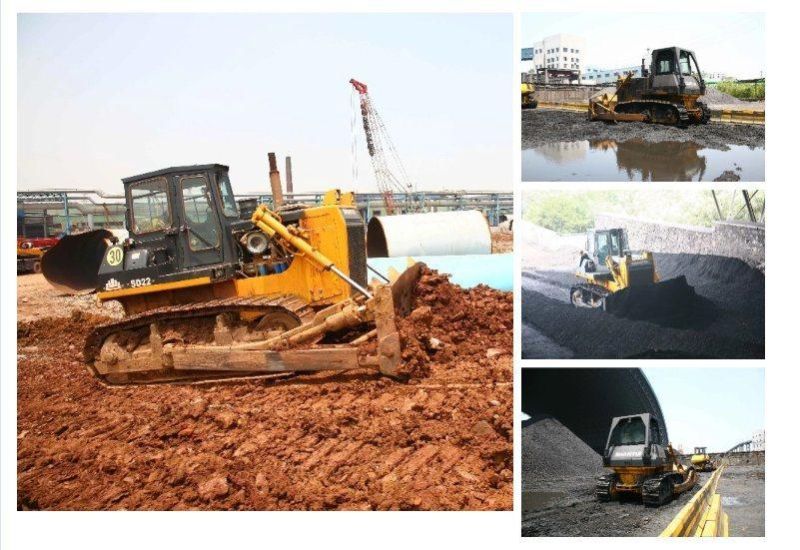

Working sites of bulldozer


If you want to get more details, pls feel free to contact us.
